Pair thimbles with cables by matching their base materials: stainless steel thimbles are designed for use with stainless steel cables, while zinc-plated galvanized steel thimbles should be paired with galvanized cables.

For faster installation, gently spread the thimble open—this lets it slide over the ¼" thick wire of large eyebolts and screw eyes. Be sure to close the thimble securely once installation is complete.

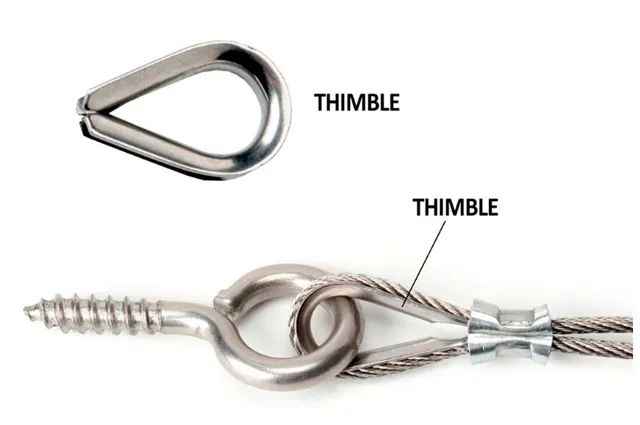

When creating loop connections, start by inserting the thimble into the eyelets of the eyebolt or screw eye. Next, loop the cable around the thimble and feed it back through the ferrules or rope clamps to secure the connection.

For a proper fit, the thimble's size must align exactly with the diameter of your wire rope or steel cable. For example, if you have a 1/4" uncoated galvanized cable, pick a 1/4" thimble—that keeps the connection secure and reliable.

Sizing vinyl-coated cable is a bit tricky, because manufacturers might measure diameters differently. If you strip the vinyl coating off the cable, size the thimble the same way as you would for uncoated cable. For example, if your cable is 3/16" but the vinyl makes it 1/4" thick, you still need a 3/16" thimble for the right fit.

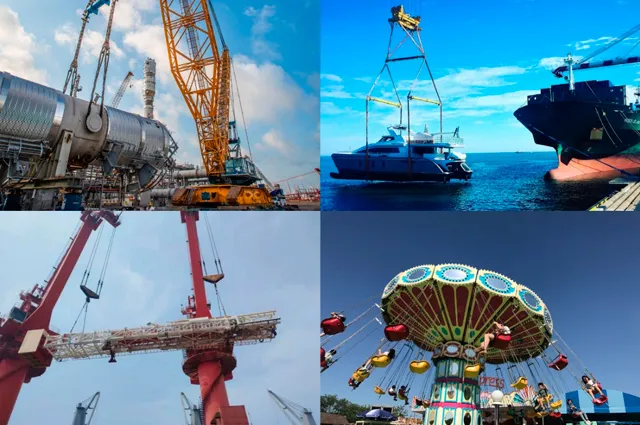

Wire rope thimbles serve several key purposes, focused on safeguarding wire ropes. You'll find them used in various settings:

Industrial rigging: Helping create long-lasting connections for heavy lifting gear and construction equipment.

Marine environments: Preventing rope damage in saltwater situations, such as boating and dock arrangements.

Construction projects: Reinforcing cable eyes used with cranes, hoists, and building installations.

Recreational setups: Adding safety and durability to zip lines, adventure parks, and other outdoor activities.

By shielding the rope loop from wear and distortion, wire rope thimbles maintain strength and extend lifespan in both heavy-duty and light-duty uses.
