CLGR® Heavy Duty Stub-End Thimble K2 US Fed. Spec.

Name: CLGR® Heavy Duty Stub-End Thimble K2 US Fed. Spec.
Brand: CLGR®

Heavy Duty Stub-End Thimble K2, also known as Wire Rope Thimble, which is manufactured from superior mild steel and used to protect steel wire rope, fiber rope or synthetic rope.

CLGR® Stub-End Thimble K2 helps maintain the shape and integrity of the looped end of the wire rope, preventing it from deforming or flattening under load.

With high performance in the environments of outdoor or marine and fishing.

Meanwhile, depending on the type of steel wire rope used, we have multiple types of sleeves for you to choose from.

All the wire rope thimble has passed the international industry certification standards, and you can be completely assured of quality.

To Get A Quote >

clgr heavy duty stub end thimble k2 us fed spec manufacturers

clgr heavy duty stub end thimble k2 us fed spec suppliers

clgr heavy duty stub end thimble k2 us fed spec factory

Overview of CLGR® Heavy Duty Stub-End Thimble K2 -US Fed. Spec.

Brand	CLGR®
Standard	Type K2
Size wire	2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", 7", 8", 9", 10", 11", 12", 14", 17", 19", 22", 24", 26"
Material	Super Mild Steel
Surface Treatment	Hot Dipped Galvanized, Electric Galvanized
Processing	Forged, Stamping
Origin	China

Specifications of CLGR® Heavy Duty Stub-End Thimble K2 -US Fed. Spec.

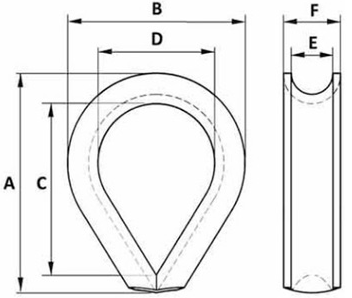

CLGR® Heavy Duty Stub-End Thimble K2 -US Fed. Spec.

Part No.	A (inch)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Weight (kg/100)
CRTK22	2"	42	35	22	9	14	8.2
CRTK22 - 1/2	2 - 1/2"	50	45	30	11	16	10
CRTK23	3"	50	55	35	13	18	20
CRTK23 - 1/2	3 - 1/2"	73	65	45	15	20	26
CRTK24	4"	75	75	50	17	22	36
CRTK24 - 1/2	4 - 1/2"	85	80	53	19	25	50
CRTK25	5"	100	90	60	21	29	60
CRTK25 - 1/2	5 - 1/2"	110	95	65	23	33	70
CRTK26	6"	115	120	70	25	34	100
CRTK27	7"	135	140	80	30	38	160
CRTK28	8"	155	160	100	33	44	180
CRTK29	9"	175	185	115	38	49	350
CRTK210	10"	190	195	120	41	52	440
CRTK211	11"	210	215	130	46	60	520
CRTK212	12"	245	250	145	52	65	730
CRTK214	14"	260	290	155	60	72	1100
CRTK217	17"	310	370	190	70	84	1600
CRTK219	19"	350	420	230	81	119	2750
CRTK222	22"	395	480	255	92	130	3650
CRTK224	24"	430	540	280	105	145	4400
CRTK226	26"	450	580	285	120	155	4700
