CLGR® Galvanized Wire Rope Thimble DIN 6899 A

Name: CLGR® Galvanized Wire Rope Thimble DIN 6899 A
Brand: CLGR®

CLGR® Galvanized Wire Rope Thimble DIN 6899 A Type, also known as Galvanised Steel Wire Rope Eyelet Thimbles and Galvanised Steel Wire Rope Thimble Eye.

Wire Rope Thimble is manufactured from superior carbon steel. It is a reliable choice for marine, industrial, and architectural applications.

Wire Rope Thimble is designed to provide basic reinforcement and protection for wire rope loops in low-load applications.

Their purpose is to prevent wire rope loops from deforming or wearing at the contact point, which helps keep its shape when in use and ensures that the wire rope lasts longer.

Special specifications can also be produced according to drawings and samples.

All the CLGR wire rope Thimble have passed the international industry certification standards, and you can be completely assured of quality.

To Get A Quote >

clgr galvanized wire rope thimble din 6899 a price

clgr galvanized wire rope thimble din 6899 a cost

Overview of CLGR® Galvanized Wire Rope Thimble DIN 6899 A

Brand	CLGR®
Standard	DIN6899A
Size wire	2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 28mm
Material	Super Carbon Steel
Surface Treatment	Electric Galvanized
Processing	Stamping

Specifications of CLGR® Galvanized Wire Rope Thimble DIN 6899 A

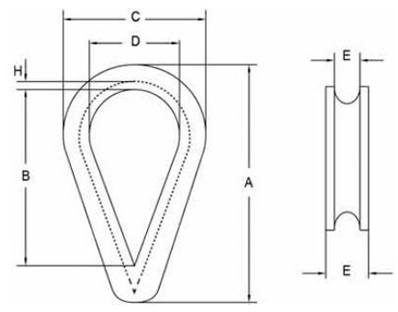

Drawing CLGR® Galvanized Wire Rope Thimble DIN 6899 A

Part No.	Size (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H	WT/100Pcs (kgs)
CRB899A2.5	2.5	28	21.5	16	10	5	3	1	0.14
CRB899A03	3	30	23.5	17	11	5.5	3.5	1	0.35
CRB899A04	4	34	26.5	19	12	6	4	1	0.42
CRB899A05	5	36	28	20	13	7	5	1	0.8
CRB899A06	6	38	30	22	14	8	6	1	0.85
CRB899A07	7	43	33	24	15	9	7	1.2	1.1
CRB899A08	8	46	35	26	16	10	8	1.2	1.7
CRB899A09	9	50	39	29	18	11	9	1.2	2.1
CRB899A10	10	56	43	32	20	13	10	1.5	3.5
CRB899A11	11	63	47.5	36	22	14	11	1.5	3.7
CRB899A12	12	68	51.5	40	24	15	12	1.5	5.25
CRB899A13	13	75	56.5	44	26	17	13	2	7.25
CRB899A14	14	82	61	48	28	18	14	2	8.33
CRB899A16	16	91	69.5	54	32	21	16.5	2.5	12.3
CRB899A18	18	102	78	59	35	24	18	3	18.5
CRB899A20	20	114	86.5	68	40	28	20	4	31.5
CRB899A22	22	126	95	76	44	30	22	4	236.5
CRB899A24	24	135	103.5	84	48	32	24	4	41.7
CRB899A28	28	162	120.5	100	56	38	28	5	72.1
