Galvanized K3-B Fibre Thimble Reinforced, is manufactured using superior grade raw material as per international qualitative standards.
The thimble helps maintain the shape and integrity of the looped end of the wire rope, preventing it from becoming distorted or flattened under load. With high performance in the environments of outdoor or marine and fishing.
Special specifications can also be produced according to drawings and samples.
We are a highly professional Chinese manufacturer and supplier of rigging products. If you are interested, please feel free to contact us.
Brand | CLGR® |
Type | Type K3-B |
Size wire | 6″, 7″, 8″, 9″, 10″, 11″ |
Material | Super Carbon Steel |
Surface Treatment | Hot Dipped Galvanized |
Processing | Stamping, Welding |
Note | NOT TO BE USED FOR LIFTING |

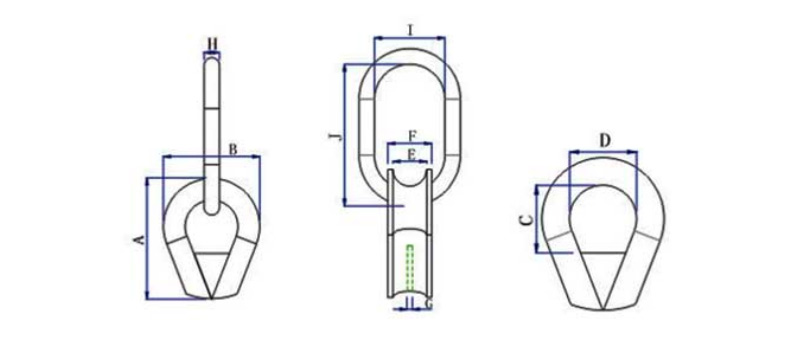

Part No. | A (inch) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | H (mm) | J (mm) | I (mm) |
CRTK3RF06 | 6" | 120 | 65 | 75 | 48 | 7 | 22 | 180 | 100 |
CRTK3RF07 | 7" | 140 | 90 | 85 | 56 | 7 | 25 | 180 | 100 |
CRTK3RF08 | 8" | 160 | 95 | 105 | 64 | 8 | 28 | 270 | 140 |
CRTK3RF09 | 9" | 180 | 100 | 110 | 72 | 10 | 28 | 270 | 140 |
CRTK3RF10 | 10" | 200 | 115 | 120 | 80 | 10 | 32 | 270 | 140 |
CRTK3RF11 | 11" | 220 | 135 | 145 | 88 | 12 | 35 | 285 | 155 |
