CLGR® Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec.

Name: CLGR® Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec.
Brand: CLGR®

CLGR® Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec., also known as extra heavy wire rope thimble.

Wire Rope Thimble G-414 is a heavy-duty cable thimble which is manufactured from superior mild steel.

Heavy Duty Wire Rope Thimbles are designed to provide basic reinforcement and protection for wire rope loops in low-load applications.

The purpose of the wire rope thimbles for sale is to prevent wire rope loops from deforming or wearing at the contact point, which helps keep its shape when in use and ensures that the wire rope lasts longer.

CLGR Heavy Duty Wire Rope Thimbles are easy to install and very durable. These wire rope thimbles for sale can be complemented with wire rope clips and fiber rope.

Meanwhile, according to different used wire ropes, CLGR® has multiple types of thimbles for you to choose from.

To Get A Quote >

13 CLGR® Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec.

clgr heavy duty wire rope thimble galvanized us fed spec suppliers

clgr heavy duty wire rope thimble galvanized us fed spec factory

clgr heavy duty wire rope thimble galvanized us fed spec exporter

clgr heavy duty wire rope thimble galvanized us fed spec manufacturers

 

Overview of CLGR® Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec.

Brand	CLGR®
Standard	Conform to U.S. Federal Specification Heavy Duty (Meets or exceeds ASTM A148 & ASME B30.26 requirements.)
Type	G-414
Size wire	1/4", 5/16", 3/8", 7/16", 1/2"-9/16", 5/8", 3/4", 7/8", 1", 1-1/8"-1-1/4", 1-1/4"-1-3/8", 1-3/8"-1-1/2", 5/8", 3/4", 1-7/8"-2", 2-1/4"
Material	Super Mild Steel
Surface Treatment	Electric Galvanized, Hot Dipped Galvanized, Powder Coated
Processing	Stamping
Origin	China

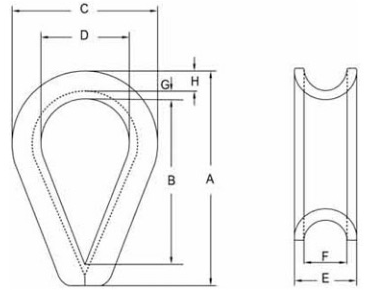

Specifications of CLGR® Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec.

Part No.	Rope Dia. (in.)	Weight/100 (lbs)	Dimensions (in.)
Part No.	Rope Dia. (in.)	Weight/100 (lbs)	A	B	C	D	E	F	G	H
CRG414G1/4	1/4	6.5	2.19	1.62	1.5	0.88	0.41	0.28	0.06	0.25
CRG414G5/16	5/16	11.8	2.5	1.88	1.81	1.06	0.5	0.34	0.08	0.3
CRG414G3/8	3/8	21.6	2.88	2.12	2.12	1.12	0.63	0.41	0.11	0.39
CRG414G7/16	7/16	34.7	3.25	2.38	2.38	1.25	0.72	0.47	0.12	0.45
CRG414G1/2	1/2-9/16	51	3.62	2.75	2.75	1.5	0.89	0.59	0.15	0.48
CRG414G5/8	5/8	75.7	4.25	3.25	3.12	1.75	1	0.66	0.16	0.53
CRG414G3/4	3/4	158.1	5	3.75	3.81	2	1.22	0.78	0.22	0.69
CRG414G7/8	7/8	177.8	5.5	4.25	4.25	2.25	1.38	0.94	0.22	0.78
CRG414G1/1	1	313.9	6.12	4.5	4.75	2.5	1.56	1.06	0.25	0.88
CRG414G1-1/8	1-1/8-1-1/4	400	7	5.12	5.88	2.88	1.81	1.31	0.25	1.25
CRG414G1-1/4	1-1/4-1-3/8	811	9.08	6.5	6.81	3.5	2.19	1.44	0.37	1.29
CRG414G1-3/8	1-3/8-1-1/2	1294.8	9	6.25	7.12	3.5	2.56	1.56	0.5	1.31
CRG414G5/8	1-5/8	1700	11.25	8	8.12	4	2.72	1.72	0.5	1.38
CRG414G3/4	1-3/4	1775	12.19	9	8.5	4.5	2.84	1.84	0.5	1.5
CRG414G1-7/8	1-7/8-2	2775	15.12	12	10.38	6	3.09	2.09	0.5	1.69
CRG414G2-1/4	2-1/4	3950	17.5	14	11.88	7	3.62	2.38	0.62	1.82

Bulk Photos of Heavy Duty Wire Rope Thimble Galvanized US Fed. Spec.
