CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B US Fed. Spec.

Name: CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B US Fed. Spec.
Brand: CLGR®

CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B, also known as Type K2-B Reinforced Thimbles with Gusset, K2-B Heavy Duty Stub-End Thimble Reinforced.

The wire rope thimbles for sale play a crucial role in preserving the shape and structural integrity of the wire rope’s looped end. Wire rope thimbles for sale stop the loop from getting distorted or flattened when under load.

These rope thimbles for sale are suitable for use with synthetic ropes and perform well in outdoor, marine, and fishing environments.

All the wire rope thimbles for sale have met international industry certification standards, so you can have full confidence in their quality.

The range of the rope thimbles for sale from CLGR® is available in standard as well as customized sizes.

To Get A Quote >

18 CLGR® Heavy Duty Stub end Wire Rope Thimble with Gusset K2 B US Fed. Spec.

clgr heavy duty stub end wire rope thimble with gusset k2 b us fed spec suppliers

clgr heavy duty stub end wire rope thimble with gusset k2 b us fed spec manufacturers

clgr heavy duty stub end wire rope thimble with gusset k2 b us fed spec factory

 

Overview of CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B US Fed. Spec.

Brand	CLGR®
Size wire	4", 4-1/2", 5", 5-1/2", 6", 7", 8", 9", 10", 11", 12", 14", 17", 19", 22", 24", 26"
Material	Super Mild Steel
Surface Treatment	Hot Dipped Galvanized, Electric Galvanized
Processing	Forged, Stamping
More information	Suitable for wire rope; Non-standard sizes or custom products available on request.

Specifications of CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B US Fed. Spec.

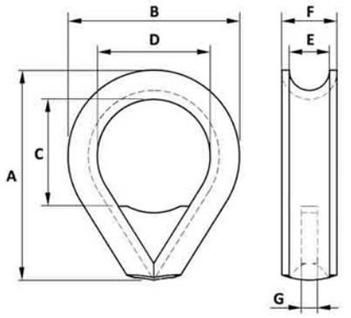

CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B US Fed. Spec.CLGR® Heavy Duty Stub-end Wire Rope Thimble with Gusset K2-B US Fed. Spec.

Part No.	A (Inch)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Weight (kg/100)
CRTK2B4	4"	75	50	50	17	22	6	40
CRTK2B4-1/2	4-1/2"	85	50	53	19	25	6	50
CRTK2B5	5"	100	60	60	21	29	8	80
CRTK2B5-1/2	5-1/2"	110	60	65	23	33	8	90
CRTK2B6	6"	115	70	70	25	34	8	100
CRTK2B7	7"	135	75	80	30	38	10	170
CRTK2B8	8"	155	80	100	33	44	10	250
CRTK2B9	9"	175	110	115	38	49	10	400
CRTK2B10	10"	190	120	120	41	52	15	450
CRTK2B11	11"	210	120	130	46	60	15	700
CRTK2B12	12"	245	140	145	52	65	15	830
CRTK2B14	14"	260	155	155	60	72	20	1250
CRTK2B17	17"	310	200	190	70	84	20	1800
CRTK2B19	19"	350	235	230	2	119	20	3050
CRTK2B22	22"	395	240	255	92	130	20	4050
CRTK2B24	24"	430	275	280	105	145	25	4950
CRTK2B26	26"	450	295	285	120	155	30	5400
