CLGR® Galvanised Wire Rope Thimble AS1138 – Aus Type

Name: CLGR® Galvanised Wire Rope Thimble AS1138 – Aus Type
Brand: CLGR®

CLGR® Galvanised Wire Rope Thimble conform to AS1138 standard.

CLGR® Wire Rope Thimbles AS1138 Galvanised Steel are the reinforcement that provides structure to the end loop of a multistranded wire (stainless or galvanised steel wire rope).

When it is secured, the force of the bearing point is evenly distributed along the length of the thimble and minimizes wear and stretch on the wire cable.

This kind of rope thimbles for sale prevents the wire rope pinching and fraying at the eye which helps keep its shape when in use and ensures that the wire rope lasts longer.

The rope thimbles for sale work with hydraulically and mechanically pressed ferrules.

To Get A Quote >

23 CLGR® Galvanised Wire Rope Thimble AS1138 – Aus Type

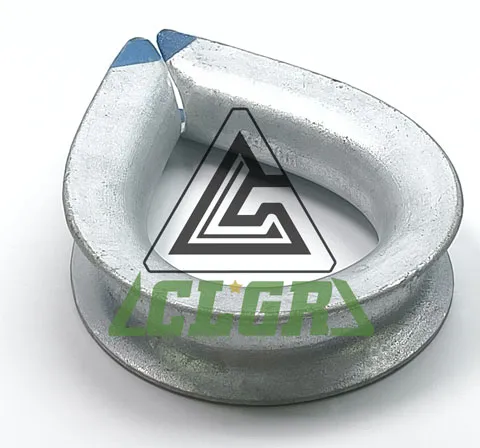

clgr galvanised wire rope thimble as1138 aus type suppliers

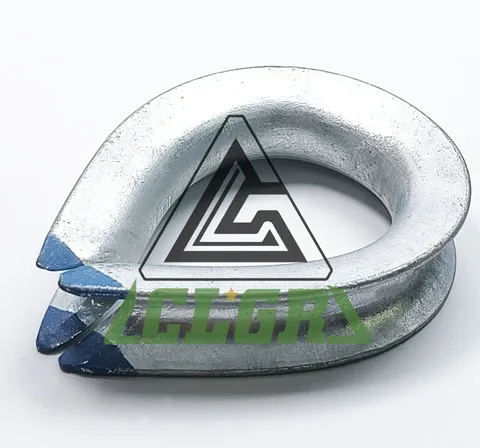

clgr galvanised wire rope thimble as1138 aus type factory

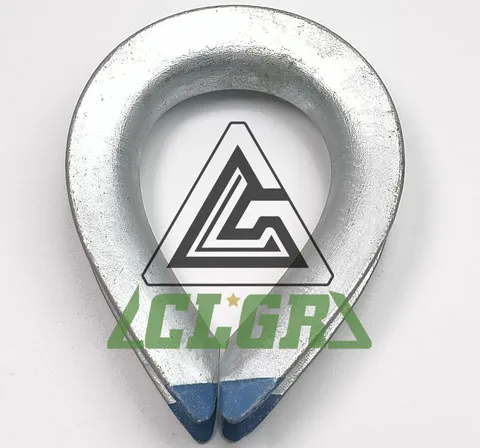

clgr galvanised wire rope thimble as1138 aus type manufacturers

 

Overview of CLGR® Galvanised Wire Rope Thimble AS1138 – Aus Type

Brand	CLGR®
Size wire	6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 26mm, 28mm, 32mm, 36mm, 40mm, 44mm, 48mm, 52mm
Material	Super Alloy Steel
Surface Treatment	Hot Dipped Galvanized
Processing	Forged Steel + Machining + Stamping
Tips	Recommended for heavy duty applications

Specifications of CLGR® Galvanised Wire Rope Thimble AS1138 – Aus Type

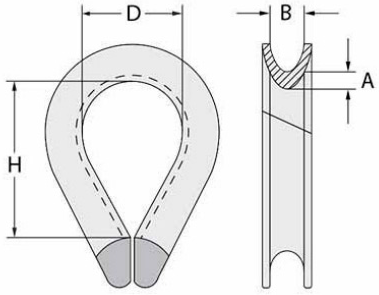

Drawing CLGR® Galvanised Wire Rope Thimble AS1138 – Aus Type

Item No.	SIZE (mm)	Wt. (kg/pc)	DIMENSIONS
Item No.	SIZE (mm)	Wt. (kg/pc)	A (mm)	B (mm)	H (mm)	D (mm)
CR-AS1138-06	6	0.04	4	7	25	16
CR-AS1138-08	8	0.052	5	7.9	33	22
CR-AS1138-10	10	0.08	5	10.3	38	25
CR-AS1138-11	11	0.09	6	12.7	41	29
CR-AS1138-12	12	0.13	6	14.3	44	32
CR-AS1138-14	14	0.15	7	15	46	38
CR-AS1138-16	16	0.26	8	15.9	59	41
CR-AS1138-18	18	0.35	8	18	65	46
CR-AS1138-19	19	0.4	9	20.6	73	51
CR-AS1138-20	20	0.5	10	21.6	75	52
CR-AS1138-22	22	0.62	10	22.2	83	57
CR-AS1138-24	24	0.9	11	25.4	92	64
CR-AS1138-26	26	1	11	27	111	72
CR-AS1138-28	28	1.1	12	28.6	111	76
CR-AS1138-32	32	1.3	14	33.4	133	95
CR-AS1138-36	36	2.2	16	38	152	105
CR-AS1138-40	40	3.2	18	43	165	114
CR-AS1138-44	44	5.6	20	47	178	127
CR-AS1138-48	48	8.2	22	51	190	134
CR-AS1138-52	52	11	22	55	203	140
