CLGR® Galvanized Semi Enclosed Thimbles

Name: CLGR® Galvanized Semi Enclosed Thimbles
Brand: CLGR®

Galvanized Semi Enclosed Thimbles, also known as Synthetic Rope Thimbles and Reinforced Hawser Thimbles.

The galvanized semi enclosed rigging thimble from CLGR® is made of superior alloy steel as the substrate, and is treated with hot-dip galvanizing or other advanced galvanizing processes.

The galvanized layer provides excellent corrosion resistance to extend service life, while enhancing appearance with a uniform, bright metallic finish.

The semi-enclosed design facilitates quick penetration and positioning of the steel wire rope, provides reliable support and protection for the rope loop, effectively disperses tension and pressure to prevent deformation, wear, or breakage from concentrated force.

The semi enclosed rigging thimble is available in Sizes: Ø16/Ø22, Ø24/Ø30, Ø32/Ø40, Ø44，Ø48/Ø56, Ø64, Ø72, Ø80, Ø88/Ø96, Ø112.

To Get A Quote >

24 CLGR® Galvanized Semi Enclosed Thimbles

clgr galvanized semi enclosed thimbles suppliers

clgr galvanized semi enclosed thimbles manufacturers

Overview of CLGR® Galvanized Semi Enclosed Thimbles

Brand	CLGR®
Material	Super Alloy Steel
Processing	Cast
Finish	Zinc plated, Hot dipped galvanized
Size	Ø16/Φ22, Ø24/Φ30, Ø32/Φ40, Ø44, Ø48/Φ56, Ø64, Ø72, Ø80, Ø88/Ø96, Ø112

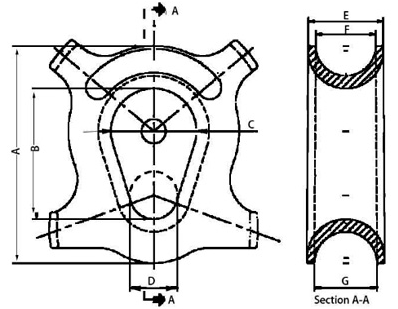

Specifications of CLGR® Galvanized Semi Enclosed Thimbles

CLGR® Galvanized Semi Enclosed Thimbles

Part No.	ROPE DIAMETER (mm)	A	B	C	D	E	F	G	WEIGHT (kg) APPROX
CRSET01	Ø16/Ø22	111.5	65	32	10	37	28	35	TBA
CRSET02	Ø24/Ø30	146.5	90	51	28	47	37	40	1.25
CRSET03	Ø32/Ø40	196	127	85	42	57	46	50	2.25
CRSET04	Ø44	205	140	86	42	64	52	54	3.40
CRSET05	Ø48/Ø56	247	149	92	44	85	70	76	5.30
CRSET06	Ø64	274.5	159	102	54	95	76	79	7.90
CRSET07	Ø72	316	194	120	68	102	83	89	12.25
CRSET08	Ø80	349	217.5	127	70	108	89	98	14.45
CRSET09	Ø88/Ø96	403.5	241	156	86	140	114	117	26.40
CRSET10	Ø112	477.5	280	184	104	170	140	145	30
