What Is A Wire Ferrule? An Essential Guide

Table of Content [Hide]

A wire ferrule is a specialized electrical connector used to terminate the ends of stranded wires, serving as a reliable alternative to traditional wire terminals. While similar in function to common terminals, ferrules offer distinct advantages and are increasingly adopted across industries such as automotive, industrial manufacturing, marine, solar energy, and various electrical applications. Already standard in many European electrical systems, wire ferrules are gaining global recognition for their efficiency and durability.

How Does a Wire Ferrule Work?

A wire ferrule is crimped onto the stripped end of a stranded wire. This process secures the fine wire strands, preventing them from fraying or spreading. Once crimped, the ferrule can be easily inserted into terminal blocks, connectors, or screw-type terminals, ensuring a clean and stable electrical connection.

Key Difference: Ferrules vs. Standard Terminals

The primary distinction lies in the crimping area. Unlike typical terminals where crimping occurs over an insulated barrel section, a wire ferrule is crimped directly along its metal sleeve—without extending into any insulation layer. This design offers a more compact and mechanically secure termination, which is particularly beneficial in high-vibration or frequent maintenance environments.

Why Use a Wire Ferrule?

Prevents Strand Fraying: Keeps wire strands intact, reducing short circuits and connection failures.

Improves Contact Integrity: Ensures full contact within screw terminals, minimizing heat buildup and voltage drop.

Enhances Durability: Allows for repeated insertion and removal without damaging the wire end.

Provides Strain Relief: Reduces mechanical stress on wire connections.

Ideal for Terminal Blocks: Especially effective with European-style screw clamp terminals.

Types of Wire Ferrules

Wire ferrules come in several varieties to suit different needs:

Insulated Ferrules: Feature a color-coded plastic collar for easy wire gauge identification and extra bending protection in tight spaces.

Twin Insulated Ferrules: Allow two wires to be crimped into a single ferrule for paired connections.

Non-Insulated Ferrules: Used when insulation is not required, offering a compact and economical solution.

Available in various wire gauge sizes and material types (such as copper or tin-plated copper), ferrules can be purchased individually or in convenient assortments kits for different applications.

Whether you are upgrading an electrical panel, building industrial machinery, or working on vehicle wiring, incorporating wire ferrules can enhance safety, reliability, and ease of maintenance in your electrical connections.

References

PREV : How to Choose the Right Web Sling？

NEXT : What are the Chain Slings？

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.

Related Rigging Hardware News

Exhibition in Norway 2024

Qingdao LG Rigging Co., Ltd. presented at the Norway Exhibition, demonstrating its specialized rigging solutions tailored to the industry's specific requirements.

The Essential Guide to Wire Rope Thimbles

Wire rope thimbles are critical components in rigging and lifting operations, providing essential protection to wire rope eyes and enhancing connection strength. This guide covers their types, applications, installation procedures, and maintenance best practices.

How to Choose the Right Wire Rope?

Choosing the right wire rope doesn't have to be complicated. Follow this clear guide to get reliable performance and safety for your equipment.1. Rope StrengthCalculate the maximum working load, i...

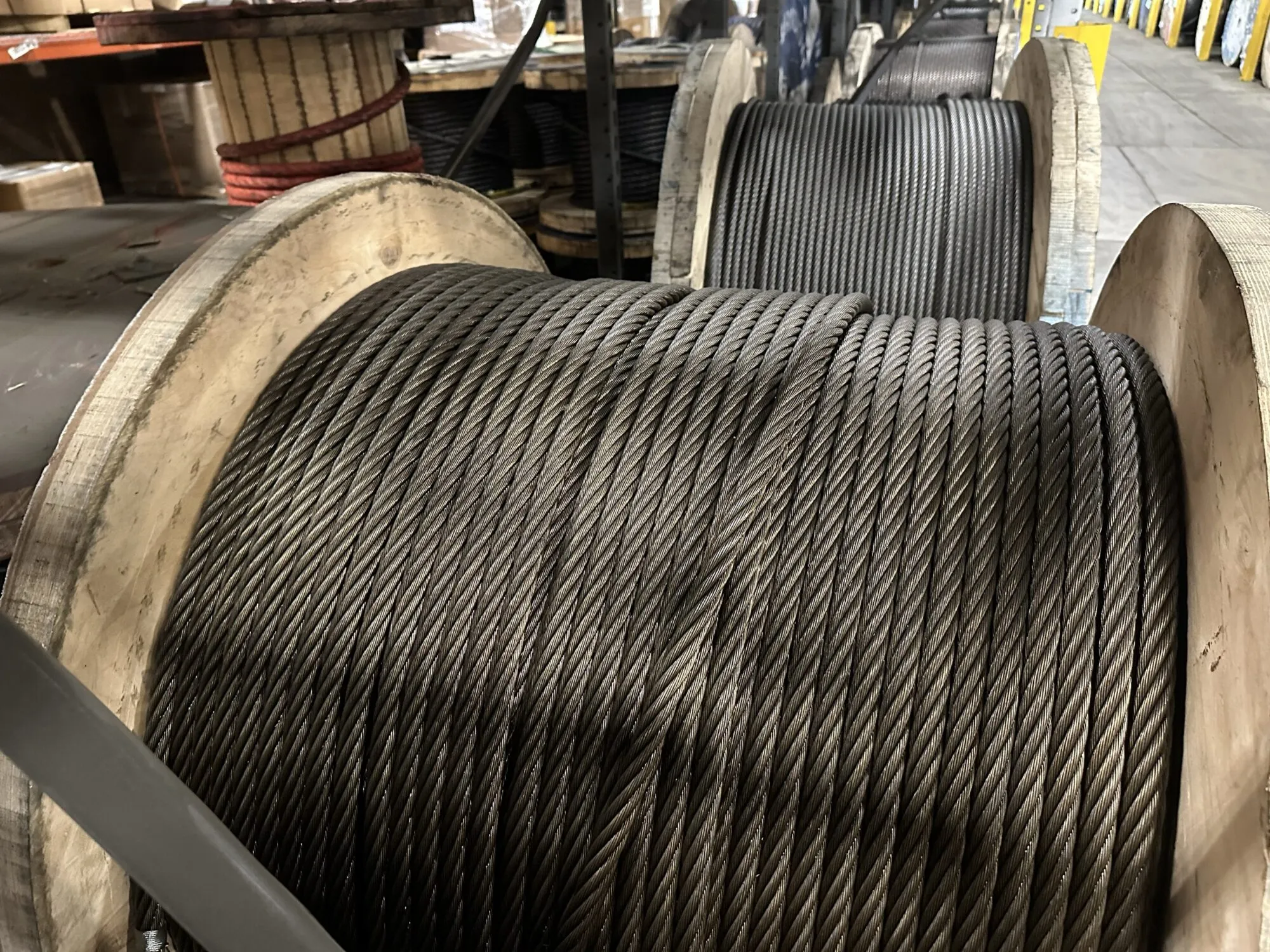

Understanding of Wire Rope: Structure, Types, and Applications
