CLGR® Galvanised Wire Rope Thimble BS464 Type HDG EN13411-1/DIN3090

Name: CLGR® Galvanised Wire Rope Thimble BS464 Type HDG EN13411-1/DIN3090
Brand: CLGR®

The BS464 Wire Rope Thimble, also known as Galvanised Heart-Shaped Wire Rope Thimbles, Galvanised Heart Shaped Towing Thimble, Heart Shaped Thimble for Wire Rope.

BS464 Wire Rope Thimbles are engineered to deliver basic reinforcement and protection for wire rope loops in low-load scenarios.

Their core function is to stop wire rope loops from deforming or wearing at the contact area, which aids in maintaining the loop's shape during use and extends the service life of the wire rope.

CLGR Wire Rope Thimbles feature easy installation and exceptional durability, and they can be paired with wire rope clips and fiber rope for enhanced performance.

Additionally, we offer a variety of thimble types to choose from, tailored to different wire ropes used in various applications.

To Get A Quote >

clgr galvanised wire rope thimble bs464 type hdg en13411-1 din3090 manufacturers

clgr galvanised wire rope thimble bs464 type hdg en13411-1 din3090 suppliers

clgr galvanised wire rope thimble bs464 type hdg en13411-1 din3090 factory

Overview of CLGR® Galvanised Wire Rope Thimble BS464 Type HDG EN13411-1 / DIN3090

Brand	CLGR®
Technical Notes	to BS 464 – Table 1 – 1958 / EN13411-1 / DIN3090
Size wire	1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 7/8", 15/16", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", 1-7/8", 2"
Material	Super Carbon Steel
Surface Treatment	Hot Dipped Galvanized
Processing	Forged, Stamping
Note	Supplied with certificates of conformity upon request.

Specifications of CLGR® Galvanised Wire Rope Thimble BS464 Type HDG EN13411-1 / DIN3090

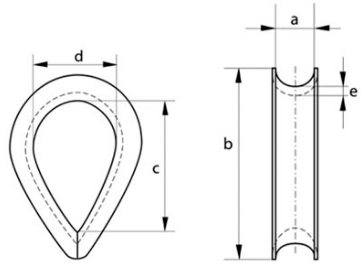

drawing Galvanised Wire Rope Thimble BS464 Type HDG EN13411-1 / DIN3090

Part No.	Diameter Rope (inch)	Width Groove (a, mm)	Length (b, mm)	Length Inside (c, mm)	Width Inside (d, mm)	Thickness Back (e, mm)	Weight/100 (kg)
CRBS464G1/4	1/4	6	48	30	20	3.5	5.4
CRBS464G5/16	5/16	8	54	33	22	4	5.7
CRBS464G3/8	3/8	10	64	38	25	4.8	7.6
CRBS464G7/16	7/16	13	73	41	29	4.8	14.2
CRBS464G1/2	1/2	14	80	44	32	5.6	18
CRBS464G9/16	9/16	15	80	44	32	5.6	18.9
CRBS464G5/8	5/8	17	98	59	41	7.9	34
CRBS464G11/16	11/16	19	108	67	44	7.9	39.7
CRBS464G3/4	3/4	20	124	73	51	9.5	62.4
CRBS464G7/8	7/8	23	133	83	57	9.5	75.6
CRBS464G15/16	15/16	25	146	92	64	10.3	106
CRBS464G1/1	1	27	162	108	70	10.3	125
CRBS464G1-1/8	1-1/8	29	178	111	76	12.7	151
CRBS464G1-1/4	1-1/4	33	197	133	95	12.7	204
CRBS464G1-3/8	1-3/8	38	229	152	105	15.9	318
CRBS464G1-1/2	1-1/2	41	254	165	114	17.5	488
CRBS464G1-5/8	1-5/8	46	254	165	114	17.5	499
CRBS464G1-3/4	1-3/4	51	286	178	127	25.4	556
CRBS464G1-7/8	1-7/8	60	318	191	133	28.6	740
CRBS464G2/1	2	64	330	203	140	28.6	799
