CLGR® Light Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

Name: CLGR® Light Duty Stainless Steel Wire Rope Thimble US Fed. Spec.
Brand: CLGR®

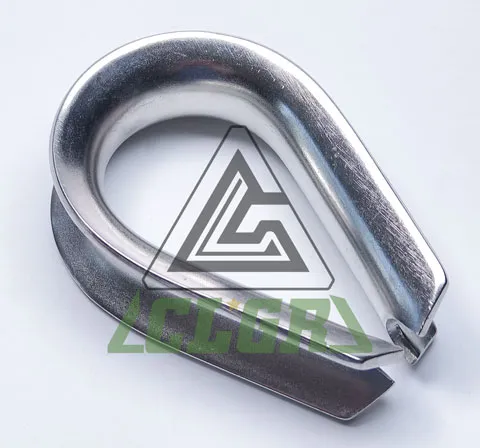

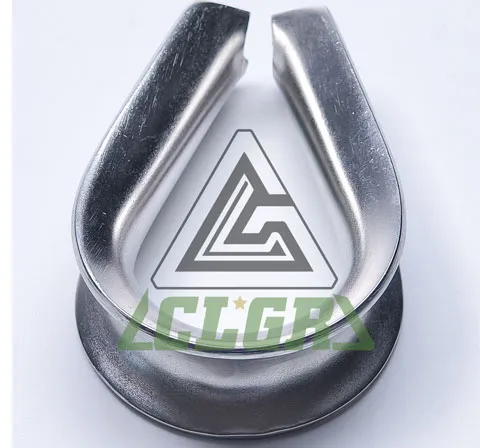

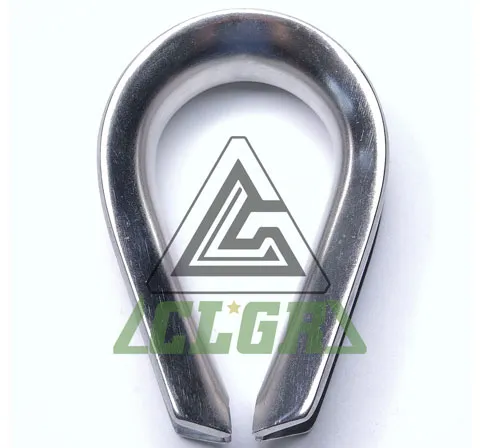

CLGR® Light Duty Stainless Steel Wire Rope Thimble G-411, also known as stainless steel wire rope eyelet, Wire Rope Eyelet Thimbles, Wire Rope Loop Eye Thimble.

Stainless Steel Wire Rope Thimble is a light duty cable thimble which is manufactured from stainless steel grade 304 or 316 for excellent corrosion resistance.

Stainless Steel Wire Rope Thimbles are designed to provide basic reinforcement and protection for wire rope loops in low-load applications.

Their purpose is to prevent wire rope loops from deforming or wearing at the contact point, which helps keep its shape when in use and ensures that the wire rope lasts longer.

Thimbles can be complemented with wire rope clips and fiber rope.

We also offer Heavy Duty Thimble for your option.

To Get A Quote >

clgr light duty stainless steel wire rope thimble us fed spec manufacturers

clgr light duty stainless steel wire rope thimble us fed spec suppliers

clgr light duty stainless steel wire rope thimble us fed spec factory

clgr light duty stainless steel wire rope thimble us fed spec exporter

clgr light duty stainless steel wire rope thimble us fed spec china

 

Overview of CLGR® Light Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

Brand	CLGR®
Type	G-411
Size wire	1/16", 3/32", 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-3/8"
Material	Stainless Steel Grade 304 or 316
Surface Treatment	Highly Polished
Processing	Stamping

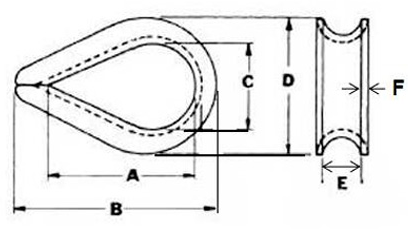

Specifications of CLGR® Light Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

Part No.	Size (in)	Size (mm)	E (±1 - 2mm, mm)	C (±1 - 2mm, mm)	D (±1 - 3mm, mm)	A (±1 - 2mm, mm)	B (±1 - 2mm, mm)	F	Weight (g)
CRSSG411/16	1/16	2	4.6	14.7	19.2	29	35.3	0.8	4.9
CRSSG4113/32	3/32	2.5	5.7	13.5	18.7	27.3	34.4	0.8	5
CRSSG411/8	1/8	3	6.5	17.5	25.5	37	46	1.2	11
CRSSG4115/32	5/32	4	7	17.5	25.6	37	46	1.2	12
CRSSG4113/16	3/16	5	7.5	17.8	26	37.5	46.5	1.2	12
CRSSG411/4	1/4	6	8	17.5	25.3	39	46.5	1.2	12.6
CRSSG4115/16	5/16	8	9.6	20.5	30.9	39.7	51.9	1.2	18
CRSSG4113/8	3/8	10	11	24.6	35	48	59	1.5	31
CRSSG411/2	1/2	12	13.6	28.3	42.5	53.7	69.5	2	54
CRSSG4115/8	5/8	16	20	35	57	58.5	81	3	142
CRSSG4113/4	3/4	20	22	42.3	64.8	69.8	91.3	4	248
CRSSG4117/8	7/8	22	26	49	77	94	123	4	370
CRSSG4111	1	25	30	67.6	95.5	117	146	4	456
CRSSG4111 - 1/4	1 - 1/4	32	66	75	113	130	164	5	792
CRSSG4111 - 3/8	1 - 3/8	36	-	90	-	-	-	6	1668
