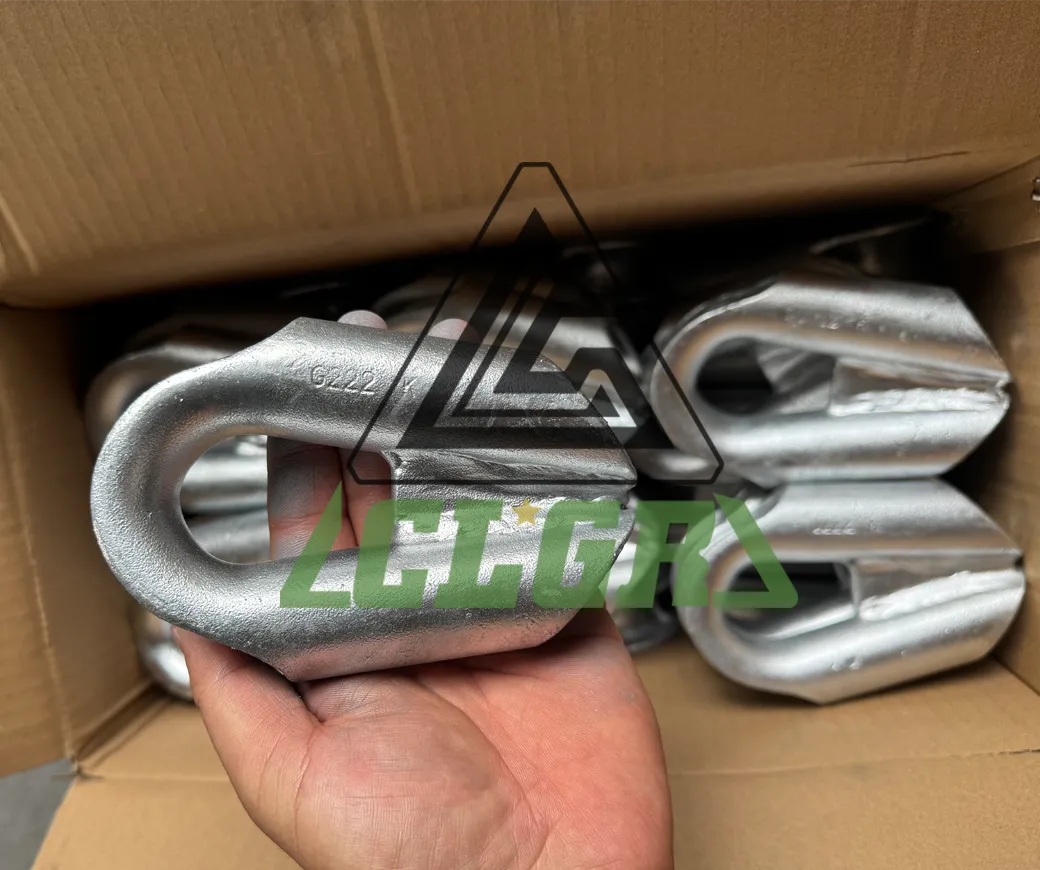

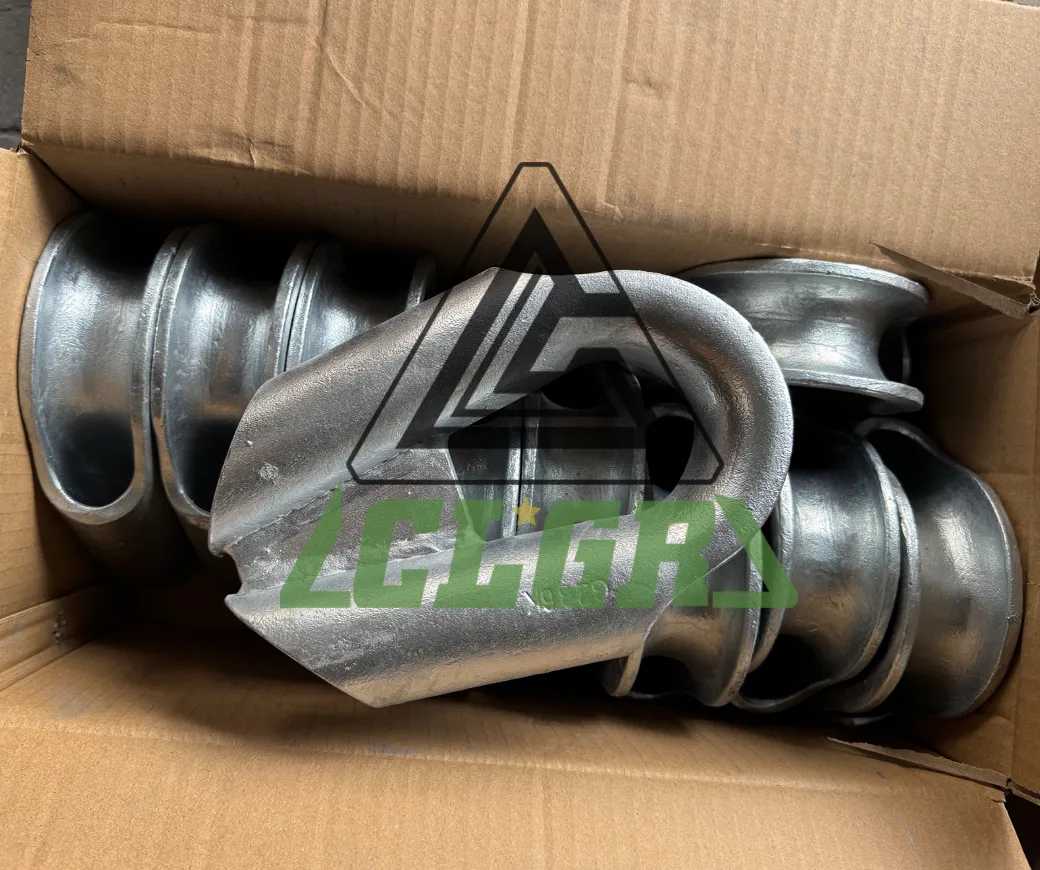

CLGR® Tube Thimble with Gusset CRTTG2 Type, also known as Tubular Thimble with Gusset, is manufactured from super carbon steel.
It a reliable choice for marine, industrial, and architectural applications.
Tube Thimble with Gusset is designed to provide basic reinforcement and protection for wire rope loops in low-load applications.
Their purpose is to prevent wire rope loops from deforming or wearing at the contact point, which helps keep its shape when in use and ensures that the wire rope lasts longer.
Special specifications can also be produced according to drawings and samples.
All the CLGR® Tube Thimble with Gusset CRTTG2 Type have passed the international industry certification standards, and you can fully trust the quality.
CLGR® | |
Size wire | 12-10mm, 15-12mm, 17-14mm, 19-16mm, 22-18mm, 25-22mm, 28-24mm, 30-26mm, 35-32mm, 45-38mm, 50-44mm |
Material | Super Carbon Steel |

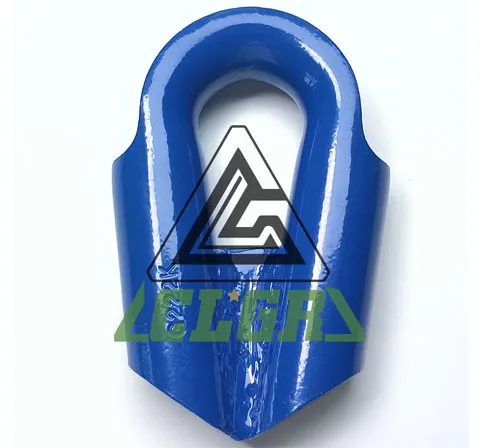

Surface Treatment | Zinc Plated, Hot Dip Galvanized, Powder Coated |
Processing | Machining, Stamping, Welding |
Applications | For use with wire ropes. |

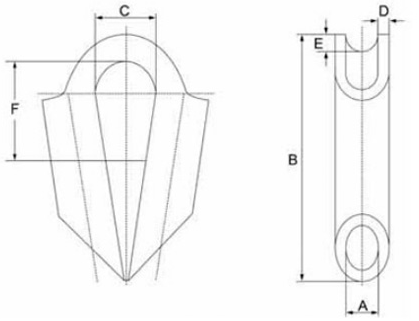

Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) | Rope Diameter |
CRTTG212 | 12 | 95 | 23 | 4 | 8 | 48 | 0.25 | 10 |
CRTTG215 | 15 | 109 | 27 | 5 | 10 | 49 | 0.42 | 12 |
CRTTG217 | 17 | 115 | 27 | 5 | 10 | 49 | 0.5 | 14 |
CRTTG219 | 19 | 125 | 32 | 5 | 12 | 43 | 0.6 | 16 |
CRTTG222 | 22 | 140 | 35 | 5 | 15 | 50 | 0.75 | 18 |
CRTTG225 | 25 | 158 | 45 | 6.3 | 16 | 59 | 1.4 | 22 |
CRTTG228 | 28 | 176 | 45 | 7 | 16 | 61 | 1.54 | 24 |
CRTTG230 | 30 | 195 | 47 | 7 | 18 | 78 | 1.82 | 26 |
CRTTG235 | 35 | 210 | 60 | 7 | 22 | 93 | 2.4 | 32 |
CRTTG245 | 45 | 253 | 70 | 7 | 27 | 94 | 3.3 | 38 |
CRTTG250 | 50 | 280 | 75 | 7 | 28 | 96 | 4.06 | 44 |
