CLGR® Galvanized Wire Rope Thimble DIN 6899 B Type

Name: CLGR® Galvanized Wire Rope Thimble DIN 6899 B Type
Brand: CLGR®

CLGR® Galvanized Wire Rope Thimble DIN 6899 B Type, also known as Galvanised Steel Wire Rope Eyelet Thimbles and Galvanised Steel Wire Rope Thimble Eye.

Wire Rope Thimble is crafted from superior mild steel. The wire rope thimbles for sale stand as a reliable option for marine, industrial, and architectural uses.

The Wire Rope Thimble is engineered to offer basic reinforcement and protection to wire rope loops in low-load applications.

The role of the wire rope thimbles for sale is to stop wire rope loops from deforming or wearing at the contact area. This helps maintain the wire rope loop's shape during use and guarantees a longer service life for the wire rope thimbles for sale.

We can also produce special specifications based on drawings and samples.

All CLGR® Wire Rope Thimble DIN 6899 B Type products have met international industry certification standards. So, you can have full confidence in our quality.

To Get A Quote >

clgr galvanized wire rope thimble din 6899 b type manufacturers

clgr galvanized wire rope thimble din 6899 b type suppliers

clgr galvanized wire rope thimble din 6899 b type factory

Overview of CLGR® Galvanized Wire Rope Thimble DIN 6899 B Type

Brand	CLGR®
Size	3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 28mm, 30mm, 32mm
Material	Super Mild Steel
Surface Treatment	Electric Galvanized
Processing	Stamping

Specifications of CLGR® Galvanized Wire Rope Thimble DIN 6899 B Type

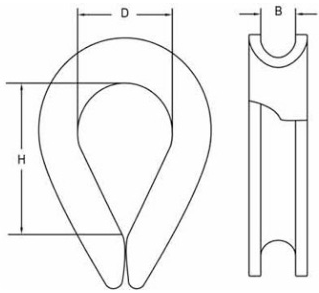

Drawing of CLGR® Galvanized Wire Rope Thimble DIN 6899 B Type

Part No.	Nominal Size (mm)	Rope (Ø) (mm)	D (mm)	H (mm)	B (mm)	Weight (kgs/pc)
CR6899B03	3	2.5 - 3.0	12	19	3	0.006
CR6899B04	4	3.0 - 4.0	13	21	4	0.007
CR6899B05	5	4.0 - 5.0	14	23	5	0.009
CR6899B06	6	5.0 - 6.0	16	25	6	0.013
CR6899B08	8	7.0 - 8.0	20	31	8	0.027
CR6899B10	10	8.0 - 10.0	23	39	10	0.037
CR6899B12	12	10.0 - 12.0	28	44	12	0.066
CR6899B14	14	12.0 - 14.0	32	53	14	0.081
CR6899B16	16	14.0 - 16.0	36	58	16	0.126
CR6899B18	18	16.0 - 18.0	40	64	18	0.229
CR6899B20	20	18.0 - 20.0	45	72	20	0.298
CR6899B22	22	20.0 - 22.0	48	78	22	0.347
CR6899B24	24	22.0 - 24.0	53	88	24	0.659
CR6899B26	26	24.0 - 26.0	60	99	26	0.729
CR6899B28	28	26.0 - 28.0	65	111	28	0.887
CR6899B30	30	28.0 - 30.0	75	120	30	0.949
CR6899B32	32	30.0 - 32.0	78	124	32	1.12

Bulk Photos of Galvanized Wire Rope Thimble DIN 6899 B Type

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
