Tube Thimble without Gusset, also known as Tubular thimble without gusset, is manufactured from super carbon steel.
Tube Thimble with Gusset is designed to provide basic reinforcement and protection for wire rope loops in low-load applications.
Their purpose is to prevent wire rope loops from deforming or wearing at the contact point, which helps keep its shape when in use and ensures that the wire rope lasts longer.
All the CLGR® Tubular Thimble with Gusset CRG7 Type have passed the international industry certification standards, and you can fully trust the quality.
Our range of galvanized tubular thimble is available in standard as well as customized sizes.
We are a highly professional Chinese manufacturer and supplier of rigging products. If you are interested, please feel free to contact us.
Brand | CLGR® |
Size | G712, G715, G717, G719, G722, G725, G728, G730, G735, G745, G750 |
Size wire | 12-10mm, 15-12mm, 17-14mm, 19-16mm, 22-18mm, 55-22mm, 28-24mm, 30-26mm, 35-32mm, 45-38mm, 50-42mm, 55-48mm |
Material | Super Carbon Steel |
Surface Finish | Zinc Plated, Hot Dip Galvanized, Powder Coated |
Processing | Machining, Stamping |
Tips | Supplied in open finish or with welded gusset plate |

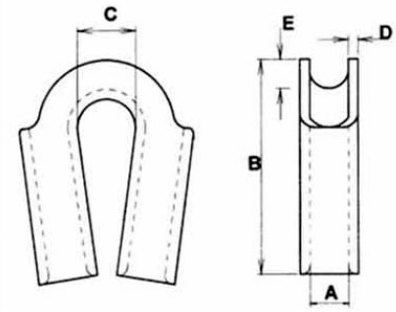

Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) | Rope Diameter |
CRG712 | 12 | 84 | 23 | 4 | 8 | 0.21 | 10 |
CRG715 | 15 | 95 | 27 | 5 | 10 | 0.4 | 12 |
CRG717 | 17 | 100 | 27 | 5 | 10 | 0.48 | 14 |
CRG719 | 19 | 112 | 32 | 5 | 12 | 0.6 | 16 |
CRG722 | 22 | 125 | 35 | 5 | 15 | 0.71 | 18 |
CRG725 | 25 | 150 | 45 | 6.3 | 16 | 1.21 | 22 |
CRG728 | 28 | 157 | 45 | 7 | 16 | 1.6 | 24 |
CRG730 | 30 | 170 | 47 | 7 | 18 | 1.91 | 26 |
CRG735 | 35 | 190 | 60 | 7 | 22 | 2.6 | 32 |
CRG745 | 45 | 228 | 70 | 7 | 27 | 3.5 | 38 |
CRG750 | 50 | 255 | 75 | 7 | 35 | 4.2 | 42 |
CRG755 | 55 | 268 | 80 | 7.5 | 31 | 4.8 | 48 |
