CLGR® Galvanized Wire Rope Thimble European Type

Name: CLGR® Galvanized Wire Rope Thimble European Type
Brand: CLGR®

Galvanized Wire Rope Thimble European Type, also known as Wire Rope Eyelet Thimbles, Wire Rope Loop Eye Thimble Galvanised, Commercial Thimble and wire rope thimbles.

The CLGR® Wire Rope Thimble is made of mild steel and undergoes a galvanized surface treatment process to prevent premature rusting and corrosion.

The rope thimbles for sale help maintain the shape and integrity of the looped end of the wire rope, preventing it from becoming distorted or flattened under load.

Special specifications can also be produced according to drawings and samples.

To Get A Quote >

clgr galvanized wire rope thimble european type manufacturers

clgr galvanized wire rope thimble european type suppliers

Overview of CLGR® Galvanized Wire Rope Thimble European Type

Brand	CLGR®
Standard	European Type Commercial Thimble
Size	3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm
Material	Superior Carbon Steel
Surface Treatment	Electric Galvanized / Hot Dip Galvanized
Processing	Stamping
Applications	For use with wire ropes.
Note	NOT FOR HEAVY DUTY PURPOSES

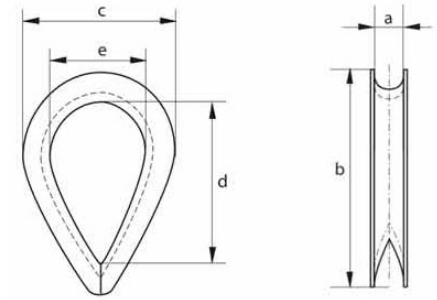

Specifications of CLGR® Galvanized Wire Rope Thimble European Type

Part No.	Diameter Rope (mm)	Width Groove (mm)	Length (mm)	Width (mm)	Length Inside (mm)	Width Inside (mm)	Weight/100 (kg)
Part No.	Diameter Rope (mm)	a	b	c	d	e	Weight/100 (kg)
CRWRTZEU03	3	3	24	18	15	10	0.4
CRWRTZEU04	4	4	25	19	16	11	0.5
CRWRTZEU05	5	5	31	22	22	16	0.6
CRWRTZEU06	6	6	37	29	26	19	1.5
CRWRTZEU07	7	7	44	32	32	22	2
CRWRTZEU08	8	8	51	38	34	24	2.6
CRWRTZEU09	9	9	57	42	38	29	6.5
CRWRTZEU10	10	10	64	44	42	32	4.8
CRWRTZEU11	11	11	70	51	48	35	7.5
CRWRTZEU12	12	12	76	57	51	38	8.5
CRWRTZEU14	14	14	82	60	57	40	10
CRWRTZEU16	16	16	89	64	60	42	12.6
CRWRTZEU18	18	18	102	69	67	45	22
CRWRTZEU20	20	20	115	79	76	51	26.8
CRWRTZEU22	22	22	127	89	83	54	33
CRWRTZEU24	24	24	140	102	88	64	39.5
CRWRTZEU26	26	26	152	105	102	68	66
CRWRTZEU28	28	28	165	115	110	73	77
CRWRTZEU30	30	30	178	121	115	79	99
CRWRTZEU32	32	32	203	133	140	93	119

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
