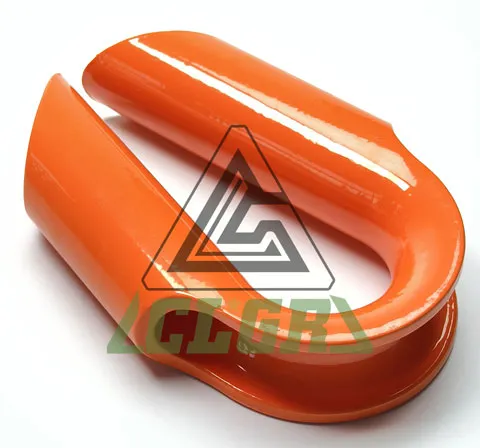

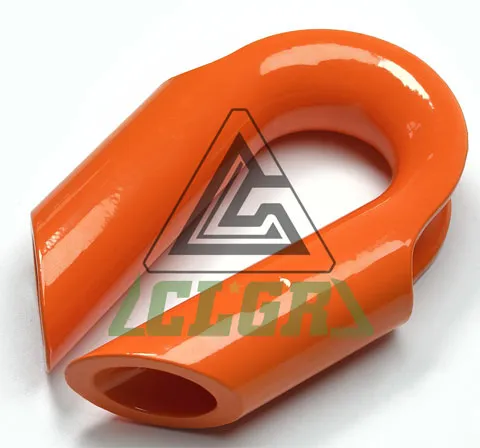

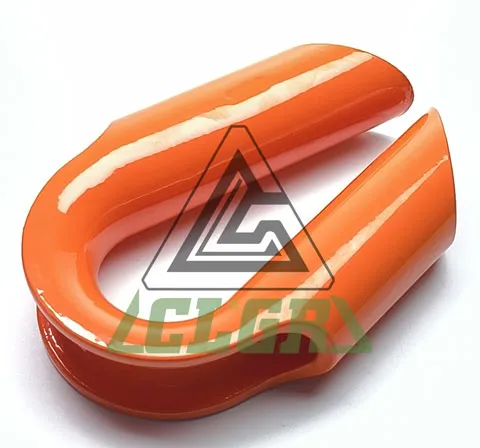

Galvanized Tubular Thimble without Gusset CRTTG2 Type, also known as tube thimble and Pipe Thimble.
Tubular Thimble is shaped like a tube, with smooth inner walls and an open end.
Wire Rope Tubular Thimble without Gusset is manufactured from superior carbon steel.
The thimble helps maintain the shape and integrity of the looped end of the wire rope, preventing it from becoming distorted or flattened under load.
It is easy to install, thread the wire rope through the wire rope tube thimble, then place the clamp over the intersection of the wire rope tube thimble and the and tighten the screws of the wire rope clamp.
Special specifications can also be produced according to drawings and samples.
Brand | CLGR® |
Size | TG215, TG217, TG219, TG222, TG225, TG228, TG230, TG235 |
Size wire | 15mm, 17mm, 19mm, 22mm, 25mm, 28mm, 30mm, 35mm |
Material | Superior Carbon Steel |
Surface Treatment | Zinc Plated, Hot Dip Galvanized, Powder Coated |
Processing | Machining, Stamping |
Applications | For use with wire ropes. |

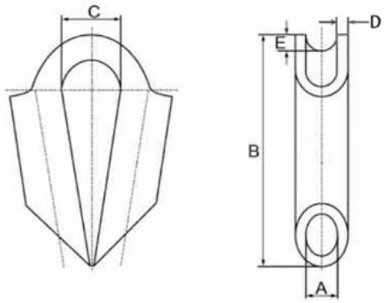

Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) | For wire max. (mm) |
CRTTG215 | 15 | 109 | 27 | 5.0 | 10 | 0.42 | 12 |
CRTTG217 | 17 | 115 | 27 | 5.0 | 10 | 0.50 | 14 |
CRTTG219 | 19 | 125 | 32 | 5.0 | 12 | 0.56 | 16 |
CRTTG222 | 22 | 140 | 35 | 5.0 | 15 | 0.67 | 18 |
CRTTG225 | 25 | 158 | 45 | 6.3 | 16 | 1.3 | 22 |
CRTTG228 | 28 | 176 | 45 | 7.0 | 16 | 1.62 | 24 |
CRTTG230 | 30 | 195 | 47 | 7.0 | 18 | 2.05 | 26 |
CRTTG235 | 35 | 210 | 60 | 7.0 | 22 | 2.55 | 32 |
