Turnbuckle: Definition, Types, Applications, and Installation

1. Definition of a Turnbuckle

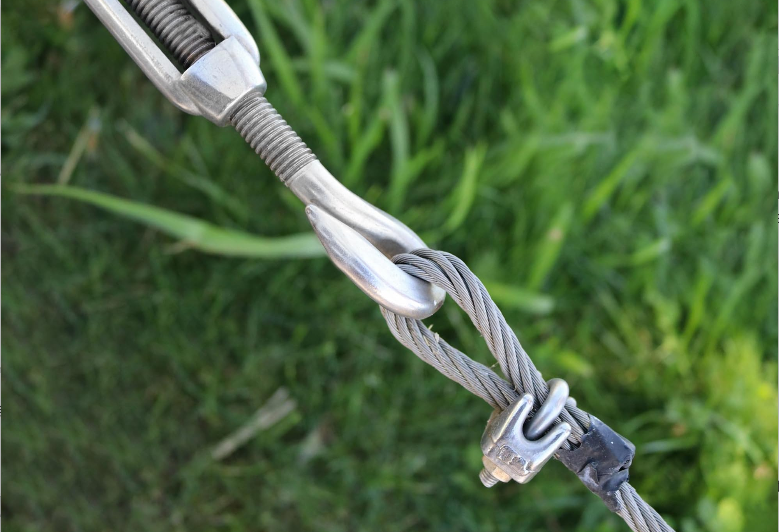

A turnbuckle is a mechanical device used to adjust the tension or length of ropes, cables, tie rods, and other tensioning systems. It consists of a frame (or body) with two threaded eye bolts or hooks at either end. By rotating the frame, the two ends move towards or away from each other, allowing precise tension adjustment. Turnbuckles are essential in applications requiring controlled tensioning, such as in construction, marine, and industrial settings.

2. Types of Turnbuckles

Turnbuckles are categorized based on their end fittings and frame design:

By End Fittings

· Eye-Eye Turnbuckle: Both ends have closed eyes, suitable for permanent connections with shackles or bolts.

· Hook-Hook Turnbuckle: Both ends have hooks, ideal for temporary or quick connections but less secure than eye fittings.

· Hook-Eye Turnbuckle: One end has a hook, the other an eye, combining flexibility and security.

· Jaw-Jaw Turnbuckle: Both ends have jaw fittings with pins, used for connecting to clevises or other hinged components.

· Jaw-Eye Turnbuckle: One jaw and one eye, versatile for mixed connection types.

By Frame Design

· Open Body Turnbuckle: Frame is U-shaped, allowing easy adjustment with a wrench. Common in light-duty applications.

· Closed Body Turnbuckle: Frame is cylindrical or rectangular, protecting threads from debris and corrosion. Used in harsh environments.

· Stub End Turnbuckle: Short frame with fixed-length end fittings, used where space is limited.

3. Applications of Turnbuckles

· Construction: Tensioning steel cables in bridges, stadiums, or temporary structures (e.g., scaffolding).

· Marine: Rigging sails, securing cargo, or mooring boats. Stainless steel types are common to resist saltwater corrosion.

· Agriculture: Tensioning fences, supporting greenhouse structures, or adjusting farm equipment.

· Automotive: Suspension systems, trailer hitch adjustments, or securing loads.

· Industrial: Conveyor belts, crane rigging, or machinery alignment.

· Recreation: Camping gear, zip lines, or playground equipment.

4. Installation and Safety Guidelines

Proper installation ensures performance and safety:

Installation Steps

1. Select the correct turnbuckle type and material for the load and environment.

2. Ensure end fittings match the connection points (e.g., shackles for eye ends, pins for jaws).

3. Rotate the frame to adjust tension: turn clockwise to shorten (increase tension) or counterclockwise to lengthen (decrease tension).

4. Use a wrench or spanner on the frame's hexagonal or square section for adjustment. Avoid over-tightening to prevent thread damage.

5. Secure the turnbuckle with lock nuts or safety wire to prevent loosening under vibration.

Safety Precautions

· Never exceed the turnbuckle’s rated load capacity (Working Load Limit, WLL).

· Inspect for cracks, bent components, or corroded threads before use.

· Use safety hooks with latches to prevent accidental disconnection.

· For permanent installations, use lock nuts to secure the adjusted position.

· In corrosive environments, choose stainless steel or coated turnbuckles and perform regular maintenance.
