The Essential Guide to Wire Rope Thimbles

Wire rope thimbles are critical components in rigging and lifting operations, providing essential protection to wire rope eyes and enhancing connection strength. This guide covers their types, applications, installation procedures, and maintenance best practices.

1. What is a Wire Rope Thimble?

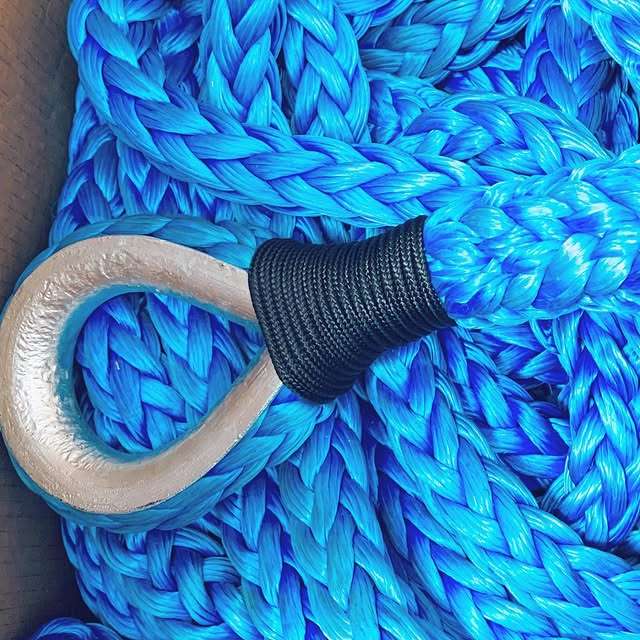

A wire rope thimble is a rigid metal insert shaped like a U or teardrop, designed to be placed inside the loop (eye) of a wire rope. Its primary functions include:

· Preventing the wire rope from kinking or flattening at the eye, which can weaken the rope

· Distributing loads evenly across the rope strands, reducing stress concentrations

· Protecting the rope from abrasion caused by contact with shackles, hooks, or other hardware

· Maintaining the natural shape of the rope eye, ensuring secure engagement with connecting hardware

2.Wire Rope Thimble Materials and Finishes

The essence of a thimble's effectiveness lies not only in its shape but also in the material it's made of and the finish applied. These two factors play an instrumental role in determining the wire rope thimble's longevity, resistance, and suitability for varied environments.

· Zinc-Plated Steel: Beyond its lustrous finish, zinc-plated steeloffers a formidable defense against corrosion. It ensures that the thimble remains resilient even in moisture-prone areas, prolonging its service life.

· Galvanized Steel: Not just known for its robustness, galvanized steel also boasts of its anti-rust properties. By providing a protective zinc layer, it stands as a shield against environmental adversities, particularly in industrial setups.

· Stainless Steel: A material synonymous with strength and elegance, stainless steel thimbles are celebrated for their resistance to both corrosion and high temperatures. Their pristine finish and durability make them a sought-after choice in marine applications and aesthetic installations.

3.Installation Procedure

Proper installation is critical to ensure the thimble functions as intended. Follow these steps:

• Position the first clamp 1-2 rope diameters from the thimble's end
• Place subsequent clamps (minimum 2-3) along the dead end, spaced 6-10 rope diameters apart
• Tighten the clamps to the manufacturer's specified torque using a torque wrench

(5) Inspect the Assembly: Check for proper alignment, secure clamping, and no visible damage to the rope or thimble. Test the assembly with a light load before full use.

4. Safety Warning

To ensure safe operation, adhere to the following safety rules:

• Never exceed the working load limit (WLL) of the thimble or wire rope assembly
• Use thimbles only with compatible wire rope sizes and types
• Avoid using damaged or corroded thimbles, as they can fail under load
• Ensure all personnel are trained in proper rigging techniques and safety procedures
• Use personal protective equipment (PPE) including gloves, safety glasses, and hard hats during installation and use
• Follow industry standards (e.g., OSHA, ASME B30.9) for rigging operations
