CLGR® Light Duty Wire Rope Thimble Galvanized US Fed. Spec.

Name: CLGR® Light Duty Wire Rope Thimble Galvanized US Fed. Spec.
Brand: CLGR®

Wire Rope Thimble Galvanized, also known as Galvanised Steel Wire Rope Eyelet Thimbles and Galvanised Steel Wire Rope Thimble Eye.

Wire Rope Tubular Thimble G-411 is a light duty cable thimble which is manufactured from superior mild steel.

Light Duty Wire Rope Thimbles are designed to provide basic reinforcement and protection for wire rope loops in low-load applications.

The purpose of the the wire rope thimbles for sale is to prevent wire rope loops from deforming or wearing at the contact point, which helps keep its shape when in use and ensures that the wire rope lasts longer.

CLGR® Light Duty Wire Rope Thimbles are corrosion resistant, easy to install and very durable. The wire rope thimbles for sale can be complemented with wire rope clips and fiber rope.

We also offer Heavy Duty Thimble for your option.

To Get A Quote >

14 CLGR® Light Duty Wire Rope Thimble Galvanized US Fed. Spec.

clgr light duty wire rope thimble galvanized us fed spec manufacturers

clgr light duty wire rope thimble galvanized us fed spec suppliers

clgr light duty wire rope thimble galvanized us fed spec factory

 

Overview of CLGR® Light Duty Wire Rope Thimble Galvanized US Fed. Spec.

Brand	CLGR®
Size wire	1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8"-1-1/4"
Type	G-411
Material	Superior Mild Steel
Surface Treatment	Electric Galvanized, Hot Dip Galvanized
Processing	Stamping

Specifications of CLGR® Light Duty Wire Rope Thimble Galvanized US Fed. Spec.

Part No.	Rope Dia. (in.)	Weight/100 (lbs.)	Dimensions (in.)

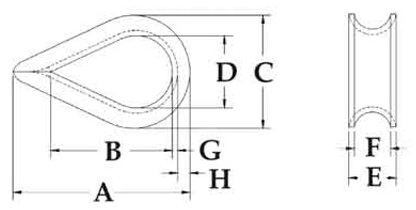

Part No.	Rope Dia. (in.)	Weight/100 (lbs.)	A	B	C	D	E	F	G	H
CRG411G1/8	1/8	3.5	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13
CRG411G3/16	3/16	3.5	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13
CRG411G1/4	1/4	3.5	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13
CRG411G5/16	5/16	4	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13
CRG411G3/8	3/8	6.7	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16
CRG411G1/2	1/2	12.5	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19
CRG411G5/8	5/8	34.5	3.5	2.25	2.38	1.38	0.91	0.66	0.13	0.34
CRG411G3/4	3/4	47.1	3.75	2.5	2.69	1.63	1.08	0.78	0.14	0.34
CRG411G7/8	7/8	84.6	5	3.5	3.19	1.88	1.27	0.94	0.16	0.44
CRG411G1/1	1	97.5	5.69	4.25	3.75	2.5	1.39	1.06	0.16	0.41
CRG411G1-1/8	1-1/8-1-1/4	175	6.25	4.5	4.31	2.75	1.75	1.31	0.22	0.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
