CLGR® Tube Thimble with Gusset CRG7K Type

Name: CLGR® Tube Thimble with Gusset CRG7K Type
Brand: CLGR®

CLGR® Tube Thimble with Gusset CRG7K Type, also called Tubular Thimble with Gusset, and Pipe Thimble.

Tube Thimble is easy to install, it well keeps the rope line into the tube groove, avoid the line fall off from thimble.

The rope thimbles for sale offers superior corrosion resistance and longer service life than other thimbles, works well with synthetic rope, and performs highly in outdoor, marine, and fishing environments.

All the wire tube rope thimbles for sale has passed the international industry certification standards, and you can be completely assured of quality.

Our range of tube rope thimbles for sale is available in standard as well as customized sizes.

CLGR® is a highly professional Chinese manufacturer and supplier of rigging products. If you are interested, please feel free to contact us.

To Get A Quote >

clgr tube thimble with gusset crg7k type manufacturers

clgr tube thimble with gusset crg7k type suppliers

clgr tube thimble with gusset crg7k type factory

Overview of Tube Thimble with Gusset CRG7K Type

Brand	CLGR®
Size	G712K, G715K, G717K, G719K, G722K, G725K, G728K, G730K, G735K, G745K, G750K
Size wire	12-10mm, 15-12mm, 17-14mm, 19-16mm, 22-18mm, 25-22mm, 28-24mm, 30-26mm, 35-32mm, 45-38mm, 50-42mm, 55-48mm
Material	Super Carbon Steel
Surface Treatment	Zinc Plated, Hot Dip Galvanized, Powder Coated
Processing	Machining, Stamping, Welding
Tips	Supplied in open finish or with welded gusset plate

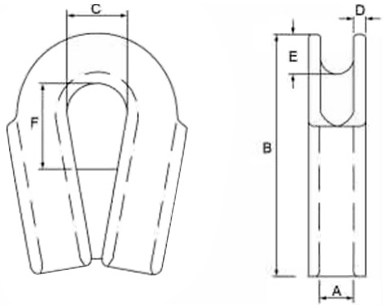

Specifications of Tube Thimble with Gusset CRG7K Type

Tube Thimble with Gusset CRG7K Type

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Weight (kg)	Rope Diameter
CRG7K12	12	84	23	4	8	35	0.21	10
CRG7K15	15	95	27	5	10	49	0.4	12
CRG7K17	17	100	27	5	10	49	0.48	14
CRG7K18	19	112	32	5	12	43	0.6	16
CRG7K22	22	125	35	5	15	50	0.71	18
CRG7K25	25	150	45	6.3	16	59	1.21	22
CRG7K28	28	157	45	7	16	61	1.6	24
CRG7K30	30	170	47	7	18	78	1.91	26
CRG7K35	35	190	60	7	22	93	2.6	32
CRG7K45	45	228	70	7	27	94	3.5	38
CRG7K50	50	255	75	7	35	96	4.2	42

Real Photos of Tube Thimble with Gusset CRG7K Type

clgr tube thimble with gusset crg7k type china

clgr tube thimble with gusset crg7k type china manufacturer

clgr tube thimble with gusset crg7k type china wholesale

clgr tube thimble with gusset crg7k type

clgr tube thimble with gusset crg7k type china supplier
