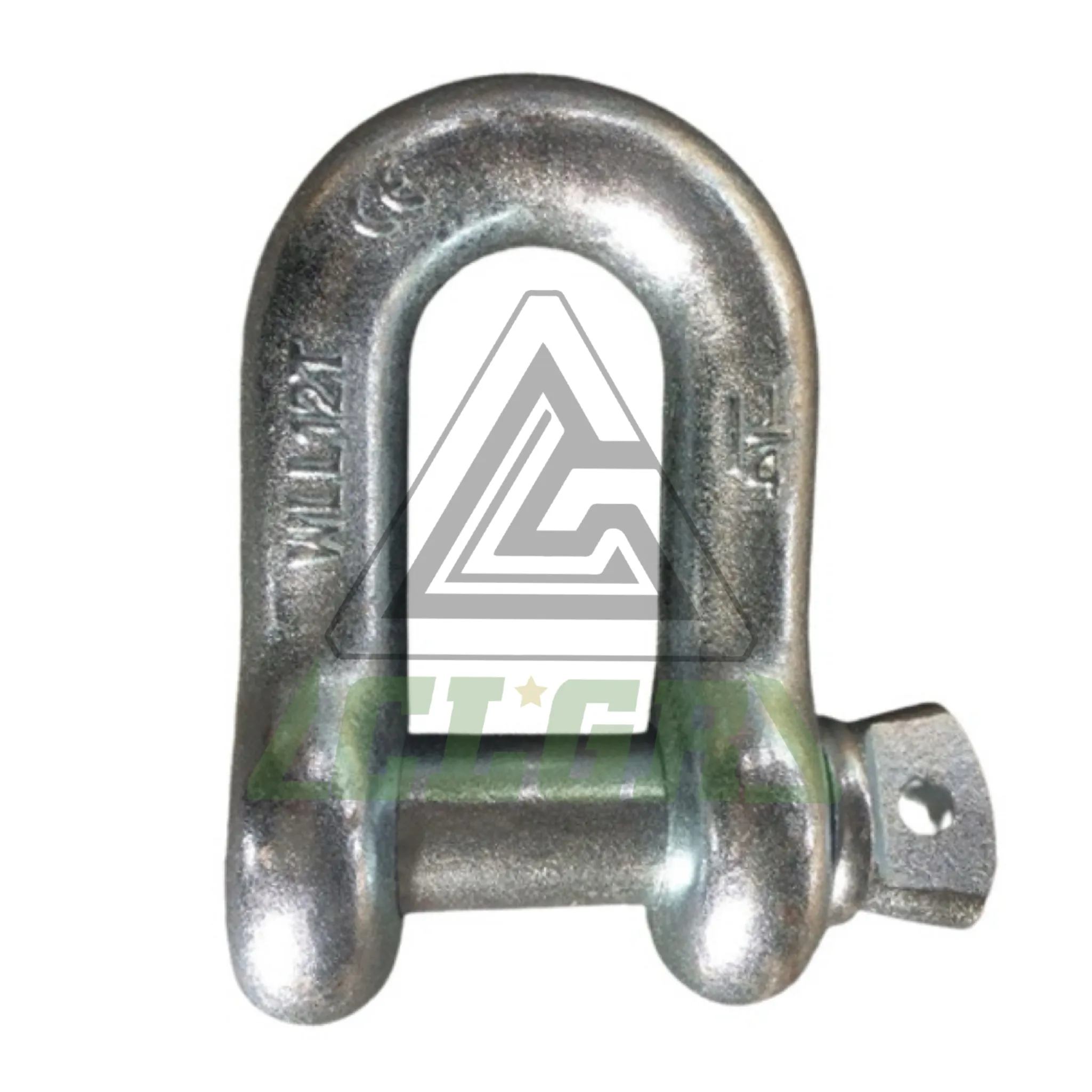

CLGR® Italy Type Galvanized Dee Shackle

Name: CLGR® Italy Type Galvanized Dee Shackle
Brand: CLGR®

CLGR® Italy Type Galvanized Dee Shackle also known as Galvanized Dee Shackle Italy Type, Italy type dee shackle and Italian dee shackle.

This Dee shackle is crafted from superior carbon steel and precision-engineered through drop forging, quenching, and tempering for exceptional strength and durability in demanding lifting and rigging applications.

Featuring a secure screw pin design, it is available in hot-dip galvanized, powder-coated, or zinc-plated finishes to provide superior corrosion resistance for marine, construction, and offshore environments.

Ideal for heavy-duty lifting, industrial rigging, and maritime use, this shackle combines reliable performance with versatile load handling capabilities.

Available in sizes ranging from 5mm to 63mm, with custom specifications and markings offered to meet unique project requirements.

To Get A Quote >

Overview of Italy Type Galvanized Dee Shackle

Brand	CLGR®
Origin	China
Technical Notes	Dee shackle conform to Italy Type
Material	Superior Carbon Steel
Processing	Drop Forged / Quenched and Tempered
Finish	Hot Dipped Galvanized / Powder Coated / Zinc Plated
Size	5mm, 6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 40mm, 42mm, 45mm, 50mm, 56mm, 63mm Dee shackle screw pin
Tips	Special specification and marks can be made according to customers' requirements

Specifications of Italy Type Galvanized Dee Shackle

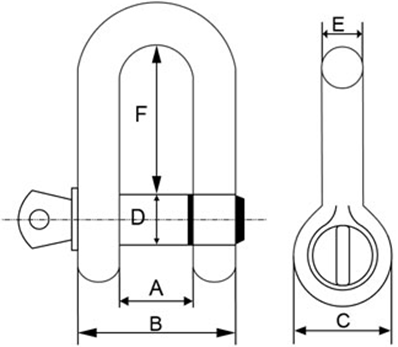

drawing-clgr-of-italy-type-galvanized-dee-shackle-china-supplier

Part No.	Size	A	B	C	D	E	F	S.W.L.	Weight
Part No.	mm								kg
CRITDS05	5	8	18	12	5	5	23	70	0,020
CRITDS06	6	11	23	14	6	6	29	100	0,040
CRITDS08	8	16	32	18	8	8	37	250	0,080
CRITDS10	10	19	38	21	10	10	41	400	0,110
CRITDS11	11	23	45	26	11	11	48	470	0,200
CRITDS12	12	26	50	28	12	12	54	630	0,250
CRITDS14	14	28	56	30	14	14	57	750	0,340
CRITDS16	16	30	64	35	16	16	63	1000	0,510
CRITDS18	18	28	64	37	18	18	62	1300	0,750
CRITDS20	20	35	68	39	20	18,5	65	1600	0,940
CRITDS22	22	41	83	44	22	21	75	2000	1,300
CRITDS25	25	36	80	50	25	22	81	2500	1,600
CRITDS28	28	40	88	56	28	24	90	3150	2,000
CRITDS32	32	45	99	64	32	27	99	4000	2,900
CRITDS36	36	50	110	74	36	30	109	5000	4,300
CRITDS40	40	55	123	80	40	34	120	6300	6,000
CRITDS42	42	60	136	85	42	38	131	8000	7,400
CRITDS45	45	65	149	90	45	42	135	10000	10,000
CRITDS50	50	70	165	103	48	47	155	12500	13,700
CRITDS56	56	80	184	114	56	52	170	16000	16,600
CRITDS63	63	90	204	128	60	57	190	20000	26,500

Also available in Galvanized Bow Shackle Italy Type.
