CLGR® Shackles Similar to Din 82101 Form A/B/C Galvanised

Name: CLGR® Shackles Similar to Din 82101 Form A/B/C Galvanised
Brand: CLGR®

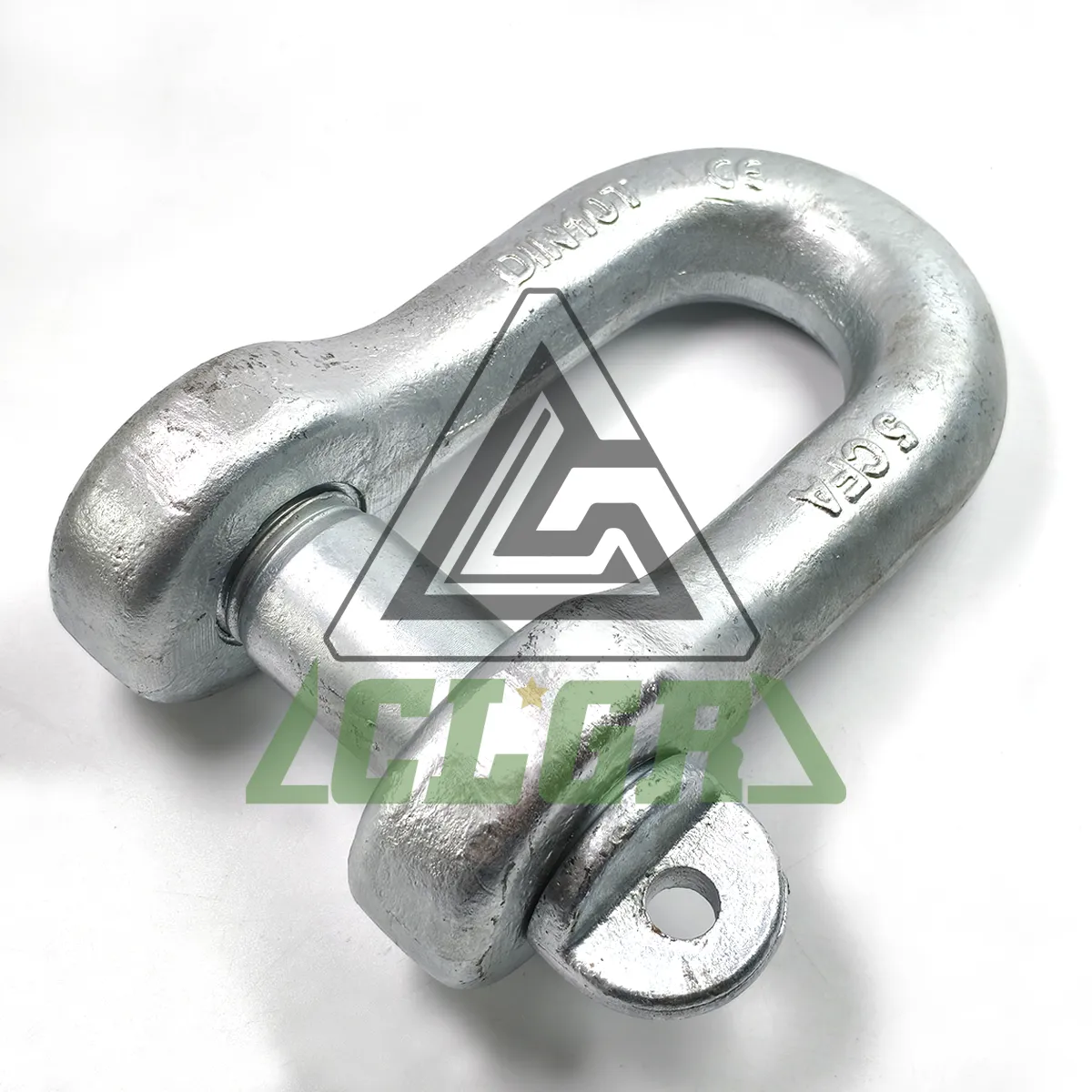

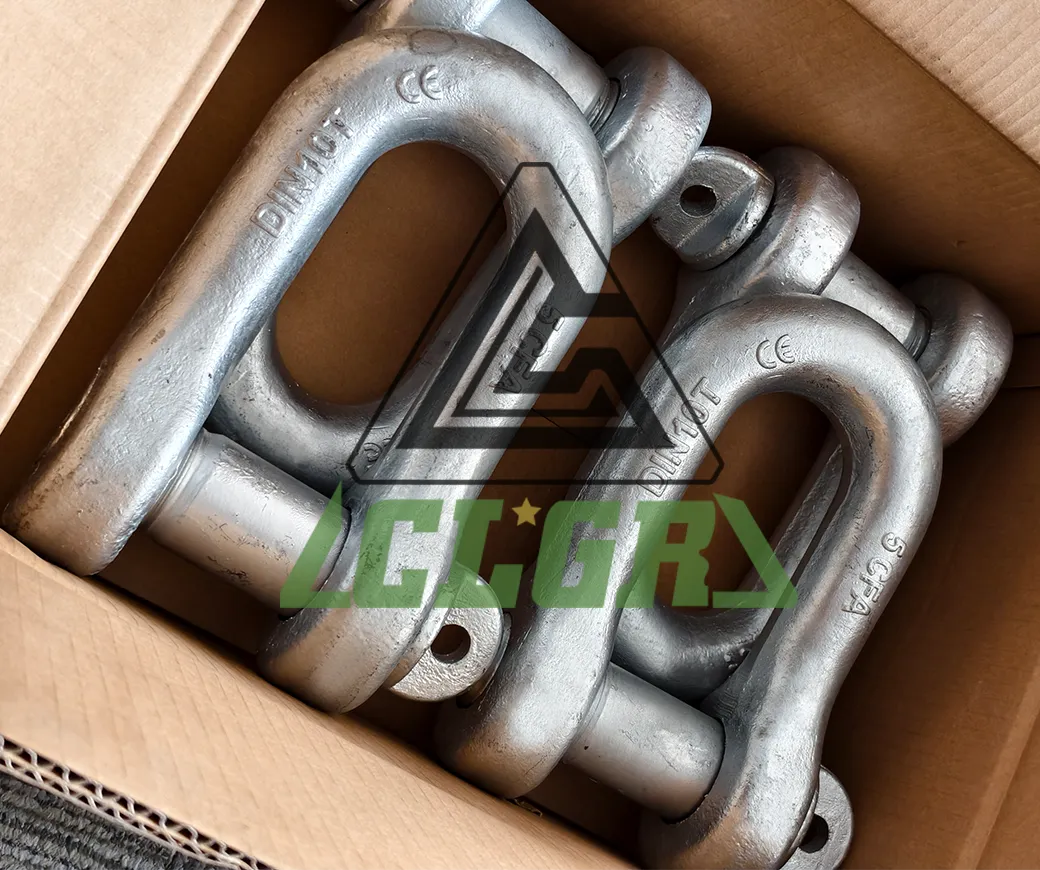

CLGR® Shackles Similar to Din 82101 Form A/B/C Galvanised also known as screw pin shackle, DIN 82101 Form A/B/C Shackle, German standard shackle and Hot dip galvanized DIN 82101 Form C shackle with bolt and nut for heavy lifting.

These premium shackles are manufactured from carbon steel and constructed in a dee (straight) form similar to DIN 82101 specifications.

Available in three secure configurations: Type A with collar pin, Type B with slotted bolt, and Type C with safety bolt, nut and cotter pin.

Forged, quenched and tempered to international quality standards, these shackles provide reliable performance for lifting, rigging and marine applications. Featuring hot-dip galvanized, powder coating or self-colored finishes for corrosion resistance.

Each unit is permanently marked with its working load limit for safety compliance. Ideal for construction, industrial and offshore use.

Available in standard sizes from 3/8" to 1-5/8" with custom specifications supported upon request.

To Get A Quote >

Overview of Shackles Similar to Din 82101 Form A/B/C Galvanised

Brand	CLGR®
Origin	China
Technical Notes	Bow shackle conforms to B.S. 3032
Processing	Forged / Quenched and Tempered
Finish	Galvanized, Powder Coating, or Self Colored
Size	3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″
Note	Working Load Limit Permanently Shown on Every Shackle.

Specifications of Shackles Similar to Din 82101 Form A/B/C Galvanised

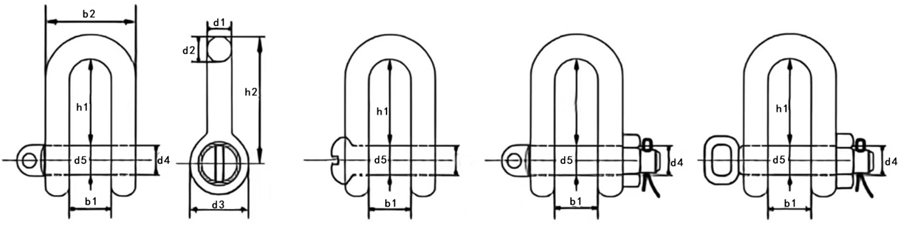

Size			SWL	b1	b2	d1	d2	d3	d4	d5	h1	h2	g /WEIGHT PER 100 PIECES
Size													g /WEIGHT PER 100 PIECES
Type													Type
A	B	C	kn *)	mm	mm	mm	mm	mm		mm	mm	mm	A	B	C
0.06	—	—	0.6	6	13	3.5	4	8	M4	4	12	18	0.007	—	—
0.1	—	—	1	7	15	4	5	10	M5	5	15.5	23	0.013	—	—
0.16	—	—	1.6	8	18	5	6	12	M6	6	18	27	0.024	—	—
0.25	—	—	2.5	11	25	7	8	16	M8	8	24	36	0.045	—	—
0.4	1	—	4	14	30	8	10	20	M10	10	30	45	0.09	0.085	—
0.6	1.6	—	6.3	17	37	10	12	24	M12	12	36	54	0.17	0.16	—
1	1	1	10	21	47	13	15	32	M16	16	49	72	0.36	0.35	0.4
1.6	1.6	1.6	16	27	61	17	19	40	M20	20	61	90	0.75	0.73	0.81
2	2	2	20	30	68	19	21	44	M22	22	67	99	1	0.97	1.08
2.5	2.5	2.5	25	33	75	21	23	48	M24	24	73	108	1.32	1.28	1.42
3	3	3	31.5	38	86	24	26	54	M27	27	83.5	123	1.8	1.7	2.03
4	4	4	40	42	96	27	29	60	M30	30	91	135	2.4	2.3	2.7
5	5	5	50	47	107	30	33	72	M36	36	111	162	3.9	3.7	4.4
6	6	6	63	53	121	34	37	78	M39	39	119.5	176	5.3	5.1	5.9
8	8	8	80	60	136	38	41	90	M45	45	139.5	203	7.9	7.6	8.5
10	10	10	100	66	150	42	45	96	M48	48	147	216	10	9.7	10.8
12	12	12	125	73	167	47	50	104	M52	52	158	234	13	12.9	14
16	16	16	160	81	185	52	55	120	M60	60	185	270	18.5	18.1	19.3
20	20	20	200	90	206	58	61	136	M68	68	211	306	27.2	26.8	28.2
—	—	25	250	100	226	63	67	144	M72×6	72	221	324	—	—	35.5
—	—	32	315	110	250	70	74	160	M80×6	80	246	360	—	—	49.5
—	—	40	400	125	283	79	84	180	M90×6	90	276	405	—	—	69
—	—	50	500	140	316	88	93	200	M100×6	100	307	450	—	—	93
—	—	63	630	155	347	96	101	220	M110×6	110	339	459	—	—	125
—	—	80	800	175	395	110	115	250	M125×6	125	385.5	563	—	—	180
—	—	100	1	200	450	125	130	280	M140×6	140	430	630	—	—	260
