CLGR® Bow Shackle with Square Head Pin Blue Painted High Tensile for Trawling

Name: CLGR® Bow Shackle with Square Head Pin Blue Painted High Tensile for Trawling
Brand: CLGR®

CLGR® Trawling Gear Bow Shackle with Square Head Pin Blue Painted High Tensile, also referred to as Anchor Shackle Square Head Pin, Trawling Bow Shackle, and Square Head Bow Shackle.

Bow Shackle is made of superior mild steel and it is a connecting component usually used with a removable pin. Working Load Limits shown on every shackle. Also, as one of the leading shackles manufacturers, we have done stress testing for samples of each batch. Anchor Shackle with Square Head Pin comes with handy square head pin which you can fasten the pin by hand. And the shackles for sale are commonly used in the marine industry for trawling.

CLGR® Bow Shackles Square Head Pin are available in many sizes: 10×12mm, 12×16mm, 16×19mm, 19×22mm, 22×25mm, 25×28mm, 28×32mm, 32×35mm. Special specifications and marks can be made according to customers' requirements.

To Get A Quote >

Bow Shackle with Square Head Pin Blue Painted for Trawling

Bow Shackle with Square Head Pin Blue Painted for Trawling China Manufacturer

Bow Shackle with Square Head Pin Blue Painted for Trawling China

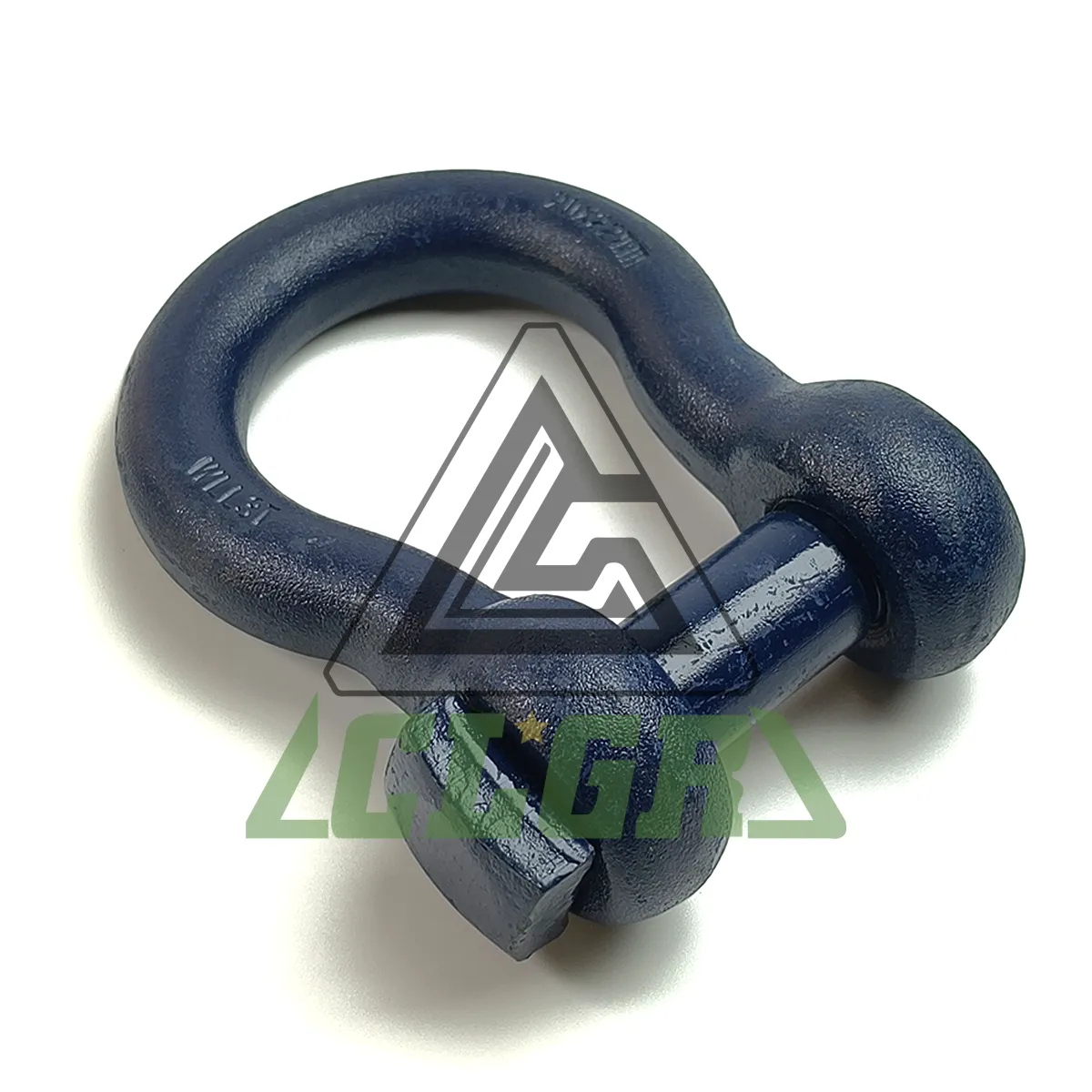

Bow Shackle with Square Head Pin Blue Painted for Trawling China Factory

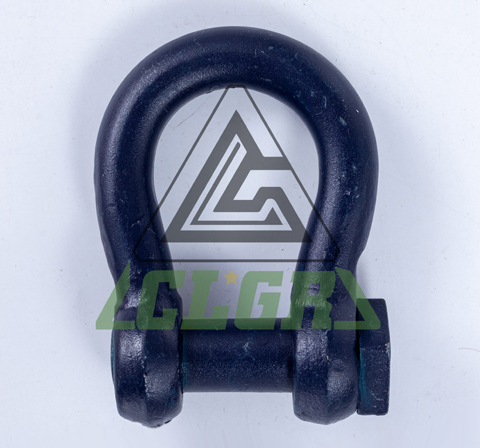

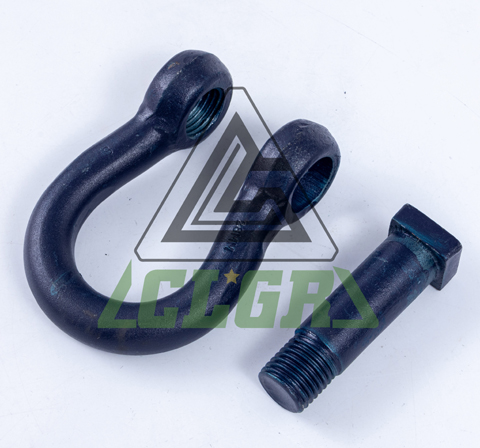

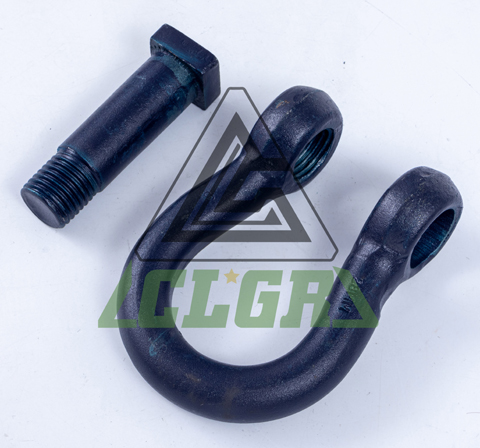

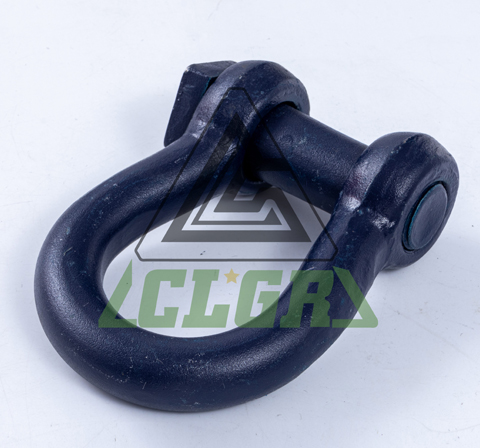

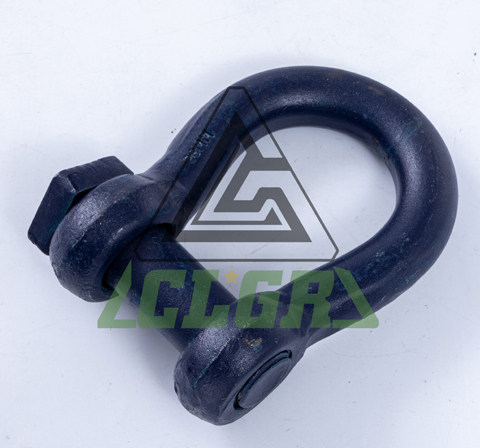

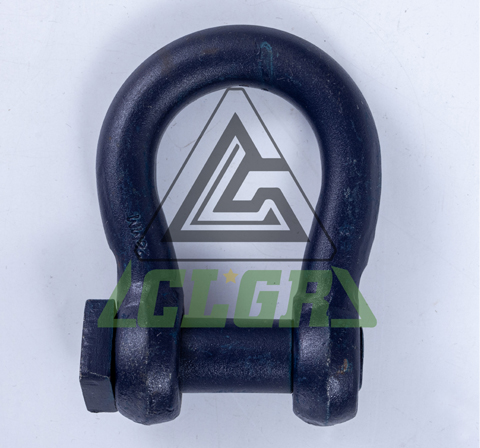

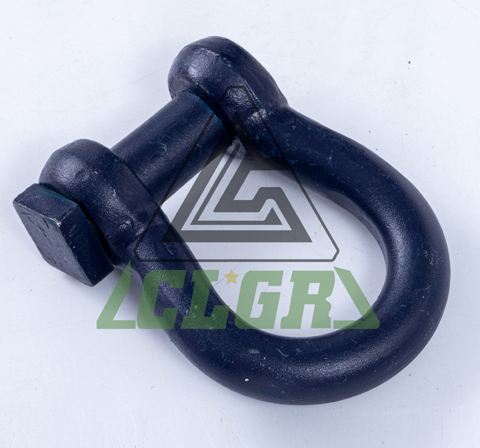

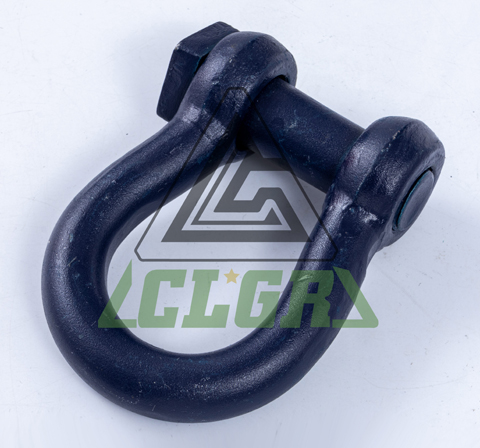

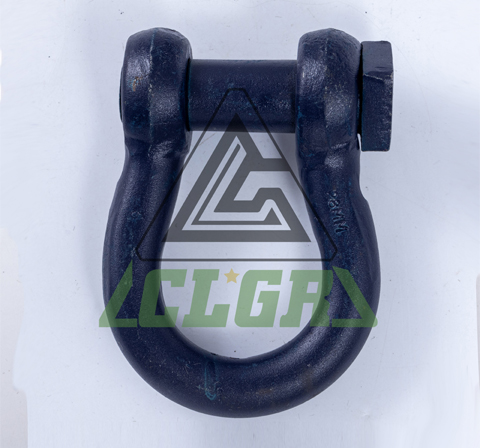

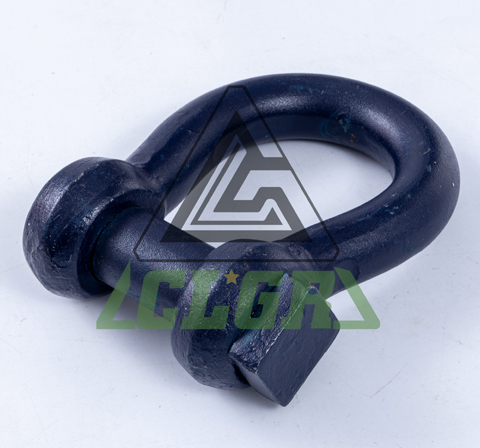

CLGR® Bow Shackle with Square Head Pin for Trawling

 

Overview of High Tensile Bow Shackle with Square Head Pin Blue Painted

Brand	CLGR®
Size	10×12mm, 12×16mm, 16×19mm, 19×22mm, 22×25mm, 25×28mm, 28×32mm, 32×35mm
WLL	1Ton, 1.5Ton, 2.5Ton, 3Ton, 4Ton, 5Ton, 6Ton, 7Ton
Material	Superior Mild Steel
Surface Finish	Self-Colored / Blue or Black Painted
Processing	Drop Forged
Important Note	Not suitable for lifting applications

Specification of High Tensile Bow Shackle with Square Head Pin Blue Painted

Part No.	WLL tonnes	Body dia. × Pin dia.	Inner Length	Inner Width	Weight/kg
CRTBSS10	1.0	10×12mm	–	–	–
CRTBSS12	1.5	12×16mm	–	–	–
CRTBSS16	2.5	16×19mm	–	–	–
CRTBSS19	3.0	19×22mm	75mm	52mm	0.86
CRTBSS22	4.0	22×25mm	90mm	59mm	1.44
CRTBSS25	5.0	25×28mm	97mm	67mm	1.91
CRTBSS28	6.0	28×32mm	106mm	77mm	2.77
CRTBSS32	7.0	32×35mm	114mm	79mm	3.72

Bulk Photos of High Tensile Bow Shackle with Square Head Pin Blue Painted

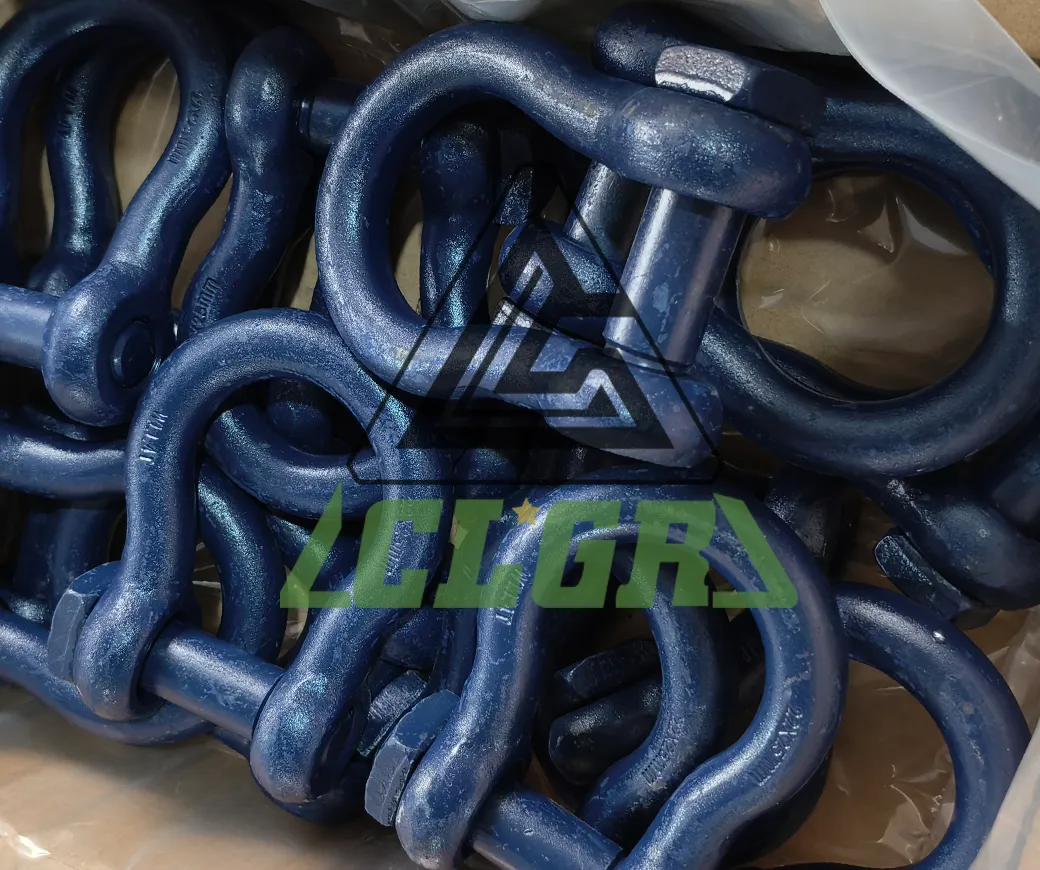

High Tensile Bow Shackle with Square Head Pin Blue Painted china manufacturer

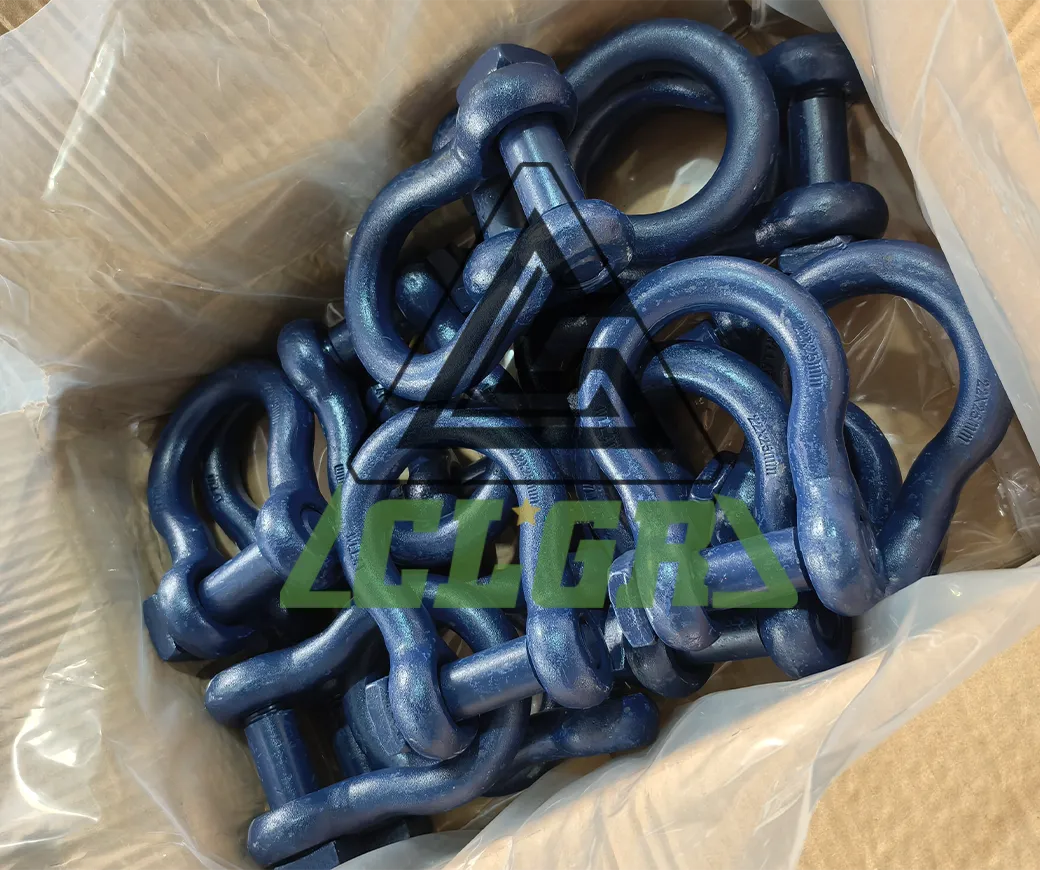

High Tensile Bow Shackle with Square Head Pin Blue Painted China supplier

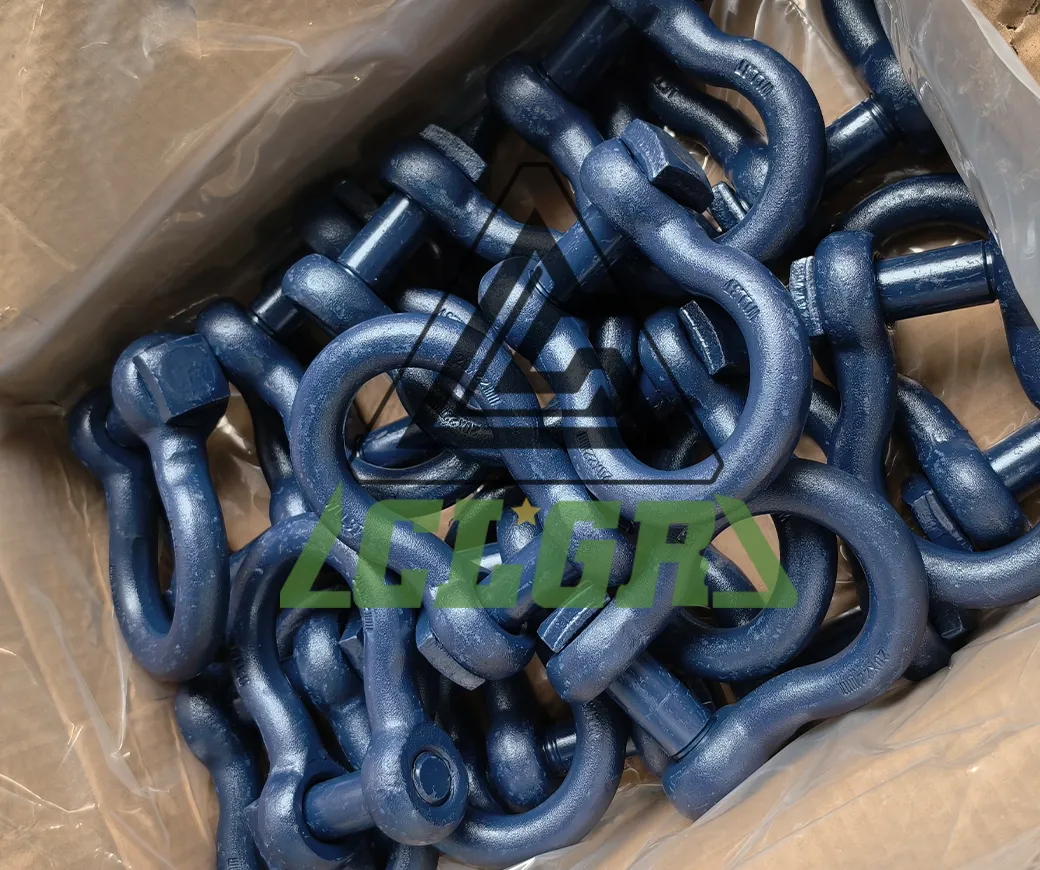

High Tensile Bow Shackle with Square Head Pin Blue Painted different spec.

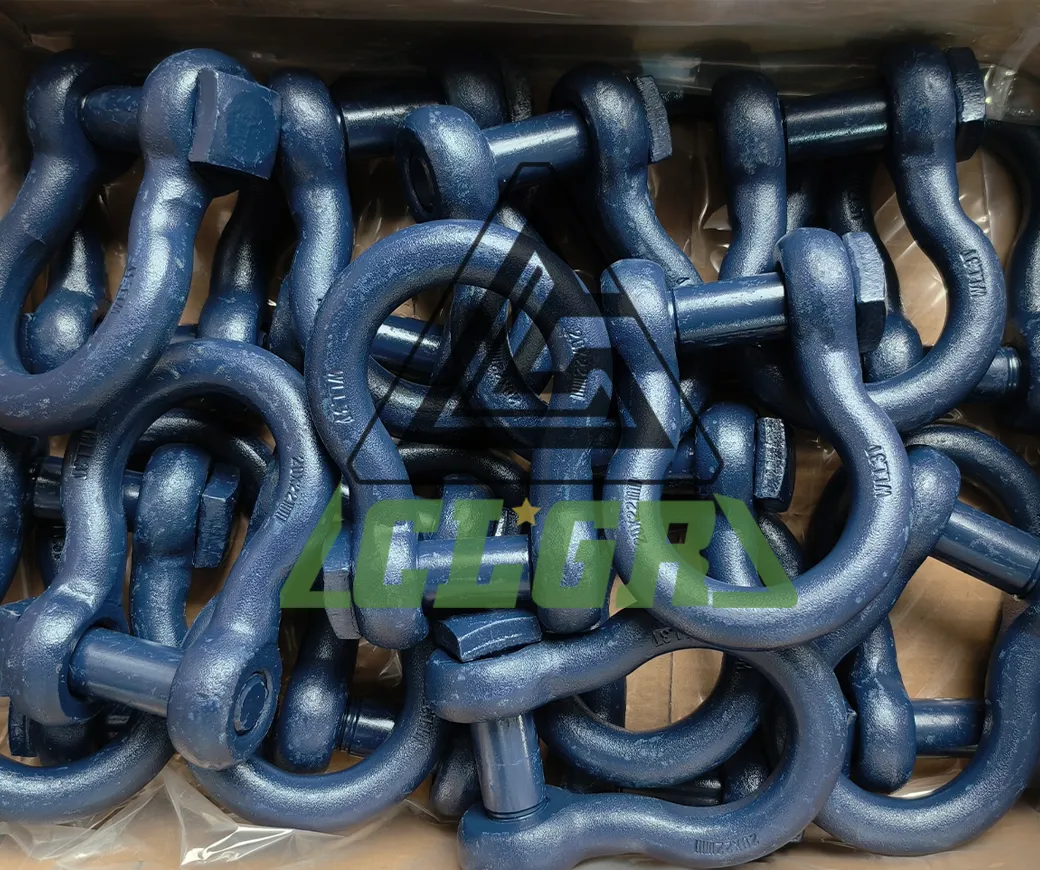

High Tensile Bow Shackle with Square Head Pin Blue Painted wholesale

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
