CLGR® Mooring Shackle No 852 Bolt Type Pin also known as Bolt type pin shackle, Safety pin and nut shackle, Offshore shackle and Heavy duty safety pin mooring shackle 150T.
Mooring shackles have a wide gap opening, extended inner height and width. The bolt is oversized with a nut with an oversized hole in the bolt to enable easy assembling of the split pin or bolt. The surface of the shackles for sale is galvanized, meeting US federal specifications for strength and durability.
The shackles for sale are used for a long-term or permanent connection, such as slings, cables, and chains. The shackles for sale are commonly used in construction and maritime.
CLGR® Bolt Type Mooring Shackle is available in a range of sizes. Special specifications and marks can be made according to customers’requirements.
| Brand | CLGR® |
| Size | 28T, 40T, 60T, 90T, 150T |
| Material | Body Superior Carbon Steel, Screw Pin: Alloy Steel |
| Surface Finish | Body Hot Dipped Galvanized, Powder Coated, Zinc Plated, Screw Pin Powder Coated, Zinc Plated |
| Processing | Drop Forged |
| Important Note | Not suitable for lifting applications |

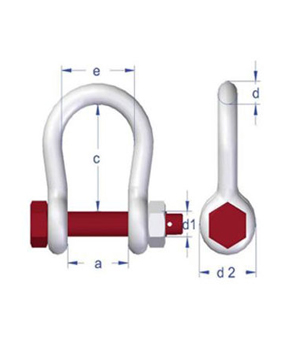

| Part No. | Description | Weight/kg | MBL[t] | e mm | a mm | c mm | d mm | d2 mm | dl mm |
| CRMSO030 | 3OT CR Mooring Shackle | 1.38 | 30 | 58 | 44 | 100 | 20 | 47 | 22 |
| CRMSO040 | 40T CR Mooring Shackle | 2.06 | 40 | 68 | 52 | 125 | 22 | 50 | 25 |
| CRMSO060 | 6OT CR Mooring Shackle | 3.76 | 60 | 89 | 62 | 150 | 28 | 58 | 28 |
| CRMSO090 | 9OT CR Mooring Shackle | 5.74 | 90 | 98 | 84 | 170 | 32 | 72 | 34 |
