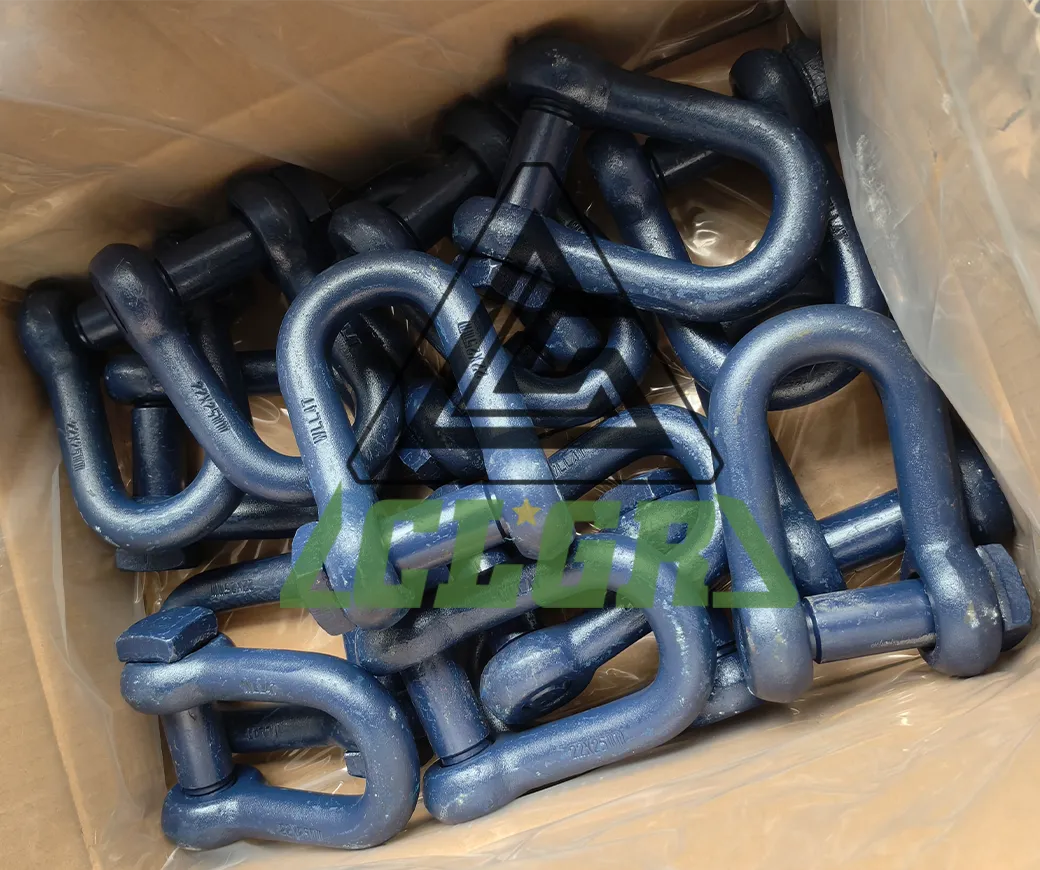

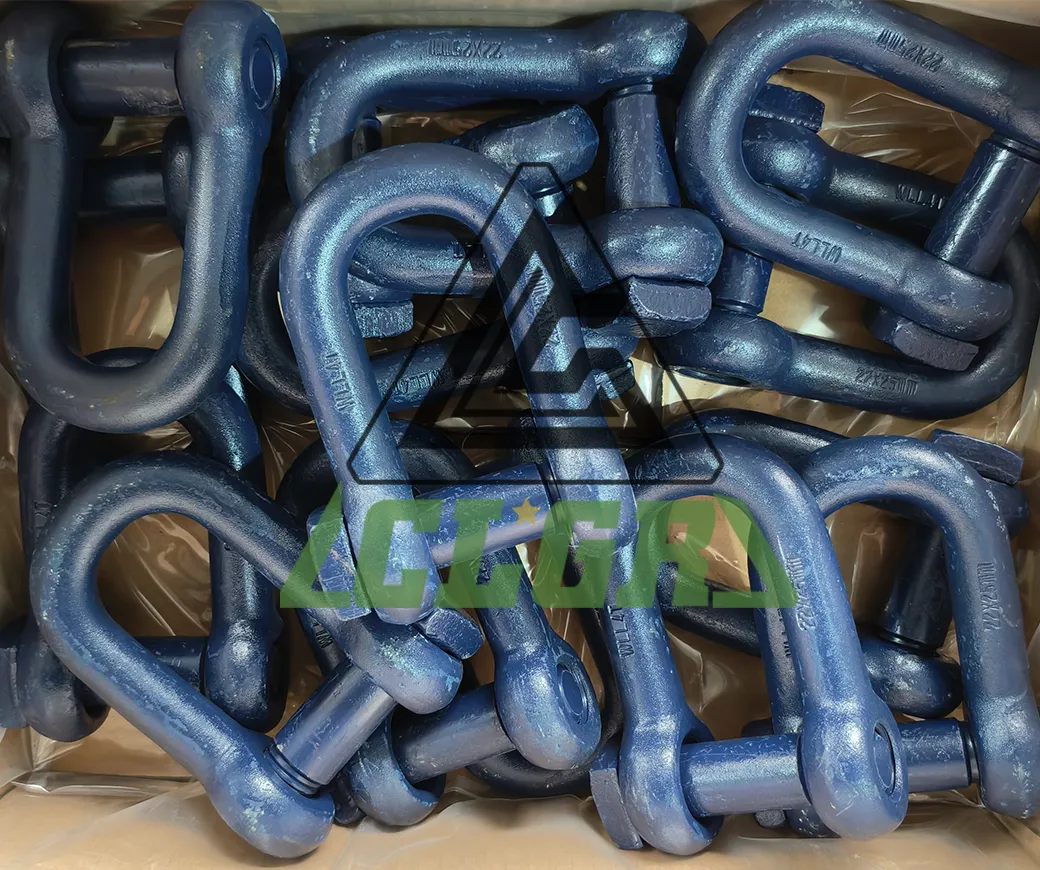

CLGR® Chain Shackle with Square Head Pin Blue Painted High Tensile, also known as D/Dee Shackle Square Head Pin, Trawling Shackle and Blue Painted Dee Shackle..

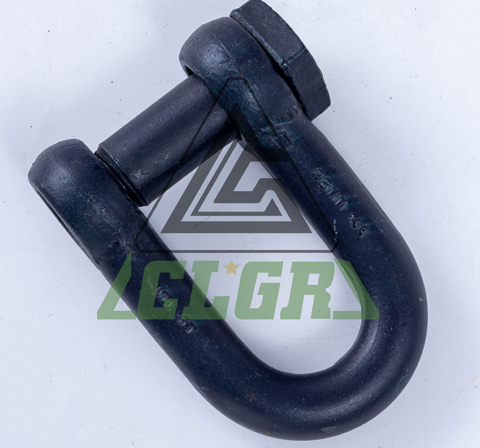

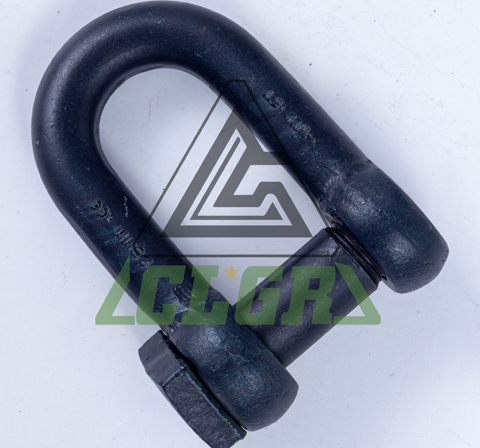

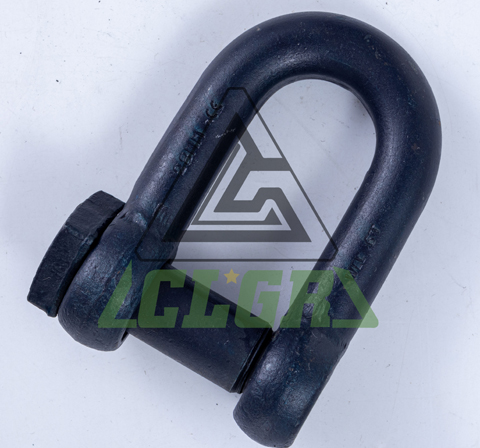

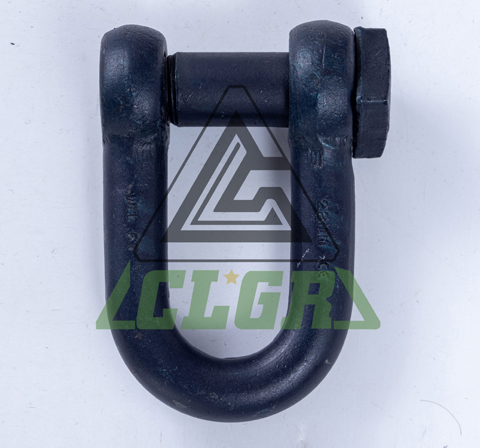

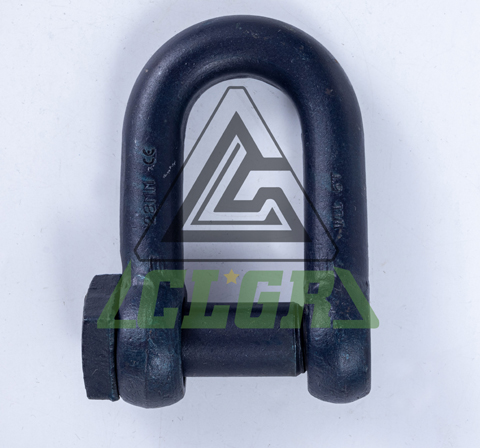

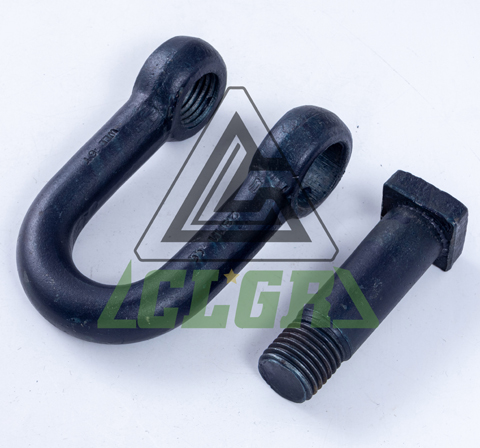

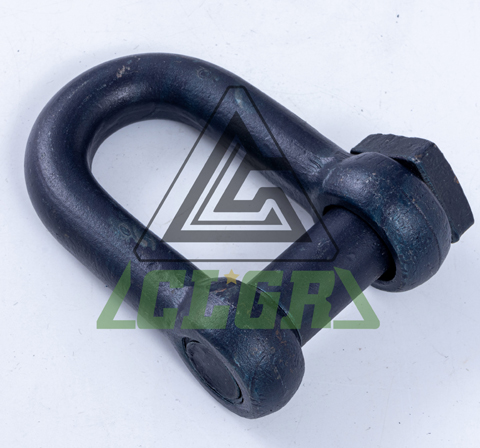

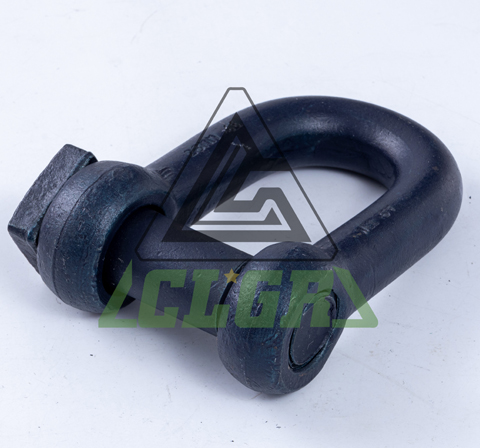

D shackle with square head pin, made from superior mild steel, and surface finished blue painted. Chain Shackle comes with handy square head pin which you can fasten the pin by hand. Safety factor of Square Head Dee Shackle for trawl is MBL equals 4 × WLL. And it is commonly used in the fishing and trawling industry.
Chain Shackle with Square Head Pin is available in a range of sizes: 10×12mm, 12×16mm, 16×19mm, 19×22mm, 22×25mm, 25×28mm, 28×32mm, 32×35mm. Special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
| Size | 10×12mm, 12×16mm, 16×19mm, 19×22mm, 22×25mm, 25×28mm, 28×32mm, 32×35mm |
| WLL | 1Ton, 1.5Ton, 2.5Ton, 3Ton, 4Ton, 5Ton, 6Ton, 7Ton |
| Material | Superior Mild Steel |
| Surface Finish | Self-Colored / Blue or Black Painted |
| Processing | Drop Forged |
| Important Note | Not suitable for lifting applications |
| Part No. | WLL tonnes | Body dia.x Pin dia. | Inner Length | Inner Width | Weight/kg |
| CRTDSSP10 | 1.0 | 10x12mm | - | - | - |
| CRTDSSP12 | 1.5 | 12x16mm | - | - | - |
| CRTDSSP16 | 2.5 | 16x19mm | - | - | - |
| CRTDSSP19 | 3.0 | 19x22mm | 70mm | 34mm | 0.79 |
| CRTDSSP22 | 4.0 | 22x25mm | 78mm | 38.5mm | 1.33 |
| CRTDSSP25 | 5.0 | 25x28mm | 91mm | 45.6mm | 1.8 |
| CRTDSSP28 | 6.0 | 28x32mm | 95mm | 56mm | 2.6 |
| CRTDSSP32 | 7.0 | 32x35mm | 104mm | 54mm | 3.48 |
