CLGR® Piling Shackle Long D Shackle

Name: CLGR® Piling Shackle Long D Shackle
Brand: CLGR®

CLGR® Piling Shackle Long D Shackle also known as Long Dee Piling Shackle and Heavy duty piling shackle.

Engineered for demanding construction and foundation applications, this long D piling shackle is forged from high-tensile Grade 4 steel and features a 5:1 safety factor for reliable performance in ground shoring, sheet pile connecting, and excavation support systems.

Available in self-color, zinc-plated, or hot-dip galvanized finishes to provide superior corrosion resistance in harsh job site conditions.

Ideal for construction, piling, and shoring projects where extended reach and durable connections are required.

Custom specifications and identification marks can be provided to meet specialized project requirements.

To Get A Quote >

Overview of Piling Shackle Long D Shackle

Brand	CLGR®
Origin	China
Material	High Tensile Steel Grade 4
WLL	5: 1
Processing	Forged
Finish	Self-color / Zinc Plated / Hot Dipped Galvanized
Tips	Special specification and marks can be made according to customers' requirements

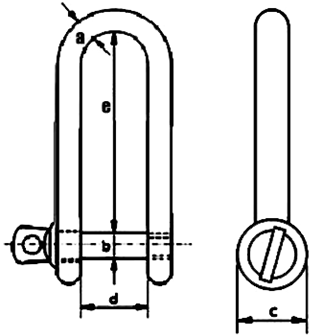

Specifications of Piling Shackle Long D Shackle

Part No.	WLL	Diameter Bow	Diameter Pin	Diameter Eye	Width Inside	Length Inside	Weight Each


	tons	a mm	b mm	c mm	d mm	e mm	kg
CR-PS-13-16	1	13	16	32	22	152	0.55
CR-PS-16-19	1.5	16	19	38	32	203	0.95
CR-PS-19-22	2	19	22	45	38	203	1.64
CR-PS-22-25	3	22	25	50	45	254	2.29
CR-PS-25-28	3.75	25	28	57	50	254	3.4
CR-PS-28-32	5	28	32	64	54	305	5.05
