CLGR® High Tensile Chain Shackle Square Pin Yellow Pin for Trawling, also known as D/Dee Shackle Square Head Pin.
This Chain Shackle features a high-tensile carbon steel body and an alloy steel pin for superior strength. Working Load Limits (WLL) shown on every shackle, it has the highest factor 6 to 1 in the industry. Also, we have done stress testing for samples of each batch. Dee Shackle comes with handy square head pin which you can fasten the pin by hand.
CLGR® Dee Shackle is available in a range of sizes, including 1/2″,5/8″,3/4″,7/8″,1″,1 1/8″ ,1 1/4″ ,1 3/8″,1 1/2″. Special specifications and marks can be made according to customers’ requirements.
| Brand | CLGR® |
| Size | 1/2″,5/8″,3/4″,7/8″,1″,1 1/8″ ,1 1/4″ ,1 3/8″,1 1/2″ |
| Standard | U.S. Federal Specification |
| Safety Factor | 6:1 |
| Material | Body：45# Steel Screw Pin: Alloy Steel |
| Surface Finish | Self- Colored, Zinc Plated, Hot Dipped Galvanized. |
| Processing | Drop Forged, Heat Treatment |

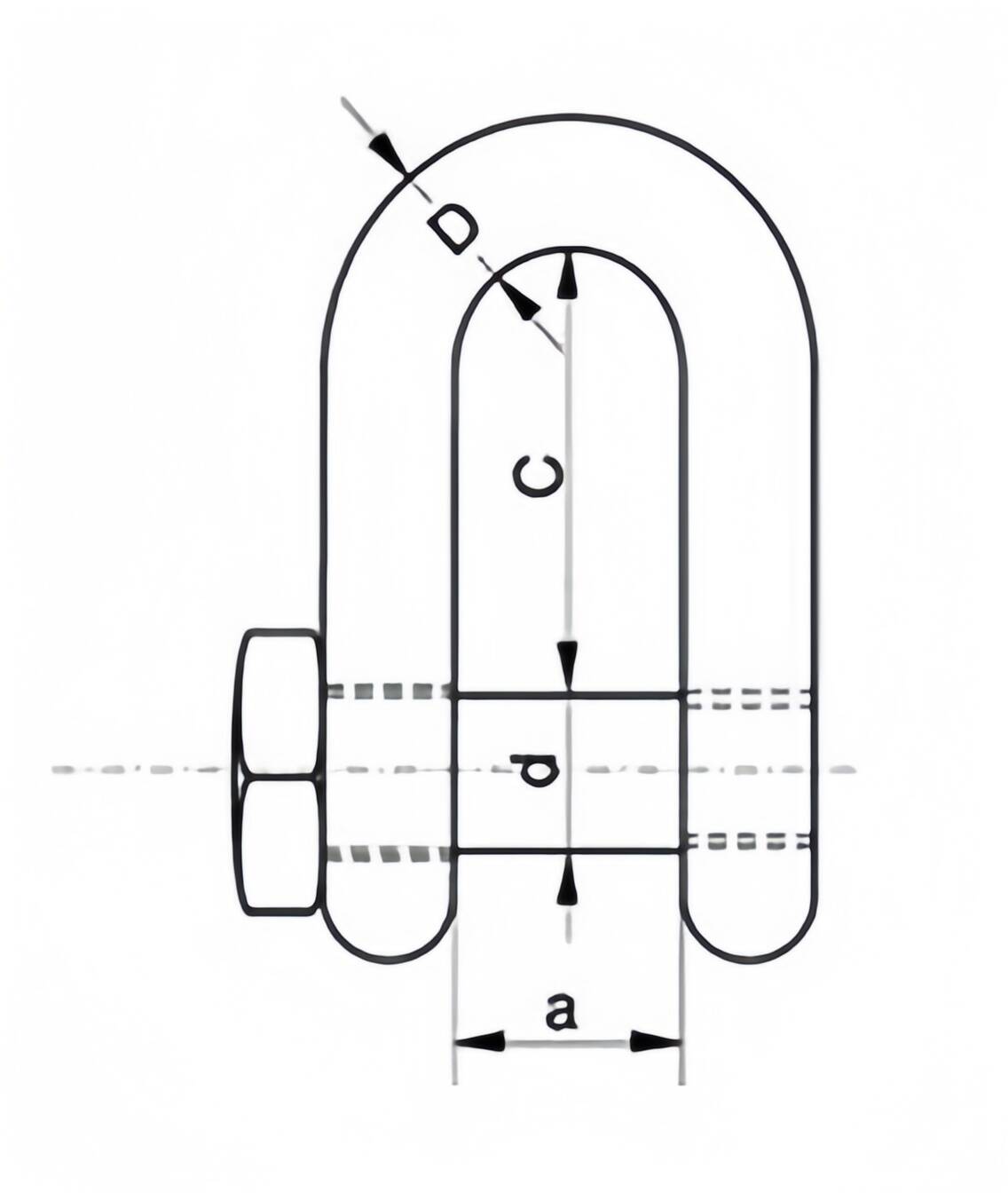

| Part No. | Size | WLL | d (mm) | D (mm) | a (mm) | C (mm) | weight | |
| in | mm | ton | kg/piece | |||||
| CRDSSHPUS12 | 1/2'' | 12.7 | 2 | 16 | 13 | 22 | 43 | 0.34 |
| CRDSSHPUS58 | 5/8'' | 16 | 3.25 | 19 | 16 | 27 | 51 | 0.63 |
| CRDSSHPUS34 | 3/4'' | 19 | 4.75 | 22 | 19 | 31 | 59 | 0.95 |
| CRDSSHPUS78 | 7/8'' | 22 | 6.5 | 25 | 22 | 36 | 73 | 1.55 |
| CRDSSHPUS01 | 1'' | 25 | 8.5 | 28 | 25 | 43 | 85 | 2.3 |
| CRDSSHPUS118 | 11/8'' | 28 | 9.5 | 32 | 28 | 47 | 90 | 3.24 |
| CRDSSHPUS114 | 11/4'' | 32 | 12 | 35 | 32 | 51 | 94 | 4.4 |
| CRDSSHPUS138 | 13/8'' | 35 | 13.5 | 38 | 35 | 57 | 115 | 6 |
| CRDSSHPUS112 | 11/2''' | 38 | 17 | 42 | 38 | 60 | 127 | 8 |
