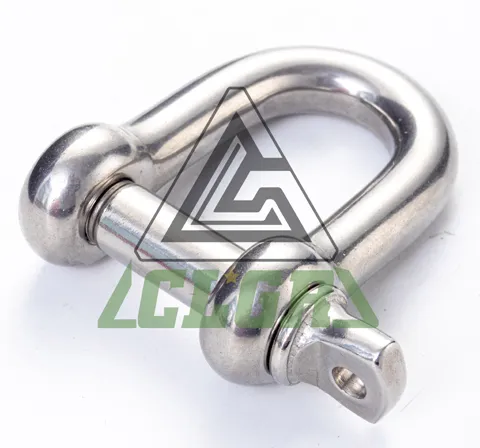

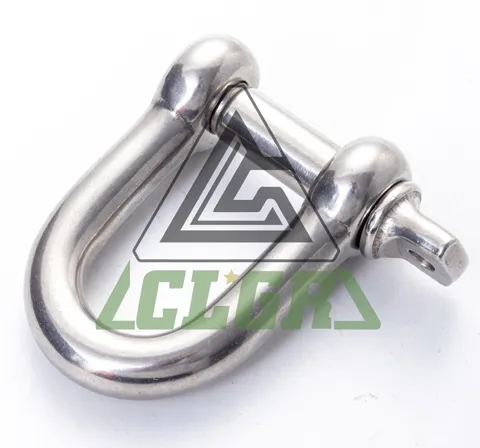

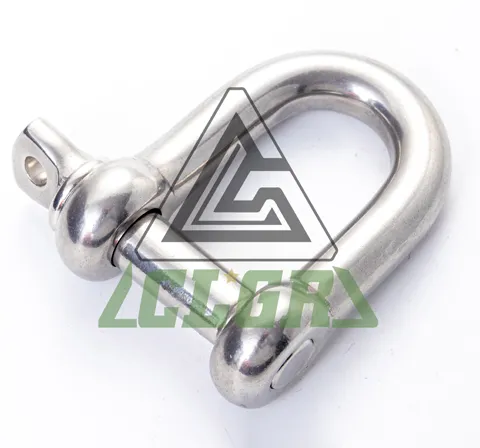

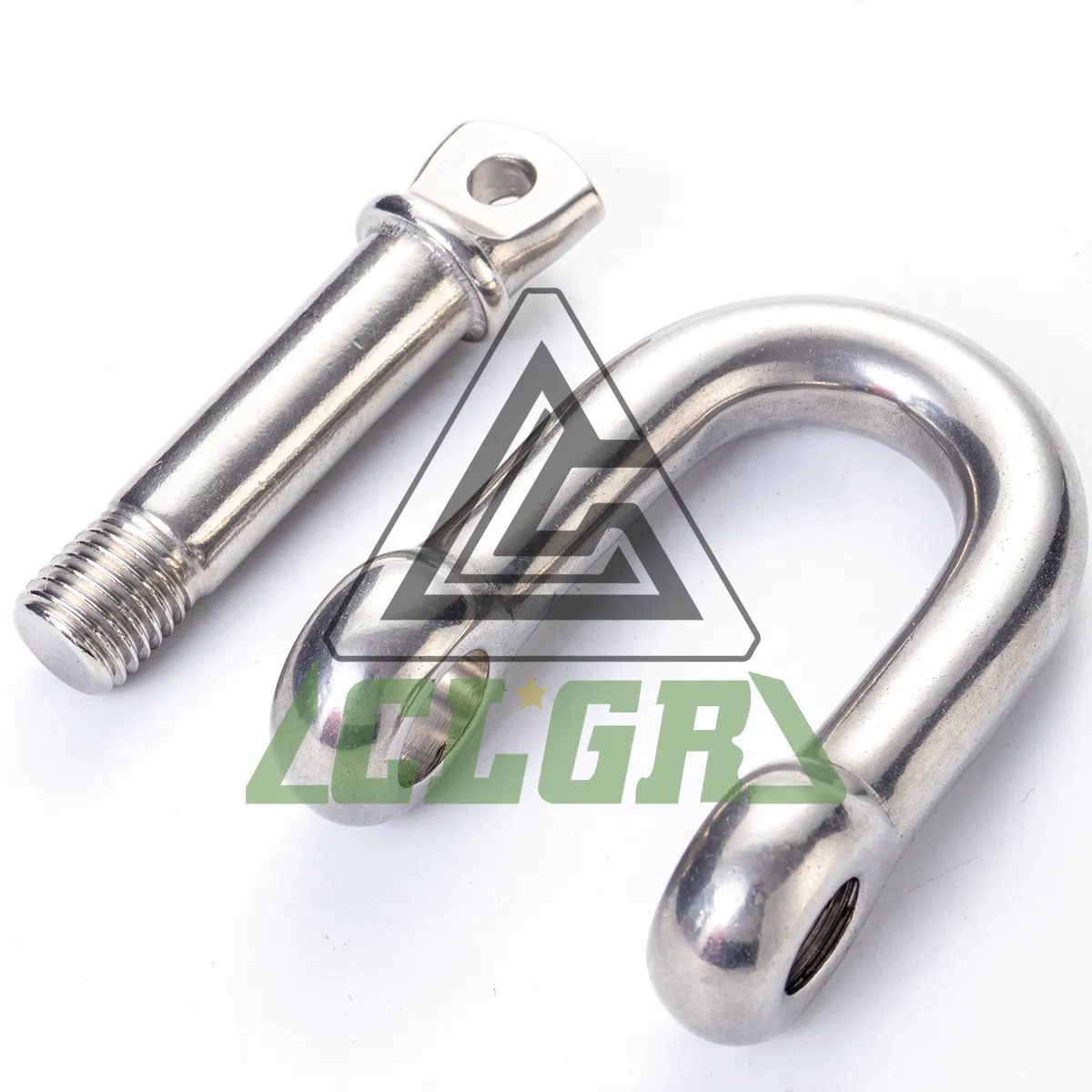

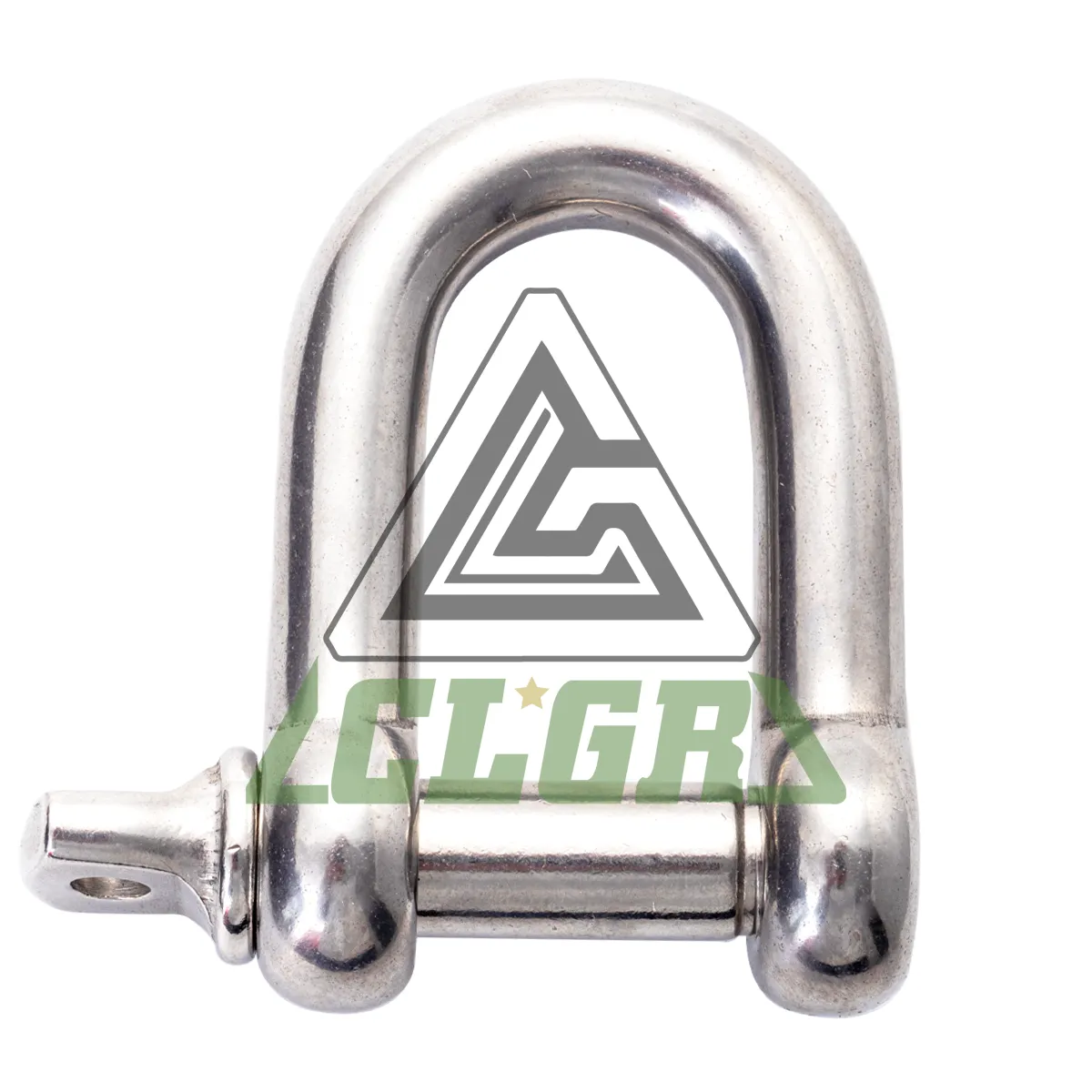

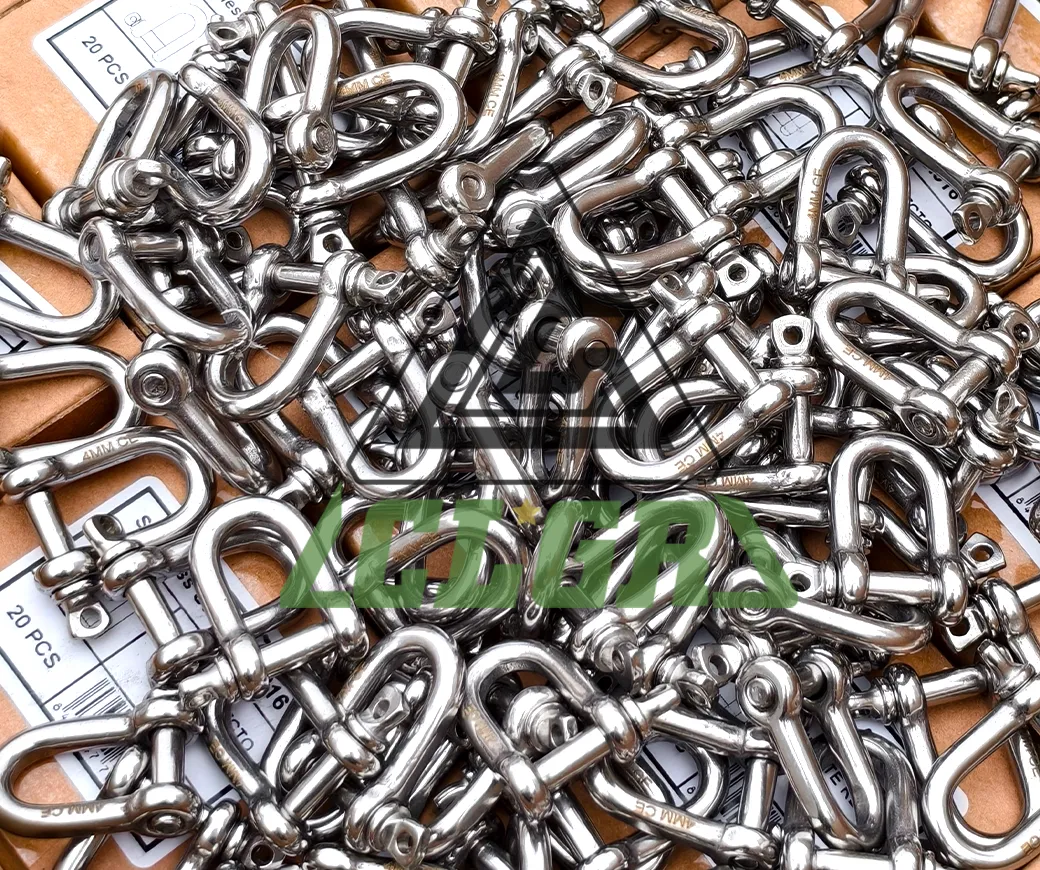

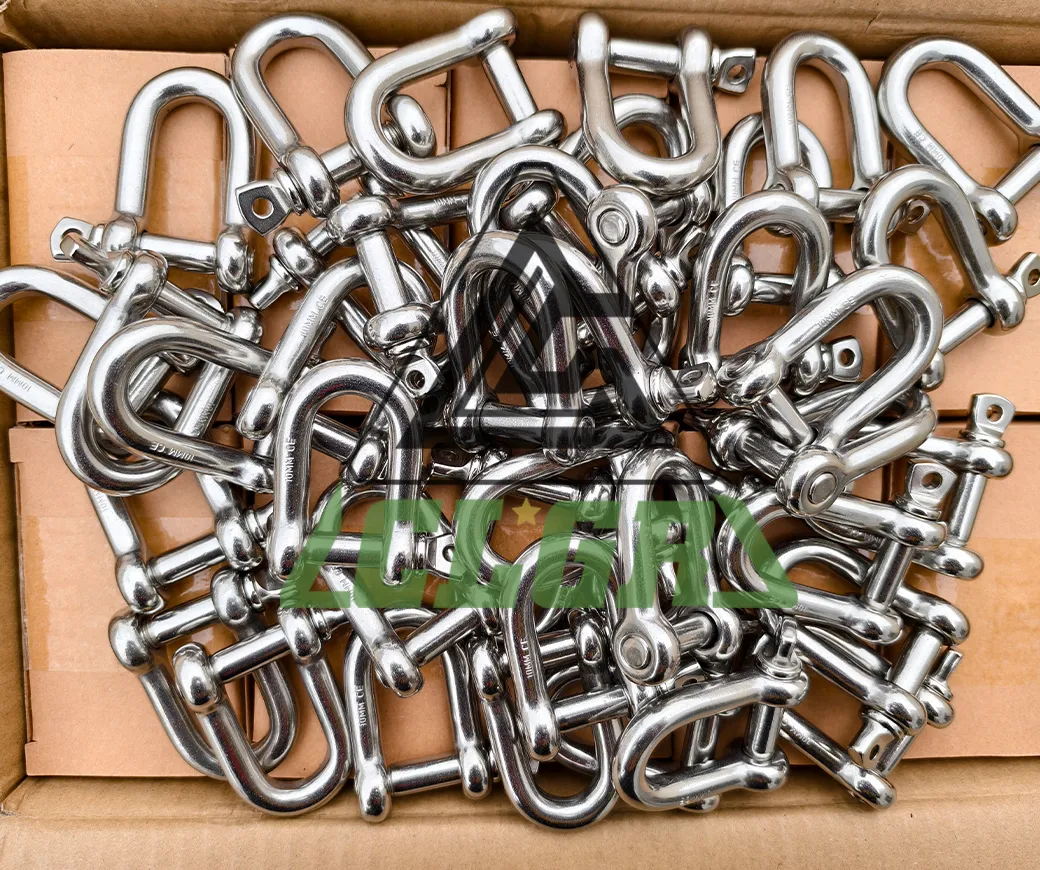

CLGR® Stainless Steel D Shackle Screw Pin is also called Dee Shackle with Screw Pin and Chain Shackle with Screw Pin.
D Shackle Screw Pin is made of marine grade 316 stainless steel with polished surface. It has excellent corrosion resistance even in the harshest marine environments. Typical applications for the Stainless-Steel Dee Shackle are offshore towing, industrial rigging and construction projects.
CLGR® Stainless Steel Chain Shackle is forged for extreme strength and durability, and is easy to install and remove.
CLGR®, one of the professional shackles manufacturers, offers sizes from 4mm to 38 mm, special specifications and marks can be made according to customers' requirements.
For matched wire ropes, chains, or other fishing riggings, please visit our product lines.
| Brand | CLGR® |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm,38mm |
| Standard | European Type |
| Material | Stainless Steel grade 304 or 316 |
| Surface Finish | Highly Polishing, Electrophoretic Coating |
| Processing | Forged, Stamping |
| Important Note | Not suitable for lifting applications |
Stainless steel bow shackle screw pin also supply.
Part No. | Size | D | C | A | B | MBL |
mm | KN | |||||
CRSSDSSHP04 | 4 | 16 | 8 | 4 | 4 | 5.8 |
CRSSDSSHP05 | 5 | 20 | 10 | 5 | 5 | 9.1 |
CRSSDSSHP06 | 6 | 24 | 12 | 6 | 6 | 13.2 |
CRSSDSSHP08 | 8 | 32 | 16 | 8 | 8 | 23.7 |
CRSSDSSHP10 | 10 | 40 | 20 | 10 | 10 | 37.3 |
CRSSDSSHP12 | 12 | 48 | 24 | 12 | 12 | 54.9 |
CRSSDSSHP14 | 14 | 56 | 28 | 14 | 14 | 74.8 |
CRSSDSSHP16 | 16 | 64 | 32 | 16 | 16 | 97.7 |
CRSSDSSHP18 | 18 | 72 | 36 | 18 | 18 | 136.1 |
CRSSDSSHP20 | 20 | 76 | 40 | 20 | 20 | – |
CRSSDSSHP22 | 22 | 88 | 44 | 22 | 22 | 184.7 |
CRSSDSSHP25 | 25 | 100 | 50 | 25 | 25 | – |
CRSSDSSHP28 | 28 | 112 | 56 | 28 | 28 | 223.8 |
CRSSDSSHP32 | 32 | 128 | 64 | 32 | 32 | 353.6 |
CRSSDSSHP36 | 36 | 144 | 72 | 36 | 36 | – |
CRSSDSSHP38 | 38 | 152 | 76 | 38 | 38 | – |
FAQS
1. What is the difference between 304 and 316 stainless steel for shackles?
The key difference is corrosion resistance. 316 stainless steel contains molybdenum, which provides superior protection against saltwater and chlorides, making it ideal for marine and trawling applications. 304 stainless steel is suitable for general industrial use where saltwater exposure is not a concern. We offer both 304 and 316 stainless steel shackles to meet your specific environment and budget.
2. What sizes and breaking loads are available for this screw pin shackle?
We offer sizes from 4mm to 38mm, with MBL ranging from 5.8kN to 353.6kN. This stainless steel screw pin shackle is available in both 304 and 316 stainless steel. Please refer to the specification table for detailed dimensions and load ratings.
3. Is this screw pin shackle suitable for marine and towing applications?
Yes. Both our 304 and 316 stainless steel shackles are forged for strength and feature a polished surface for added corrosion resistance. For marine, offshore, and trawling applications, we strongly recommend the 316 stainless steel version for its superior resistance to saltwater corrosion, outperforming regular stainless steel screws and fasteners.
4. Can I get this D shackle with customized markings or special sizes?
Yes, we offer customization for 316 stainless steel bolts, screw pin shackles, and other rigging hardware. We can provide special markings, specific sizes, and different surface finishes. Contact us with your specifications.
