CLGR® Hexagon Socket Pin Bow Shackle Stainless Steel

Name: CLGR® Hexagon Socket Pin Bow Shackle Stainless Steel
Brand: CLGR®

CLGR® Hexagon Socket Pin Bow Shackle Stainless Steel also known as Stainless Steel Bow Shackle with Countersunk Hex Socket Pin, Hex key bow shackle and Allen key bow shackle.

Certified to European standards, these rated stainless steel shackles feature an innovative hexagon socket pin design that provides enhanced security and prevents unauthorized removal in demanding applications.

Crafted from AISI 304/316 stainless steel through forging and stamping processes, these rated stainless steel shackles offer exceptional corrosion resistance for marine, offshore, and industrial environments. These rated stainless steel shackles undergo highly polished or electrophoretic coating finishes for superior durability and aesthetic appeal.

Ideal for sailing, rigging, and security-conscious lifting systems, these rated stainless steel shackles' bow-shaped design accommodates multi-directional loads while the hex socket pin requires specialized tools for operation, ensuring tamper-resistant connections.

These rated stainless steel shackles are suitable for both permanent installations and applications where vandalism prevention is crucial.

Available in sizes from 5mm to 14mm, these European-type rated stainless steel shackles combine advanced security features with excellent corrosion resistance.

Custom specifications and identification markings can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

 

Overview of Hexagon Socket Pin Bow Shackle Stainless Steel

Brand	CLGR®
Origin	China
Technical Notes	Stainless steel Bow shackle conform to European Type
Material	Stainless steel 304 or 316 bow shackle
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	5mm, 6mm, 8mm, 10mm, 12mm, 14mm

Specifications of Hexagon Socket Pin Bow Shackle Stainless Steel

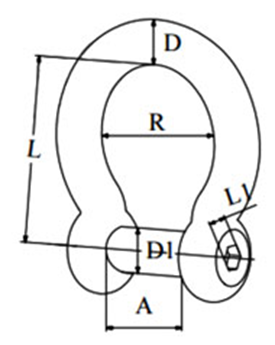

drawing-of-hexagon-socket-pin-bow-shackle-stainless-steel-china-supplier

Part No.	D	A	L	R	D1	L1	Min.BL
Part No.	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(KN)
CRSSBSHSP05	5	10	20	17	5	25	91
CRSSBSHSP06	6	12	24	21	6	30	132
CRSSBSHSP08	8	16	32	28	8	40	237
CRSSBSHSP10	10	20	40	35	10	50	373
CRSSBSHSP12	12	24	48	42	12	60	549
CRSSBSHSP14	14	28	56	49	14	60	748
