CLGR® Stainless Steel Jaw Swivel Snap Shackle

Name: CLGR® Stainless Steel Jaw Swivel Snap Shackle
Brand: CLGR®

CLGR® Stainless Steel Jaw Swivel Snap Shackle also known as Snap Shackles with Clevis Pin Swivel, Stainless steel snap shackle, Snap shackle with swivel jaw and Highly polished 316 stainless steel jaw swivel snap shackle with quick release pin for marine rigging.

Crafted from marine-grade AISI 304/316 stainless steel through precision casting, these jaw swivel snap-rated stainless steel shackles provide superior corrosion resistance and durability for demanding marine and industrial applications. Featuring a unique rotating jaw design with removable clevis pin and spring-loaded captive pin mechanism, these rated stainless steel shackles enable quick connections/disconnections and 360° swivel operation under load.

The highly polished finish provides enhanced protection against harsh environments while maintaining a professional appearance.

Ideal for sailboat rigging, offshore operations, and industrial equipment, the quick-release jaw design of these rated stainless steel shackles allows for effortless attachment to lines, cables, and structural points.

The combination of swivel functionality and secure captive pin ensures reliable performance while preventing accidental detachment during use.

Available in sizes 70mm, 87mm, and 128mm, these premium-rated stainless steel shackles offer excellent working loads and breaking strength for critical applications.

Custom specifications can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

Stainless Steel Jaw Swivel Snap Shackle China Manufacturer

Stainless Steel Jaw Swivel Snap Shackle China Wholesale

Stainless Steel Jaw Swivel Snap Shackle China Supplier

 

Overview of Stainless Steel Jaw Swivel Snap Shackle

Brand	CLGR®
Origin	China
Material	Stainless steel 304 or 316 jaw swivel snap shackle
Processing	Cast
Finish	Highly polishing
Size	70mm, 87mm, 128mm
Tips	Ideal for marine or industrial use.

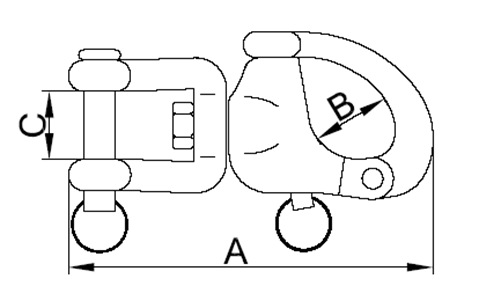

Specifications of Stainless Steel Jaw Swivel Snap Shackle

Part No.	A	B	C	WLL
Part No.	mm	mm	mm	kgs
CRSSQRSJ070	70	12	12	450
CRSSQRSJ087	87	16	16	650
CRSSQRSJ128	128	22	22	950

Please note we supply a huge variety of stainless steel parts.

And also available in carbon/alloy steel shackles.
