CLGR® Trawling Shackle V Type Blue Painted with Square Head Pin

Name: CLGR® Trawling Shackle V Type Blue Painted with Square Head Pin
Brand: CLGR®

CLGR® Trawling Shackle V Type Blue Painted with Square Head Pin is also called V shackle with Square Head Pin..

It is a connecting component usually used with a removable pin. Shackle V Type is made of super carbon steel. Their Surface Finished power coated, and through heat treatment, strong and durable. The working load limit shown on each shackle is 9 tones. V Shackle with Square Head Pin can provide a strong and secure connection point between chains, ropes, or slings. It is commonly used in construction and maritime.

CLGR® V Shackle with Square Head Pin is available in 32mm size, special specifications and marks can be made according to customers' requirements.

To Get A Quote >

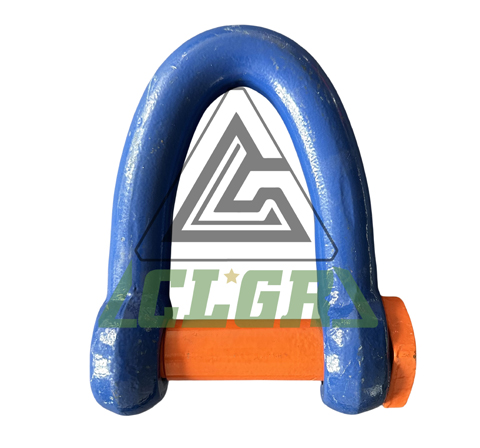

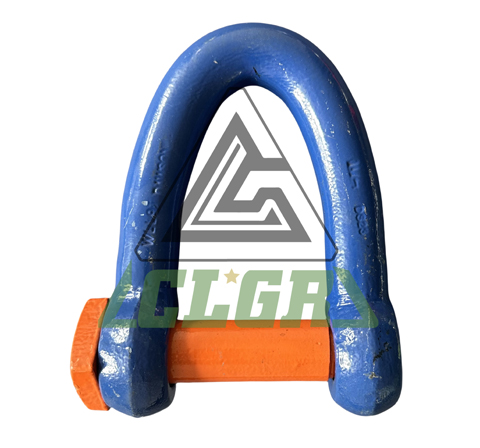

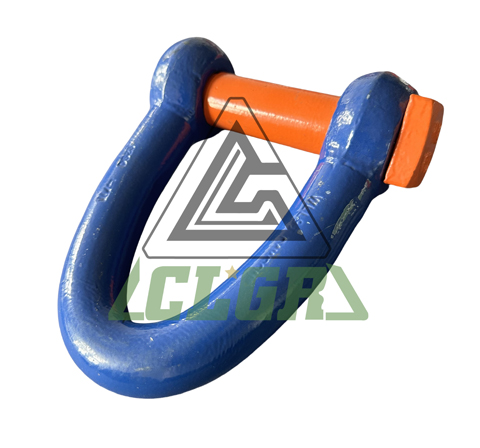

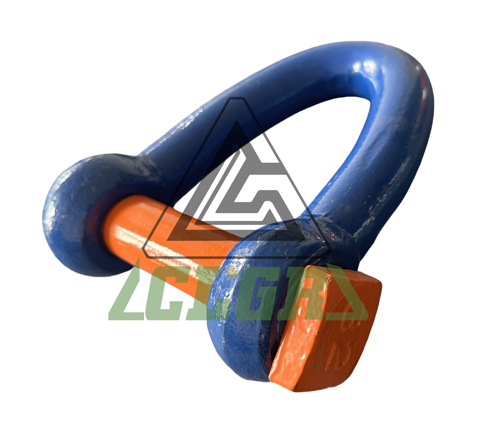

CLGR® Trawling Shackle V Type Blue Painted with Square Head Pin & China Supply

 

Overview of CLGR® Trawling Shackle V Type Blue Painted with Square Head Pin

Brand	CLGR®
Size	32mm
Standard	U.S. Federal Specification (ASME B30.26)
WLL	9 Ton
Material	Superior Carbon Steel
Surface Finish	Powder Coated
Processing	Forged
Important Note	Not suitable for lifting applications

Specification of CLGR® Trawling Shackle V Type Blue Painted with Square Head Pin

Part No.	WLL 5:1 ton	Body dia. × Pin dia.	Inner Length	Inner Width	Opening	Side Length of Square Head
CRTVSSHP32	9 Ton	32mm	122mm	77mm	80mm	43mm

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
