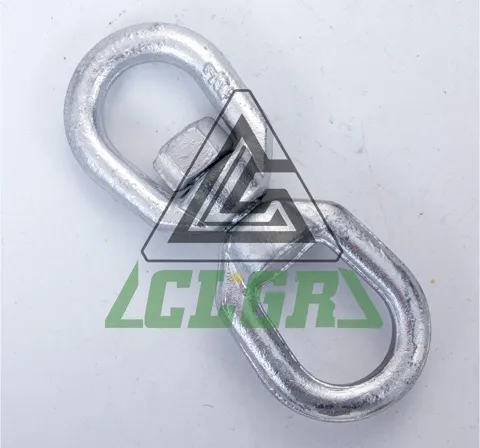

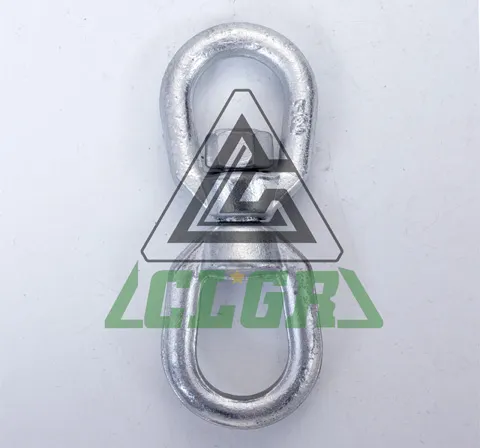

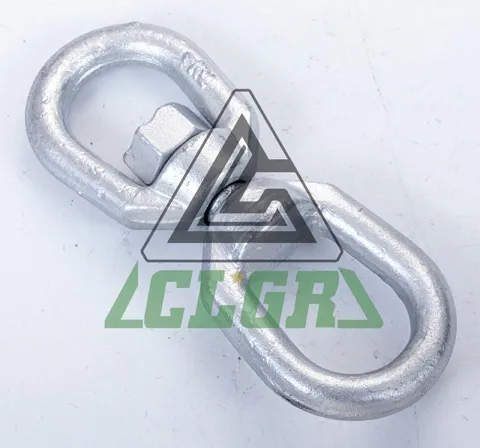

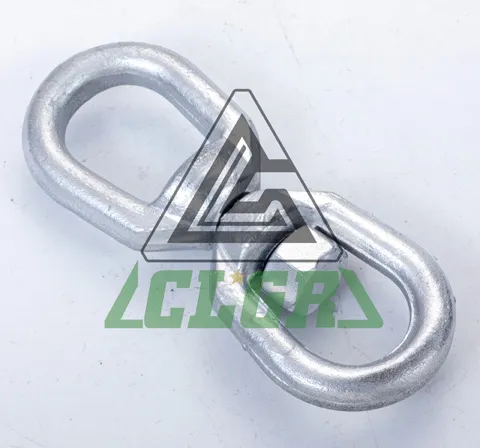

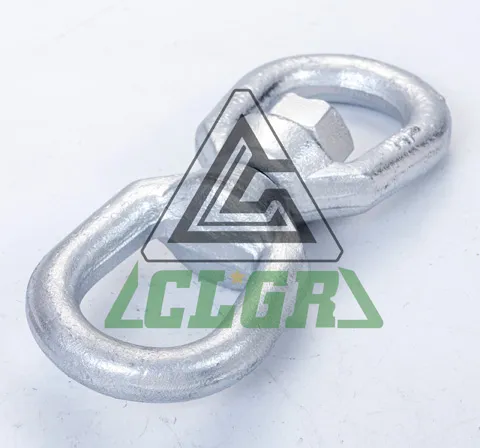

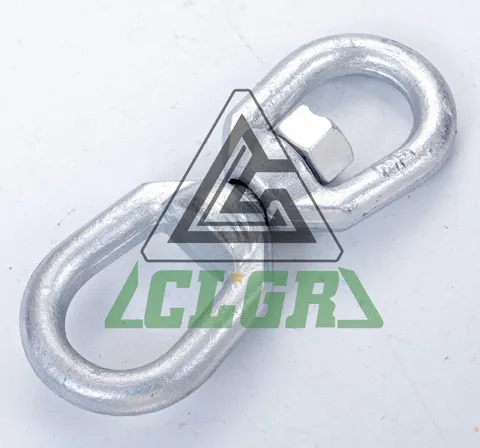

CLGR® Forged Regular Swivel G-402 Eye & Eye

Name: CLGR® Forged Regular Swivel G-402 Eye & Eye
Brand: CLGR®

CLGR® Forged Regular Swivel G-402 Eye & Eye, also known as Galvanized mooring chain swivel, G402 Forged Oval Eye Chain Swivel.

Regular Swivel G402 manufactured from super carbon steel been drop forged and welded, and also has been galvanized, making them ideal for various marine and industrial rigging applications. Regular Swivel helps prevent unnecessary twisting and binding of slings and attachments, which in turn helps you get the most out of your riggings. This product is a positioning device and is not intended to swivel or rotate under load.

G-402 Regular Swivels meet the performance requirements of Federal Specification RR-C-271F, Type VII, Class 2.

All the swivels are tested and come with test certificates.

Also, we have G-401 Chain Swivels, G-403 Jaw End Swivels.

To Get A Quote >

10 CLGR® Forged Regular Swivel G 402 Eye & Eye

CLGR® Forged Regular Swivel G-402 Eye & Eye Function

CLGR® Forged Regular Swivel G-402 Eye & Eye Factories

CLGR® Forged Regular Swivel G-402 Eye & Eye Cost

CLGR® Forged Regular Swivel G-402 Eye & Eye Companies

CLGR® Forged Regular Swivel G-402 Eye & Eye Uses

CLGR® Forged Regular Swivel G-402 Eye & Eye Application

CLGR® Forged Regular Swivel G-402 Eye & Eye Working

CLGR® Forged Regular Swivel G-402 Eye & Eye Company

CLGR® Forged Regular Swivel G-402 Eye & Eye Wholesale Manufacturer

CLGR® Forged Regular Swivel G-402 Eye & Eye Wholesale Supplier

CLGR® Forged Regular Swivel G-402 Eye & Eye Manufacturers

 

Overview of CLGR® Forged Regular Swivel G-402 Eye & Eye

Brand	CLGR®
Size	1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-1/2"
WLL	5:1
Material	Super Carbon Steel
Finish	Hot Dipped Galvanized, Electro Galvanized.
Processing	Drop Forged, Welding, Heat treatment
Type	G402
Important Note	Special specifications and marks can be made

Specifications of CLGR® Forged Regular Swivel G-402 Eye & Eye

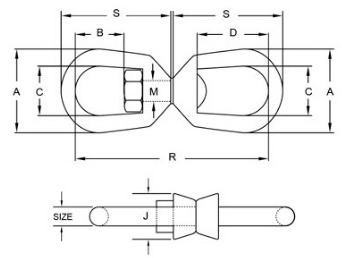

Part No.	Size	W.L.L.	Weight each	Dimensions(in)
	Size	W.L.L.	Weight each	Dimensions(in)
	(in.)	(lbs.)	(lbs.)	A	B	C	D	J	M	R	S
CR402C1/4	1/4	850	0.21	1.25	0.69	0.75	1.06	0.69	0.31	2.94	1.69
CR402C5/16	5/16	1250	0.39	1.63	0.81	1	1.25	0.81	0.38	3.56	2.06
CR402C3/8	3/8	2250	0.71	2	0.94	1.25	1.5	1	0.5	4.31	2.5
CR402C1/2	1/2	3600	1.32	2.5	1.31	1.5	2	1.31	0.63	5.44	3.19
CR402C5/8	5/8	5200	2.49	3	1.56	1.75	2.38	1.5	0.75	6.56	3.88
CR402C3/4	3/4	7200	4.02	3.5	1.75	2	2.63	1.88	0.88	7.19	4.31
CR402C7/8	7/8	10000	6.25	4	2.06	2.25	3.06	2.13	1	8.38	5
CR402C1	1	12500	8.95	4.5	2.31	2.5	3.5	2.38	1.13	9.63	5.75
CR402C1-1/4	1-1/4	18000	16.37	5.63	2.69	3.13	3.69	3	1.5	11.44	6.75
CR402C1-1/2	1-1/2	45200	45.79	7.09	3.88	4.09	3.88	3.75	2.25	16.69	9.91
