CLGR® Stainless Steel Swivel D SD Type -Fishing & Trawling Gear, also known as stainless swivel or trawl swivel.
Stainless Steel Swivel D SD Type manufactured from grade 304 or 316 stainless steel ideal for highly corrosive marine environments.
Stainless Steel Swivels are rated 4:1 which means that it has the ability to hold 4 times the amount of their safe work load. They are usable for maritime, offshore and commercial fishing.
All the swivels are tested and come with test certificates.
Avaliable size in 10mm , 12mm , 16mm , 19mm. Special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
Size | 10mm, 12mm, 16mm, 19mm |
WLL | 4:1 |
Material | Stainless Steel grade 304 /316 |
Finish | Highly Polished, Blue Coating |
Processing | Welding |
Type | D Type |
Important Note | NOT TO BE USED FOR LIFTING |

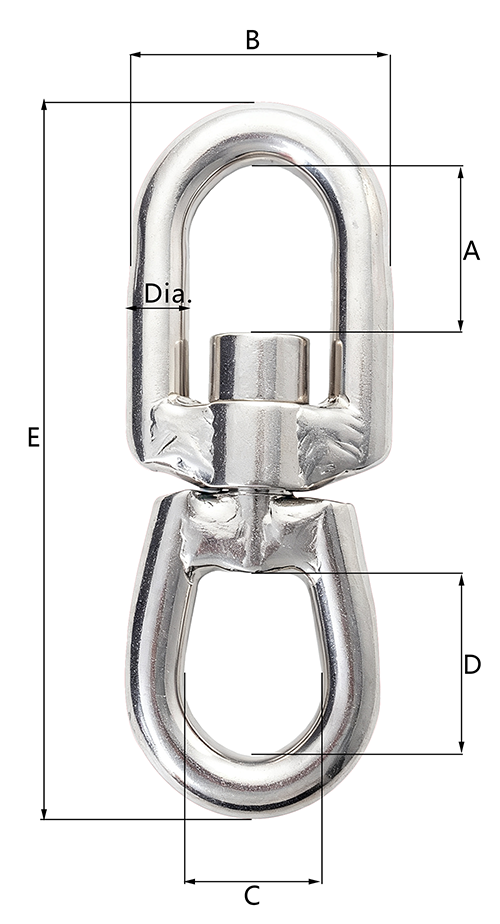

.png "drawing-clgr-of-stainless-steel-swivel-d-sd-type-fishing-trawling-gear")
| Part No. | Dia. Φ | WLL 4:1 | A | B | C | D | E | Weight |
| mm | ton | mm | kg | |||||
| CRSSD10 | 10 | 1 | 29 | 29 | 25 | 31 | 135 | 0.29 |
| CRSSD12 | 12 | 1.6 | 33 | 30 | 28 | 36 | 143 | 0.38 |
| CRSSD16 | 16 | 2.6 | 40 | 38 | 35 | 41 | 178 | 0.83 |
| CRSSD19 | 19 | 4 | 46 | 38 | 35 | 51 | 205 | 1.4 |
