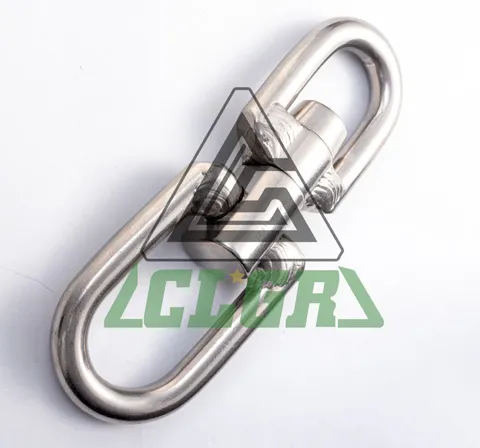

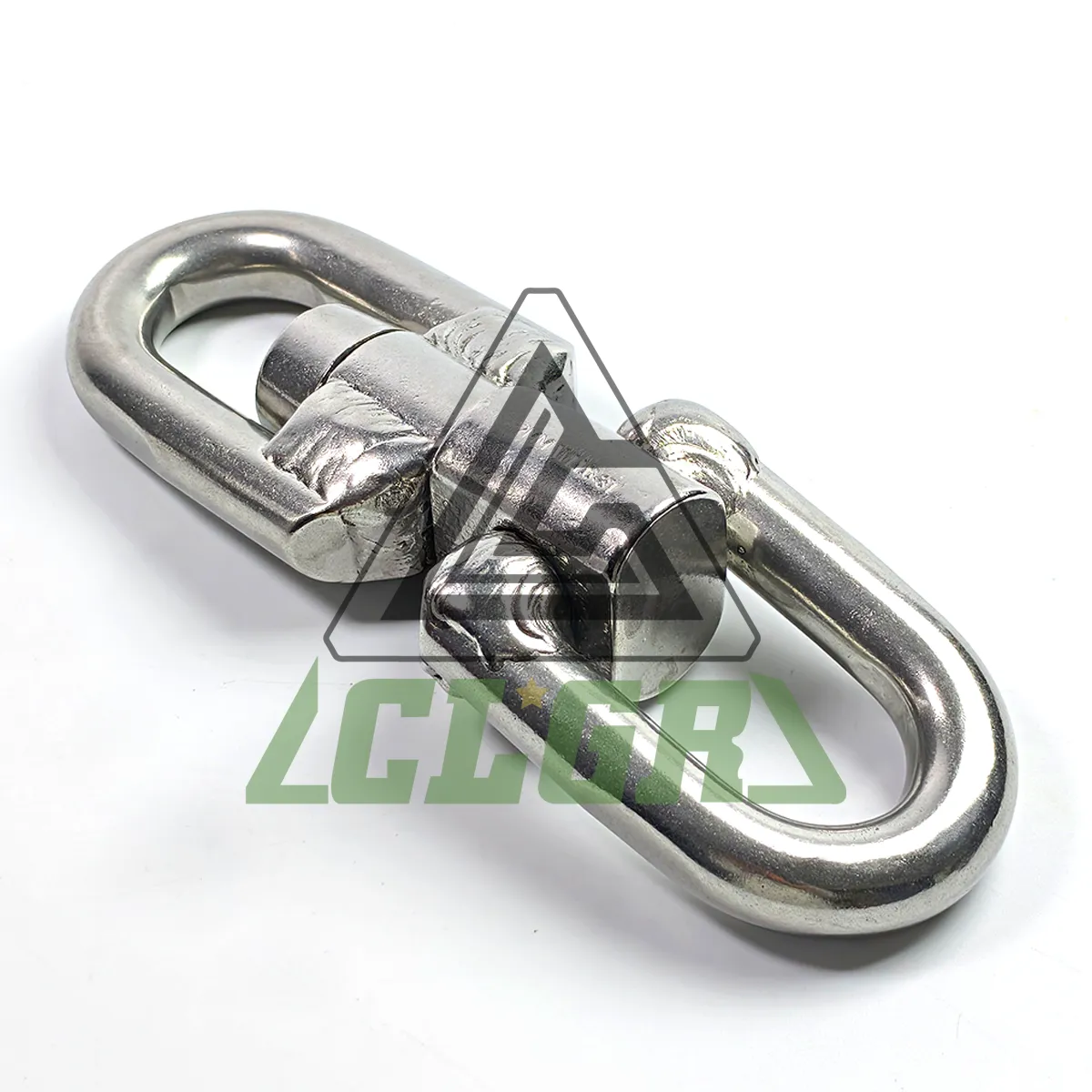

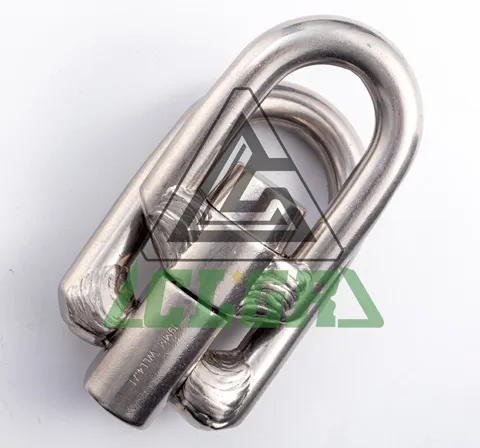

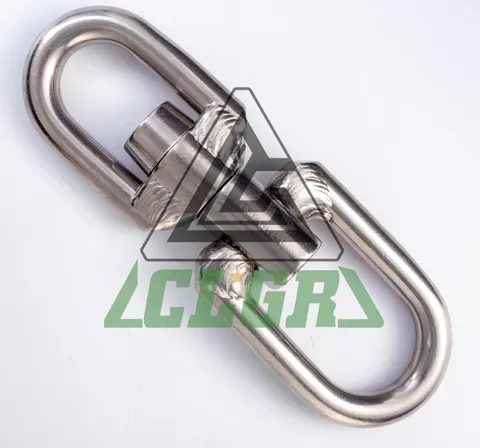

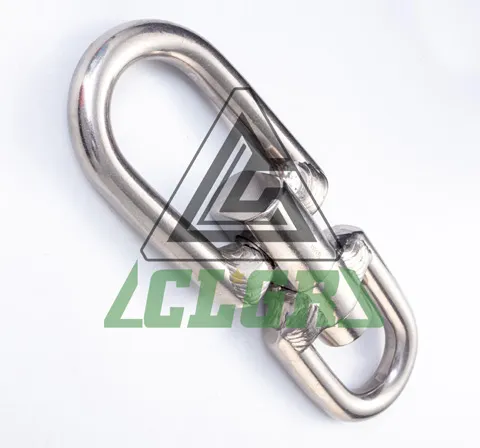

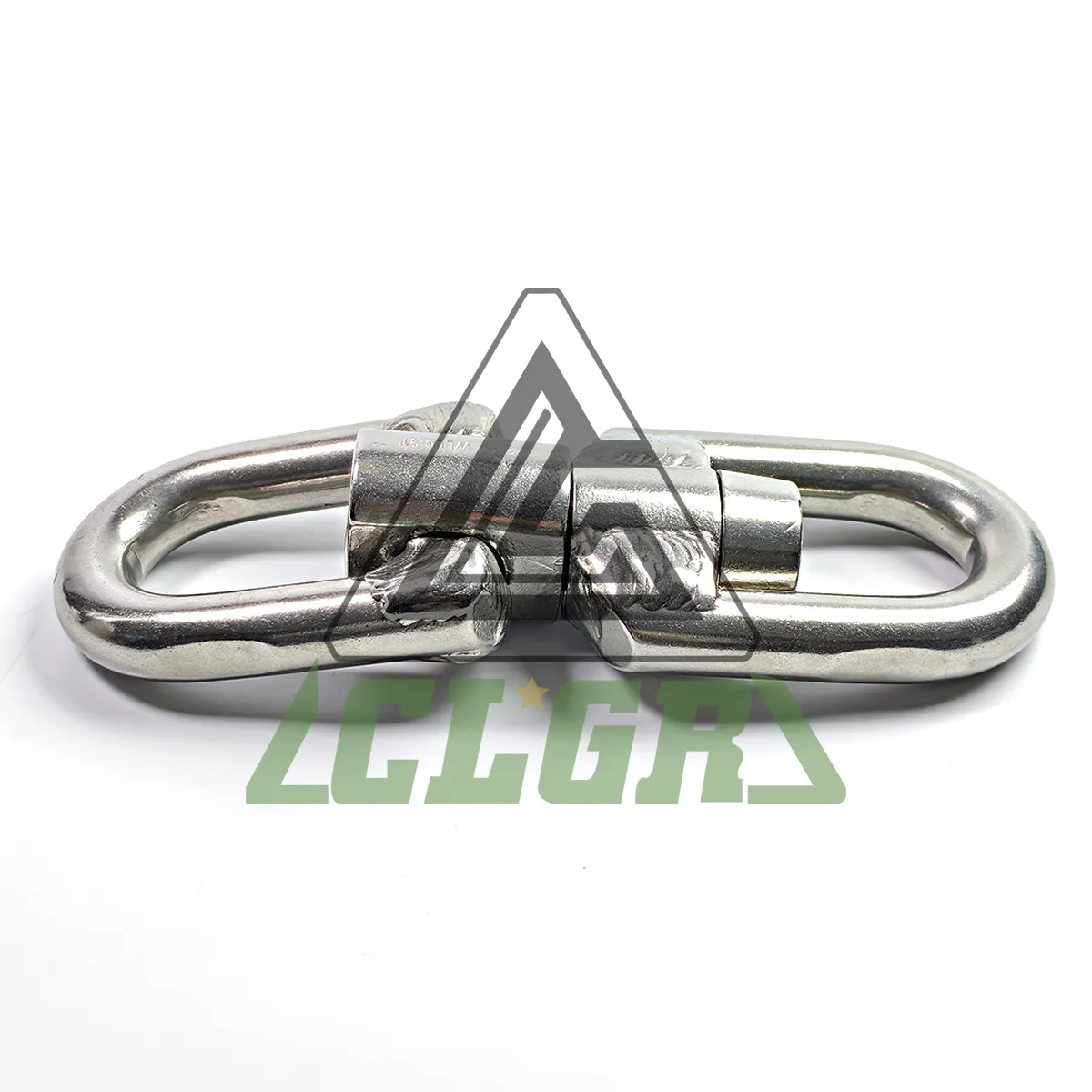

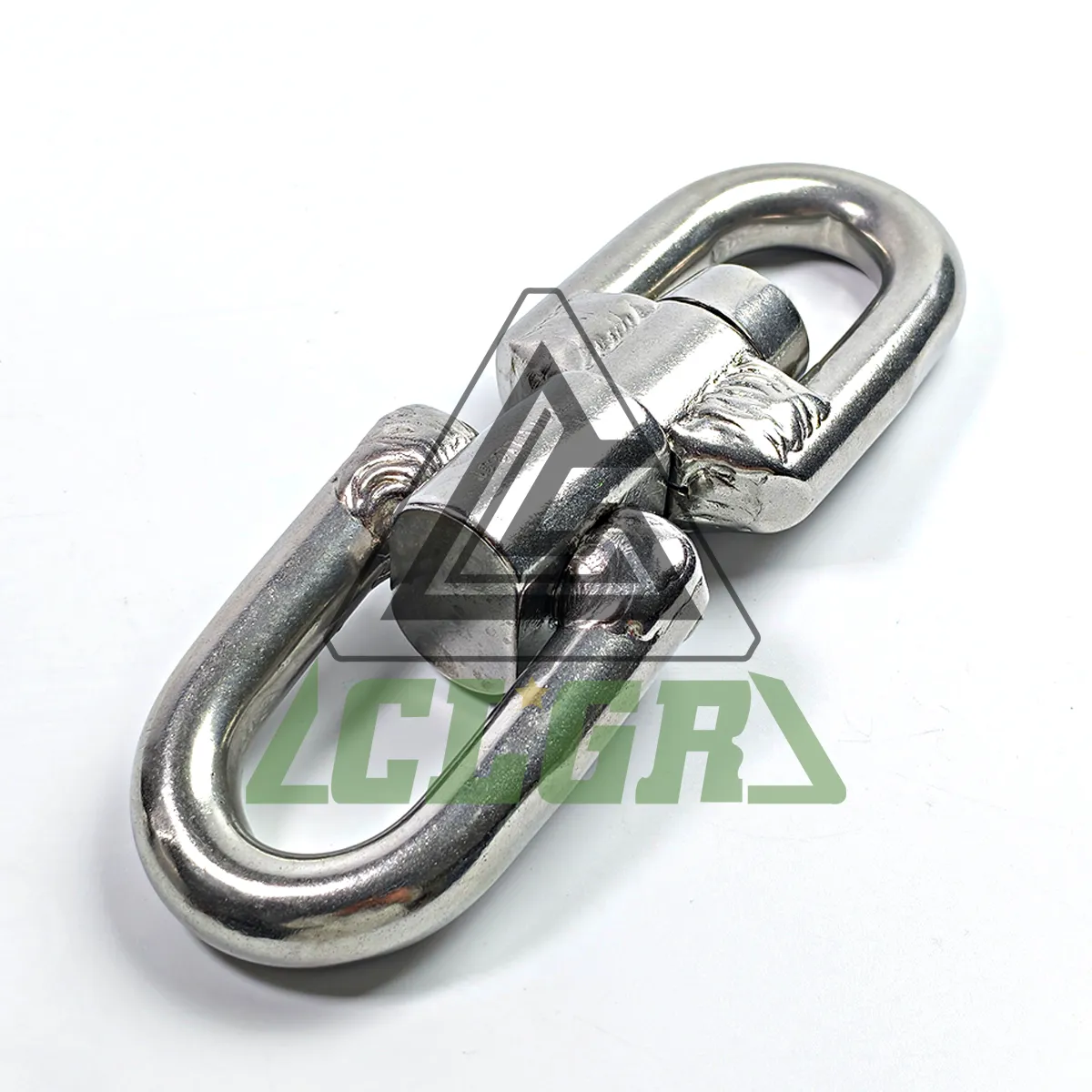

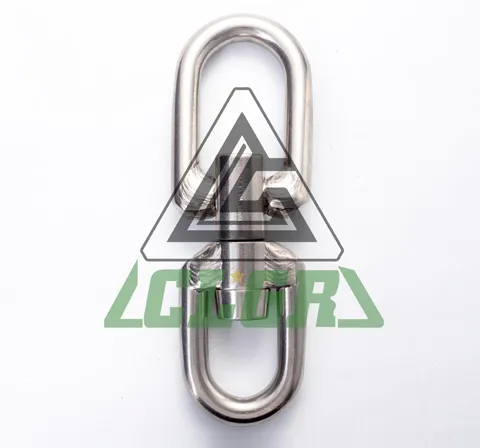

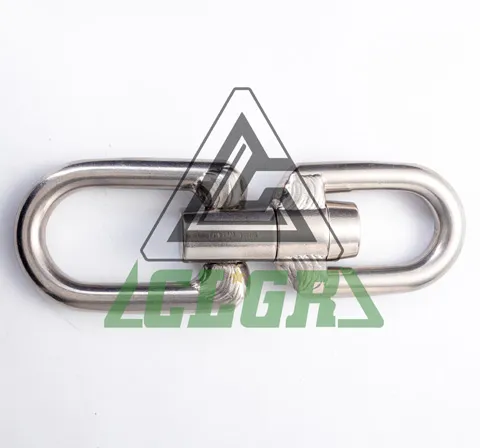

Stainless Steel Flexible Swivel WDF Type Trawling Gear is also called Stainless Steel Fishing Swivel Flex.
Our Stainless Steel Flexible Swivel is manufactured from marine-grade AISI 304/316 stainless steel with high-polish, featuring a 5:1 safety factor for reliable performance in corrosive environments.
This welded swivel is specifically designed for demanding marine applications including commercial fishing trawl nets, offshore mooring systems, aquaculture cage rigging, and sailboat hardware installations where corrosion resistance is critical.
The Stainless Steel Flexible Swivel design allows smooth rotation under load in applications such as connecting longline fishing gear and preventing line twisting in buoy arrays.
Available in sizes: 13mm,16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm, 45mm with customizable color coding for easy identification.
Important: This swivel is designed for marine connecting applications - always stay within working load limits.
| Brand | CLGR® |
Size | 13mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm, 45mm |
WLL | 5:1 |
Material | Stainless Steel grade 304 or 316 |
Finish | Highly Polished |
Processing | Welding |
Type | WDF Type |
Important Note | *NOT TO BE USED FOR LIFTING* |

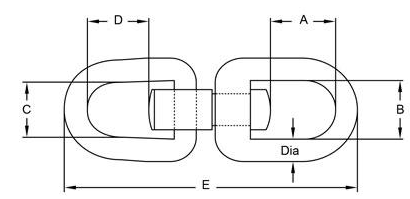

Part NO. | Size | WLL 5:1 | A | B | C | D | E | Weight |
mm | ton | mm | mm | mm | mm | mm | kg | |
CRSSWDF13 | 13mm | 1.6 | 30 | 28 | 28 | 34 | 160 | 0.71 |
CRSSWDF16 | 16mm | 3.2 | 41 | 38 | 37 | 48 | 200 | 1.3 |
CRSSWDF19 | 19mm | 4.7 | 44 | 40 | 40 | 54 | 235 | 2 |
CRSSWDF22 | 22mm | 6.3 | 44 | 40 | 40 | 55 | 255 | 2.7 |
CRSSWDF25 | 25mm | 8.3 | 55 | 50 | 45 | 70 | 320 | 4.4 |
CRSSWDF28 | 28mm | 10.4 | 55 | 50 | 50 | 80 | 330 | 5.6 |
CRSSWDF32 | 32mm | 12 | 55 | 55 | 54 | 93 | 360 | 8.6 |
| CRSSWDF38 | 38mm | 18 | 62 | 58 | 60 | 110 | 410 | 13.5 |
| CRSSWDF45 | 45mm | 28 | 75 | 70 | 70 | 115 | 515 | 22.5 |
