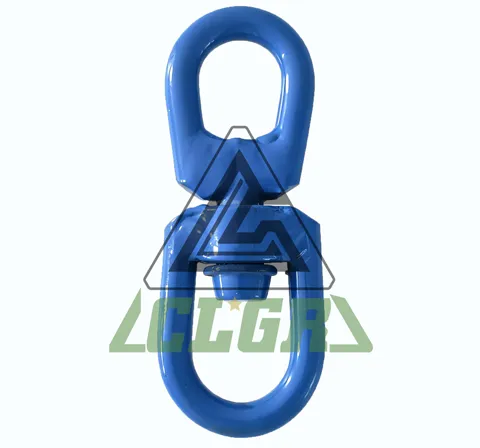

CLGR® Welded Steel Chain Swivel WBS Type for Trawling Gear

Name: CLGR® Welded Steel Chain Swivel WBS Type for Trawling Gear
Brand: CLGR®

CLGR® Welded Steel Chain Swivel WBS Type, also called mooring swivel and trawling swivel.

This Chain Swivel is made of super carbon steel, been welded and powder coated. It ideal for highly corrosive marine environments, so it usable for fishing or rigging applications.

This product is a positioning device and is not intended to swivel or rotate under load. Ultimate load is 5 times the Working Load Limit.

We offer 8mm, 10mm, 12mm, 14mm, 16mm, 19mm sizes, also customize the size according to customer requirements.

To Get A Quote >

20 CLGR® Welded Steel Chain Swivel WBS Type for Trawling Gear

Overview of CLGR® Welded Steel Chain Swivel WBS Type for Trawling Gear

Brand	CLGR®
Size	8mm, 10mm, 12mm, 14mm, 16mm, 19mm
Type	WBS Type
WLL	5:1
Material	Super Carbon Steel
Finish	Powder Coated
Processing	Welded

Specifications of CLGR® Welded Steel Chain Swivel WBS Type for Trawling Gear

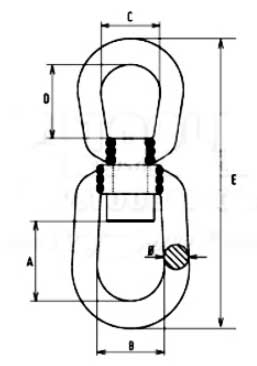

clgr-welded-steel-chain-swivel-wbs-type

Part No.	Weight (kg)	WLL/t	BL/t	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Φ (mm)
CR-WBS-08	0.08	0.5	2.5	20	13	12	12	80	8
CR-WBS-10	0.23	0.6	3.0	32	25	25	31	123	10
CR-WBS-12	0.40	1.1	5.5	35	30	28	33	140	12
CR-WBS-14	0.65	1.3	6.5	40	38	33	37	168	14
CR-WBS-16	0.76	1.5	7.5	40	38	33	41	180	16
CR-WBS-19	1.30	2.4	12	50	38	35	47	200	19

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
