CLGR® Grade 80 Forged Alloy Eye Swivel

Name: CLGR® Grade 80 Forged Alloy Eye Swivel
Brand: CLGR®

CLGR® Grade 80 Forged Alloy Eye Swivel, also called Grade 80 Chain Swivel, Double Eye Swivel.

This G80 chain swivel is forged from superior alloy steel and designed for use in the marine and building industries. It must be matched with slings and G80 chains that conform to the EN818-2 standard.

Connecting links available for 7/8mm,10mm,13mm and 19mm dia lifting chains.

To Get A Quote >

13 CLGR® Grade 80 Forged Alloy Eye Swivel

clgr grade 80 forged alloy eye swivel manufacturers

clgr grade 80 forged alloy eye swivel suppliers

clgr grade 80 forged alloy eye swivel factory

clgr grade 80 forged alloy eye swivel exporter

clgr grade 80 forged alloy eye swivel china

 

Product Introduction of CLGR® Grade 80 Forged Alloy Eye Swivel

Brand	CLGR®
Size	7/8mm,10mm, 13mm,19mm
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Heat Treatment
Surface Finish	Powder Coated
Note	Special Specifications and Marks Can be Customized

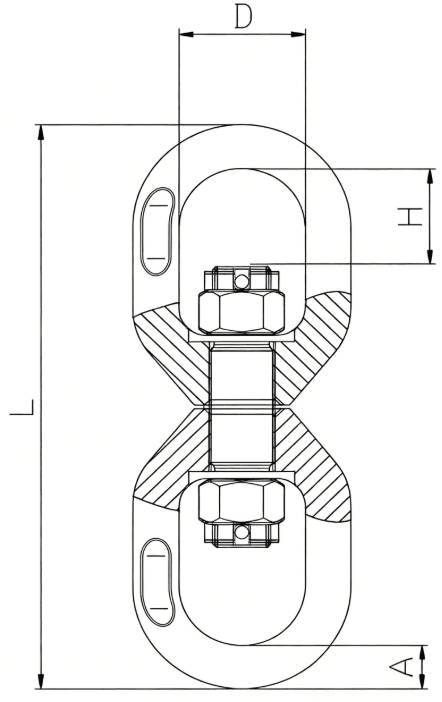

Specifications of CLGR® Grade 80 Forged Alloy Eye Swivel

specifications-of-clgr-grade-80-forged-alloy-eye-swivel

Part No.	WEIGHT/kg	Working Load Limit (T)	Breaking Load (T)	A±l	D ±1	H±1.5	L±2
8-CR-ES-7/8	0.67	2	8	13	35	29.5	169
8-CR-ES-10	1.6	3.15	12.6	15.5	42	3.5	200
8-CR-ES-13	1.75	5.3	21.2	17	5o	41.5	226
8-CR-ES-19	4.25	125	50	26	72	63	292
