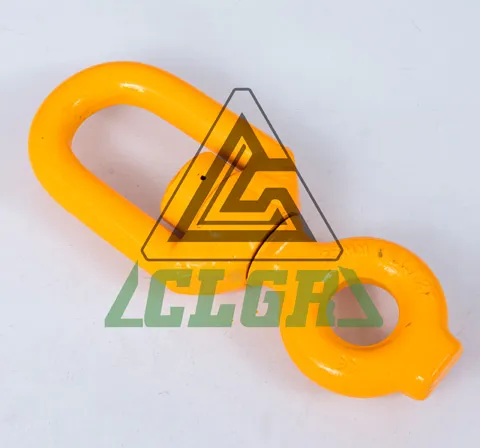

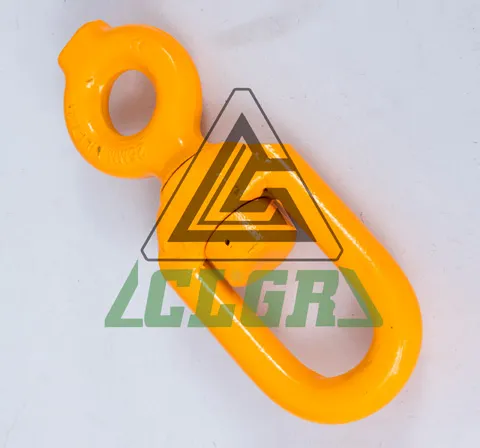

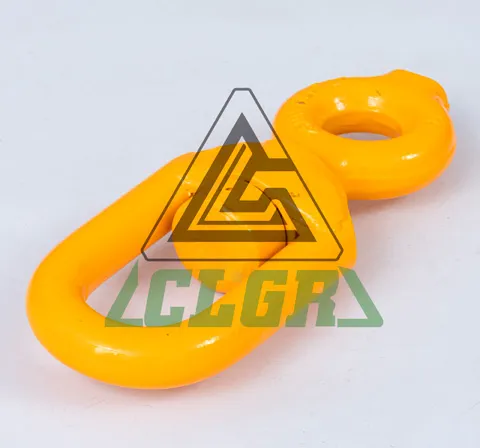

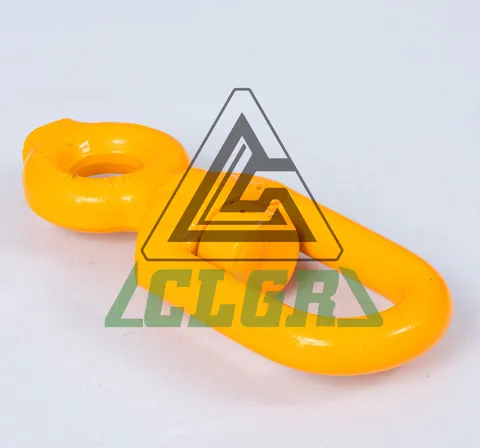

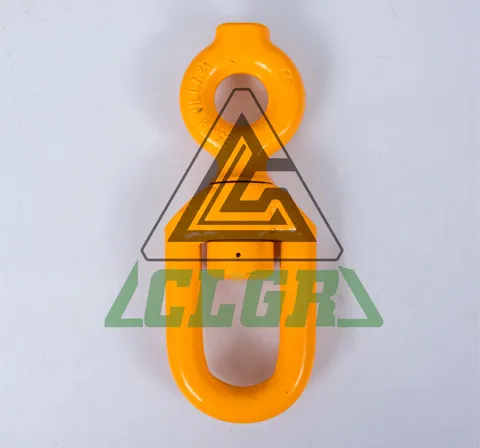

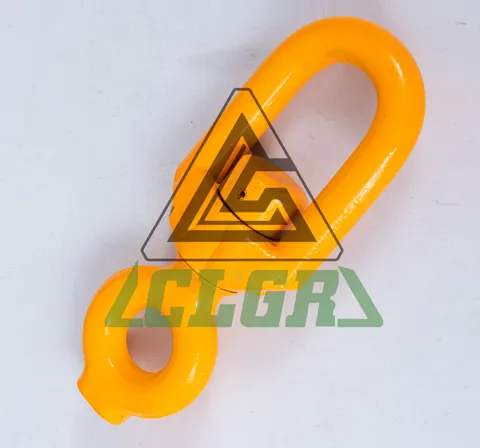

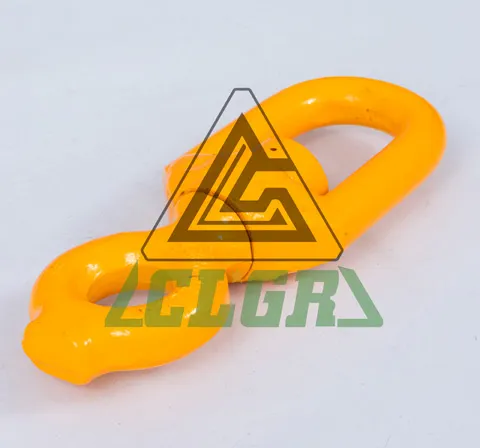

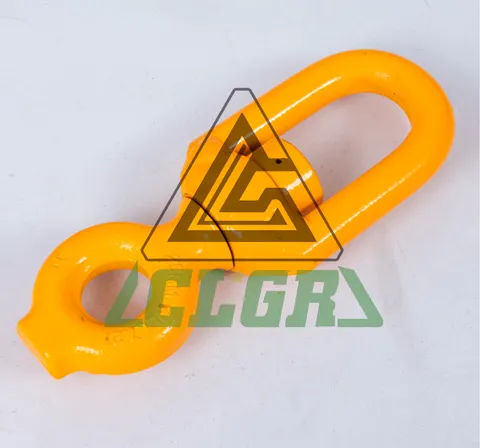

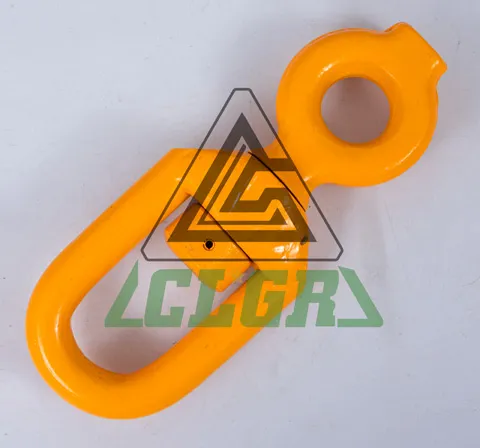

CLGR® Forged Alloy Swivel FO Type for Fishing Trawling, also referred to as Mooring Swivel or Trawling Swivel.
It is forged by super alloy steel with high intensity and high toughness, and it been powder coated. Ultimate load is 5 times the Working Load Limit.
It ideal for highly corrosive marine environments, so usable for trawling or rigging applications. Forged Alloy Steel Swivel can be matched with sling and G80 chains. We offer 16mm, 19mm, 22mm, 25mm, 28mm sizes, also customize the size according to customer requirements.
All the swivels passed the test and come with test certificates.
| Brand | CLGR® |
Size | 16mm, 19mm, 22mm, 25mm, 28mm |
WLL | 5:1 |
Material | Super Alloy Steel |
Finish | Powder Coated |
Processing | Drop Forged, Welded |
Tips | Color Code can be Customized |

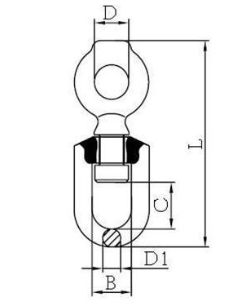

Part No. | Weight (kg) | WLL/t | B.L./t | D±1 (mm) | B±1.5 (mm) | C±2 (mm) | D1±1 (mm) | L±2.5 (mm) |
CR-FS-FO16 | 0.85 | 2.4 | 12 | 22 | 32 | 32 | 16 | 150 |
CR-FS-FO19 | 1.33 | 3.8 | 19 | 28 | 40 | 42.5 | 19 | 188 |
CR-FS-FO22 | 2.56 | 5.3 | 26.5 | 47 | 48 | 57 | 22 | 250 |
CR-FS-FO25 | 4.0 | 7.2 | 36 | 37 | 53 | 63 | 25 | 265 |
CR-FS-FO28 | 4.9 | 9.0 | 45 | 37 | 52 | 65 | 28 | 280 |
