CLGR® Forged Eye Swivel BS Type for Fishing and Trawling, also known as Mooring Swivel or Trawling Swivel, Forged Eye-Eye Swivels.
Forged Eye Swivel is made of super carbon steel which allows connected objects, such as chain or wire ropes to rotate horizontally or vertically.
Their surfaces are treated with hot-dip galvanized and electric galvanized so it can be use in highly corrosive marine environments. Such as offshore, maritime, and commercial fishing. Eye swivel BS Type also prevents chains, ropes, and wires twisted or tangled. It is ideal for those looking for reliability and durability, making it perfect for various applications.
We offer 9/16″, 5/8″, 3/4″ sizes, also customize the size according to customer requirements. Shop now to experience premium quality and excellent value.
| Brand | CLGR® |
Size | 9/16″, 5/8″, 3/4″ |
Type | BS Type |
Material | Super Carbon Steel |
Finish | Hot-dip galvanized, Electro-galvanized |
Processing | Drop Forged |

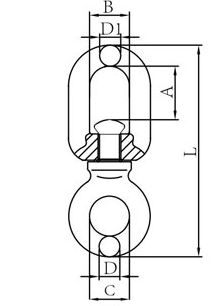

Part No. | Weight (KG) | A±1 | B±0.5 | C±1 | D±0.5 | D1±0.5 | L±2 |
CR-FS-BS-9/16 | 0.58 | 41 | 29.5 | 30.5 | 15 | 14 | 158 |
CR-FS-BS-5/8 | 0.85 | 45 | 34 | 34.5 | 16 | 16 | 176.5 |
CR-FS-BS-3/4 | 1.39 | 51 | 38 | 38 | 20 | 19 | 201.5 |
