CLGR® Stainless Steel Swivel for Connector, also called Stainless Steel Fishing Swivel.
Our stainless steel swivels are manufactured for grade 304 or 306 stainless steel. They have very highly corrosive resistance, usable for maritime, offshore and commercial fishing.
Stainless Steel Swivel for Connector smooth rotation action reduces the risk of chain or rope knotting. This stainless steel swivel has a safety factor ratio of 4:1, which means that it have the ability to hold four times the amount of their safe work load.
All the swivels are tested and come with test certificates. Special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
Size | 13mm 16mm 19mm 22mm 25mm 32mm 38mm |
WLL | 5:1 |
Material | Stainless Steel grade 304 or 306 |
Finish | Highly Polished |
Processing | Welding, Machining |

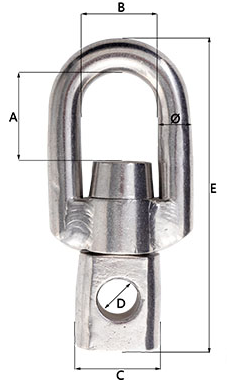

Part No. | Size (mm) | WLL 5:1 (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) |
CRSSTSS13 | 13mm | 1.6 | 30 | 28 | 21 | 16 | 114 | 0.38 |
CRSSTSS16 | 16mm | 3.2 | 43 | 38 | 26 | 20 | 140 | 0.76 |
CRSSTSS19 | 19mm | 4.7 | 45 | 40 | 30 | 23 | 162 | 1.35 |
CRSSTSS22 | 22mm | 6.3 | 45 | 40 | 35 | 26 | 180 | 1.90 |
CRSSTSS25 | 25mm | 8.3 | 52 | 45 | 39 | 30 | 220 | 3.18 |
CRSSTSS32 | 32mm | 12 | 58 | 50 | 48 | 37 | 260 | 6.40 |
CRSSTSS38 | 38mm | 18 | 55 | 50 | 58 | 41 | 290 | 10.0 |
