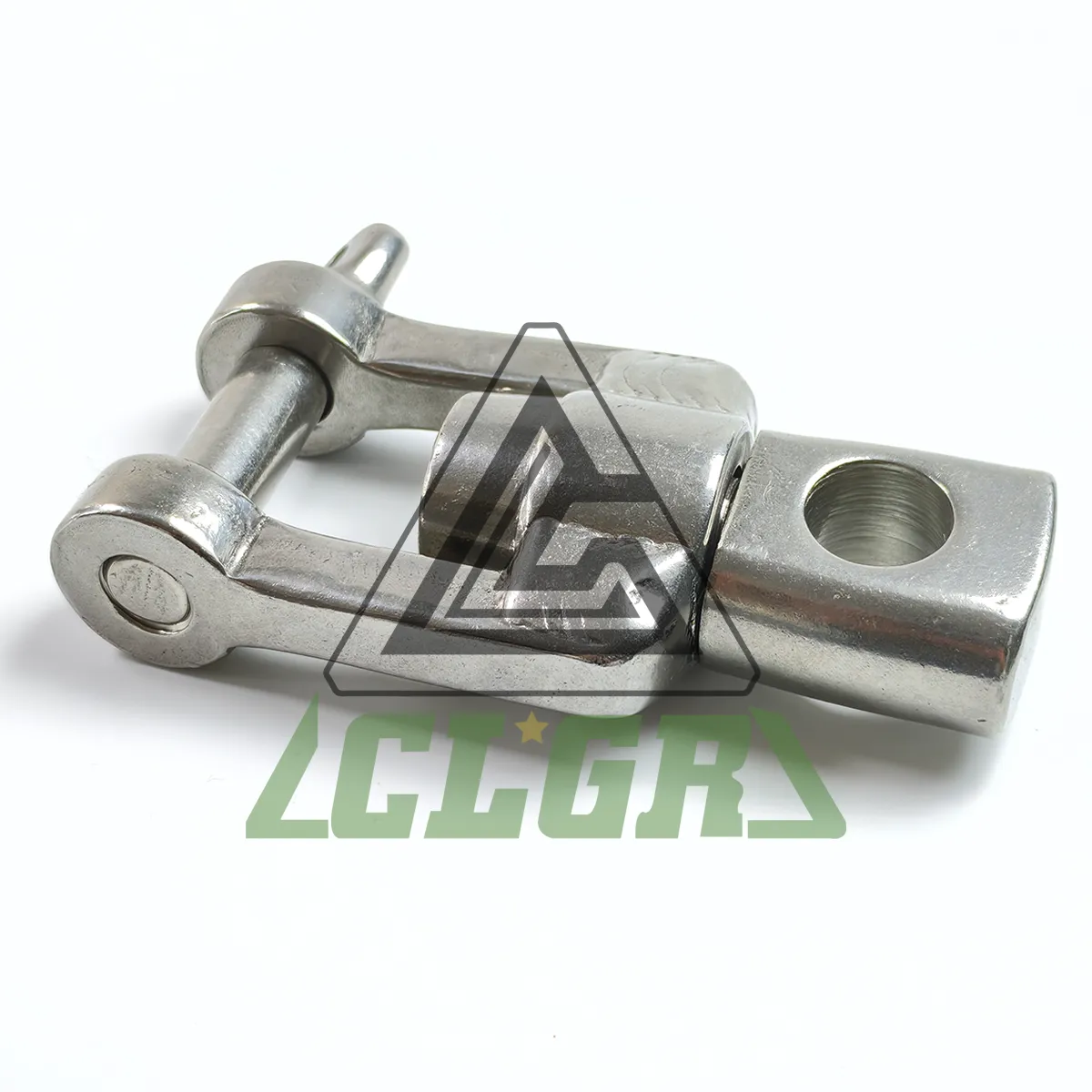

CLGR® Stainless Steel Swivel Jaw for Shackle or Connector for Trawling Gear, also known as Stainless steel Swivel For shackle with fork and eyepin, and Chain Swivel Shackle Eye/Fork.
Stainless steel Swivel For shackle with fork and eyepin is manufactured from grade 304 or 316 stainless steel ideal for highly corrosive marine environments.
It prevents the chain and anchor from twisting. And the rounded eye on one side makes it easy to splice on a rope.
Stainless Steel Swivel for Shackle or Connector are rated 5:1 and usable for maritime, offshore and commercial fishing.
All the swivels are tested and come with test certificates.
Avalible size in 13mm, 16mm,19mm. Special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
Size | 13mm, 16mm, 19mm |
WLL | 5:1 |
Material | Stainless Steel grade 304 /316 |
Finish | Highly Polished |
Processing | Welding |
Important Note | NOT TO BE USED FOR LIFTING |

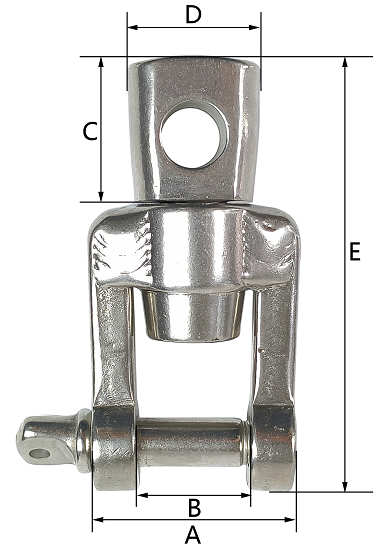

Part No. | SIZE | A | B | C | D | E | F | G | J | P | WEIGHT |
mm | Kgs | ||||||||||
CRSSJS013 | 13 | 34 | 64 | 40 | 46 | 34 | 39 | 15.8 | 14.8 | 17 | 0.71 |
CRSSJS016 | 16 | 37 | 74 | 41 | 50 | 41 | 45 | 18.8 | 19 | 19.5 | 1.32 |
CRSSJS019 | 19 | 39.5 | 80 | 45 | 56 | 47 | 52 | 21.8 | 20 | 24.5 | 1.93 |
