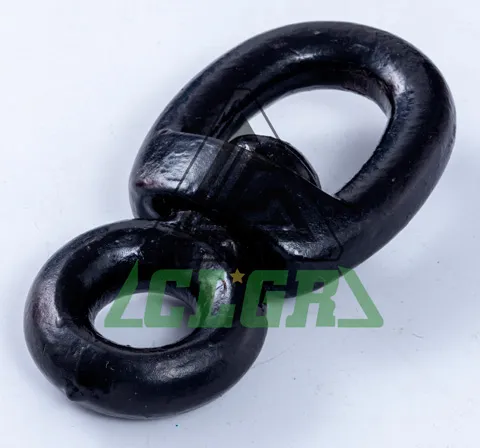

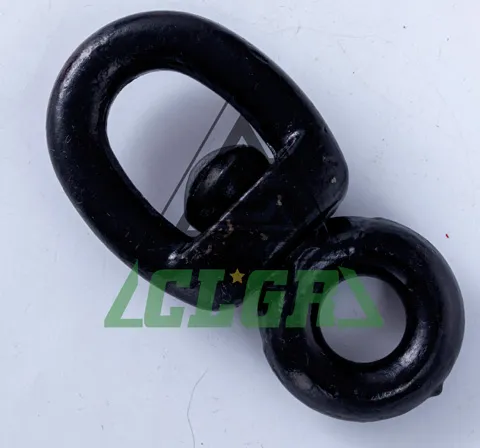

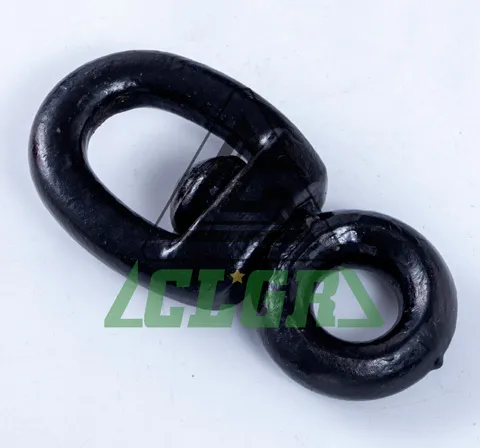

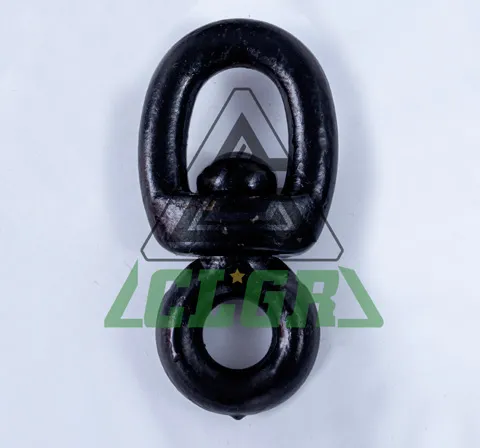

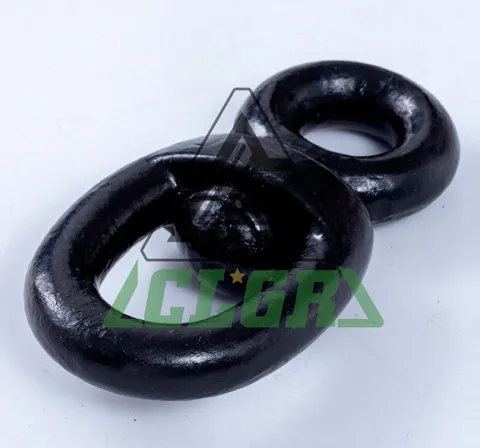

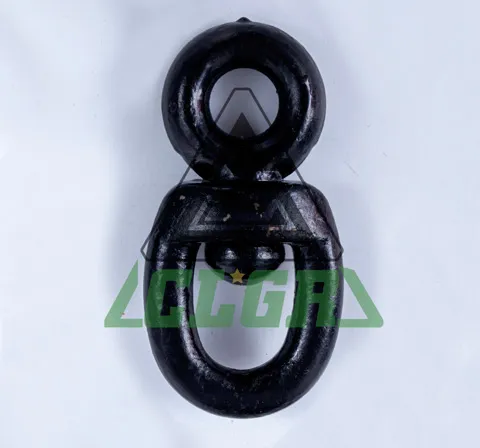

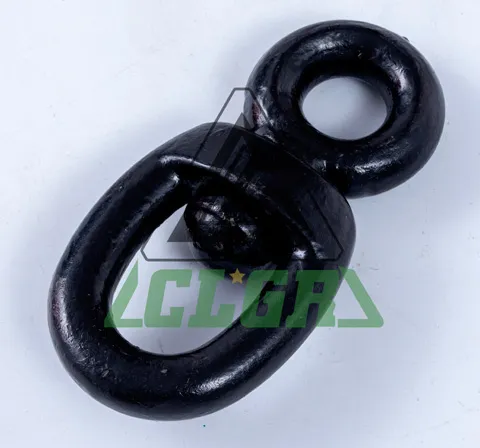

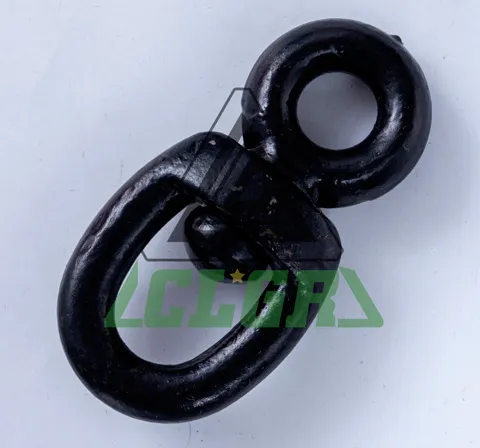

Chain Swivel BDF Type manufactured from superior mild steel ideal for highly corrosive marine environments, so it usable for fishing or rigging applications.
Their surface is treated with dipping paint and electric galvanized. Its smooth rotation action reduces the risk of chain or rope knotting. Mild Steel Chain Swivel is a positioning device and is not intended to swivel or rotate under load.
We offer 22mm, 25mm, 28mm, 32mm sizes, also customize the size according to customer requirements.
| Brand | CLGR® |
Size | 22mm, 25mm, 28mm, 32mm |
Type | BDF Type |
Material | Superior Mild Steel |
Finish | Dipping Paint, Electric Galvanized |
Processing | Drop Forged |

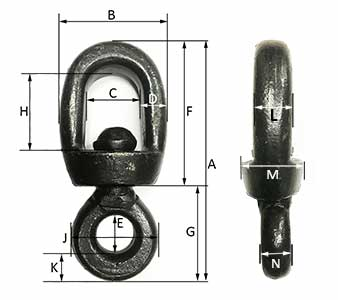

Part No. | Size | A | B | C | D | E | F | G | H | J | K | L | M | N | Weight | WLL 4:1 |
mm | ||||||||||||||||
CR-CS-BDF-20 | 20mm | 165 | 85 | 45 | 20 | 28 | 100 | 65 | 54 | 54 | 15 | 18.5 | 43 | 21 | 1.21 | 3 |
CR-CS-BDF-22 | 22mm | 195 | 95 | 48 | 22.5 | 32 | 114 | 80 | 67 | 72 | 22 | 22 | 50 | 23.5 | 1.91 | 4 |
CR-CS-BDF-25 | 25mm | 214 | 102 | 48 | 26 | 32 | 127 | 92 | 76 | 80 | 26 | 25 | 56 | 26 | 2.55 | 5 |
CR-CS-BDF-28 | 28mm | 220 | 108 | 58 | 24 | 34 | 132 | 90 | 78 | 81 | 26.5 | 26.5 | 59 | 27 | 2.96 | 6 |
CR-CS-BDF-32 | 32mm | 238 | 120 | 68 | 27 | 36 | 141 | 108 | 82 | 96 | 30.5 | 29 | 60 | 30 | 3.72 | 8 |
| CR-CS-BDF-36 | 36mm | 262 | 132 | 63 | 34 | 40 | 162 | 122 | 90 | 111 | 36 | 36 | 73 | 38 | 5.86 | 10 |
