CLGR® Forged Single Eye Swivel JIS Type for Fishing Trawling, also known as JIS Type Single Eye Swivel, and Chain Mooring Swivel.
JIS Type Single Eye Swivel is forged from super carbon steel, the small single eye makes it more solid than other swivels. If a swivel is used in the place with more fixed structure, to be on the safe side, JIS Type Single Eye Swivel should be a good choice.
Their surfaces are treated with hot-dip galvanized or electric galvanized. Eye Swivel JIS type is often used for connecting construction and fishing industries. This JIS type Single Eye Swivel prevents chains, ropes, and wires twisted or tangled.
All the swivels passed the test and come with test certificates.
| Brand | CLGR® |
Size | 13mm, 16mm, 19mm, 22mm |
Type | Eye swivel conform to JIS Type |
Material | Super Carbon Steel |
Finish | Hot-dip galvanized, Electro-galvanized |
Processing | Drop Forged |

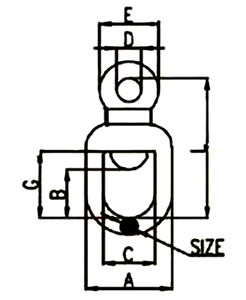

Part No. | Size | Weight | WLL | Dimention | ||||||
mm | kg | ton | A mm | B mm | C mm | D mm | E mm | G mm | L mm | |
CR-ES-JIS13 | 13 | 0.5 | 1 | 60 | 35 | 36 | 17 | 41 | 48 | 100.5 |
CR-ES-JIS16 | 16 | 0.94 | 1.5 | 72 | 43 | 40 | 23 | 55 | 60 | 124 |
CR-ES-JIS19 | 19 | 1.46 | 2.5 | 82 | 45 | 45 | 26 | 64 | 66 | 142 |
CR-ES-JIS22 | 22 | 2.21 | 5 | 93 | 53 | 49 | 29 | 73 | 75 | 170 |
CR-ES-JIS29 | 29 | 4.4 | 3 | 116 | 70 | 58 | 38 | 96 | – | 196 |
