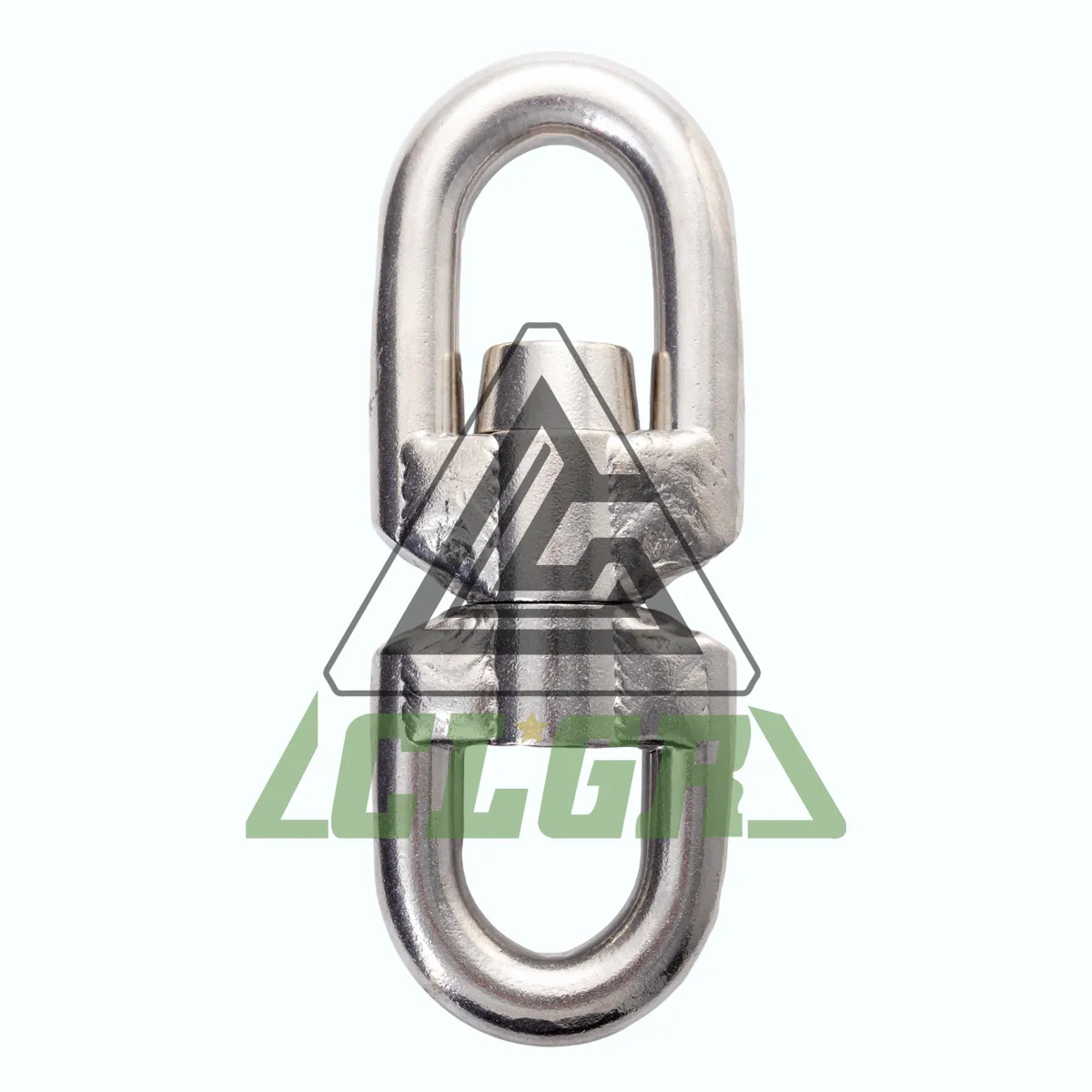

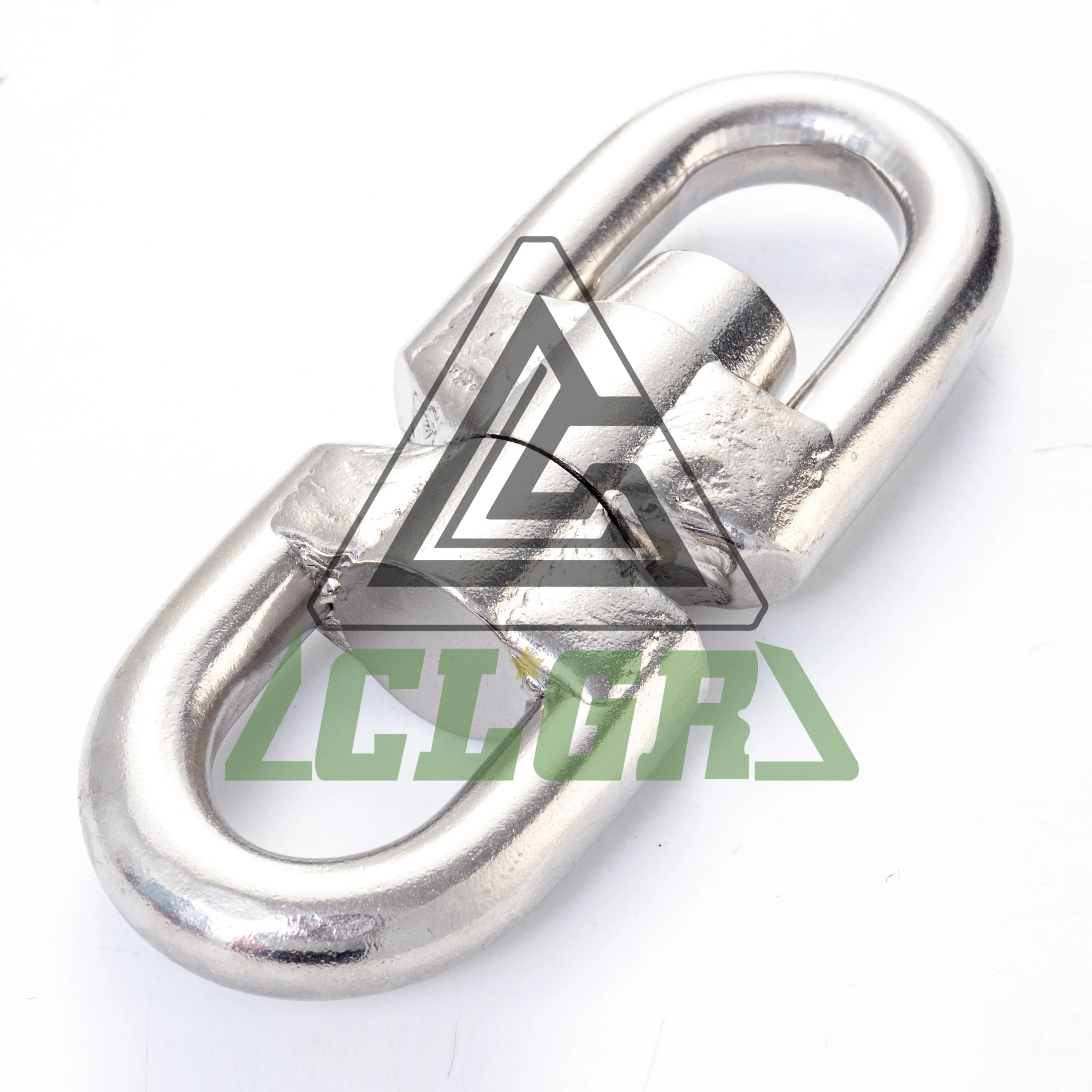

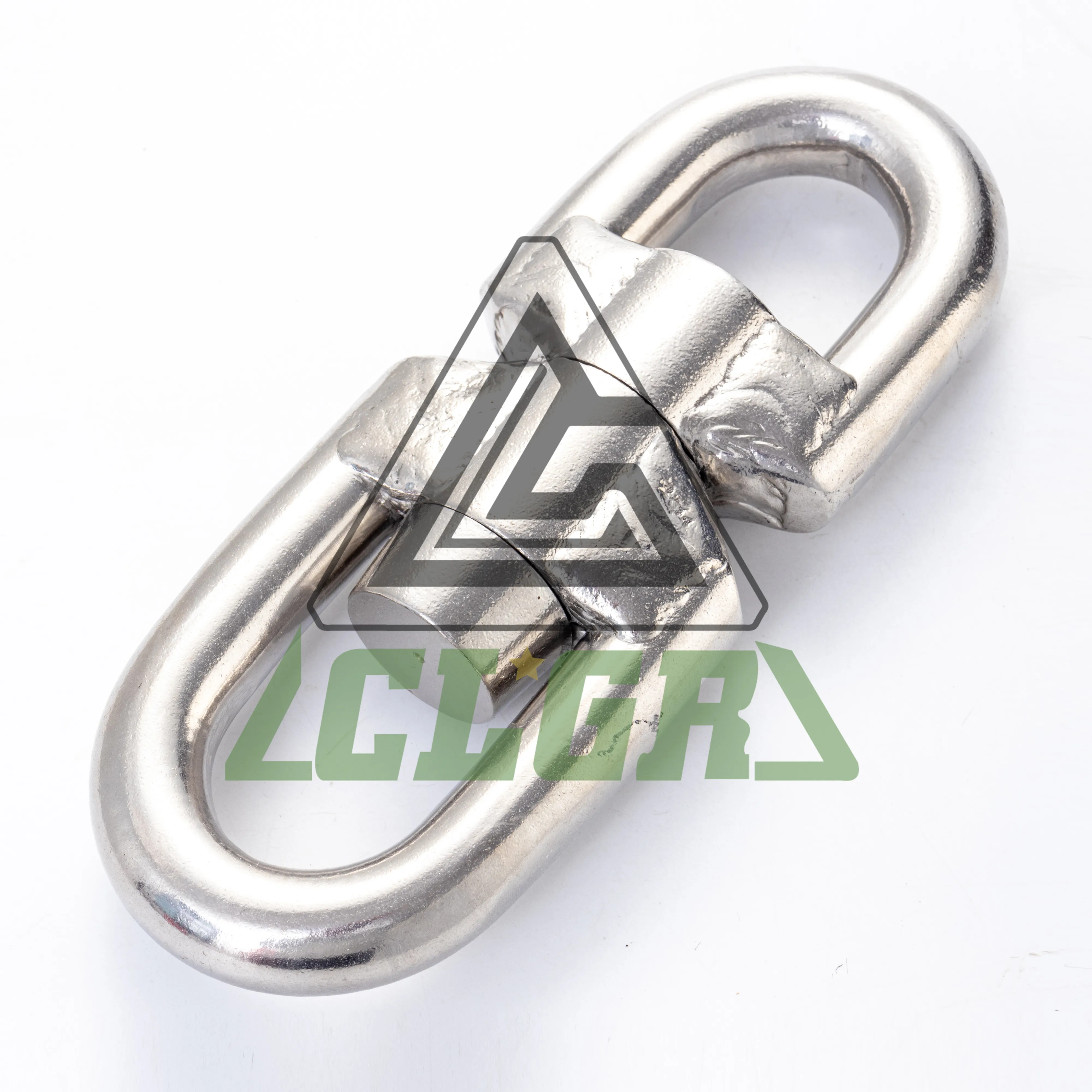

Stainless Steel Swivel dD Type, also known as chain swivel.
Our stainless steel swivel is manufactured from grade 304 or 316 stainless steel ideal for highly corrosive marine environments.
Stainless Steel Swivels are rated 5:1 which means that it has the ability to hold five times the amount of their safe work load.
All the swivels are tested and come with test certificates.
Available size in 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm. Special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
Size | 16mm 19mm 22mm 25mm 28mm 32mm 38mm |
WLL | 5:1 |
Material | Stainless Steel grade 304 or 316 |
Finish | Highly Polished |
Processing | Welding |
Important Note | *NOT TO BE USED FOR LIFTING* |

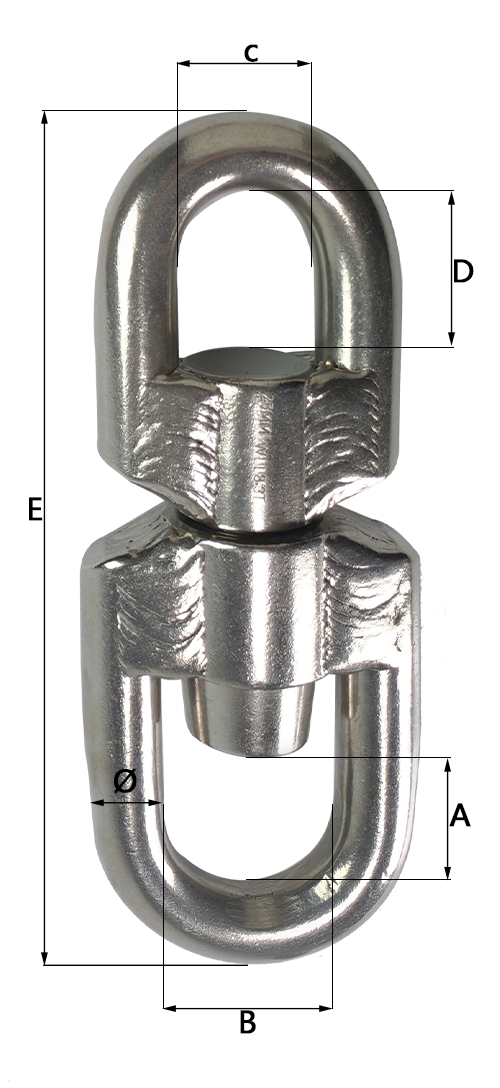

| Part No. | Size | WLL 5:1 | A | B | C | D | E | Weight |
| (mm) | (t) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| CRSSdD16 | 16 | 3.2 | 42~44 | 38~39 | 35~36 | 37~38 | 182 | 1.05 |
| CRSSdD19 | 19 | 4.7 | 42~45 | 39~40 | 38~39 | 40~42 | 205 | 1.8 |
| CRSSdD22 | 22 | 6.3 | 45~48 | 40~42 | 39.5~40.5 | 42~44 | 222 | 2.3 |
| CRSSdD25 | 25 | 8.3 | 52~55 | 52~54 | 42~44 | 51~53 | 278 | 3.8 |
| CRSSdD28 | 28 | 10 | 52~55 | 50~52 | 50~52 | 50~55 | 288 | 5.1 |
| CRSSdD32 | 32 | 12.5 | 60~65 | 55~60 | 55~60 | 50~55 | 320 | 7.35 |
| CRSSdD38 | 38 | 15.3 | 78~82 | 58~62 | 55~60 | 55~60 | 350 | 10.3 |
