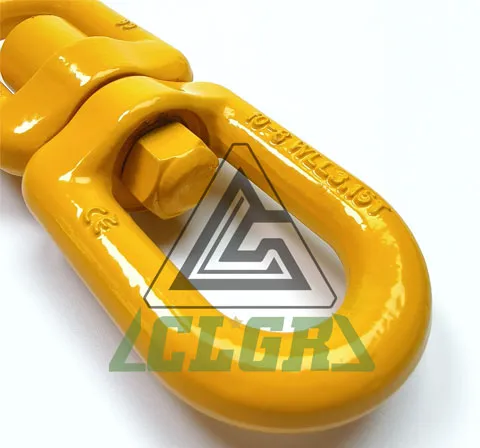

CLGR® Grade 80 Swivel with Roller Bearing

Name: CLGR® Grade 80 Swivel with Roller Bearing
Brand: CLGR®

CLGR® Grade 80 Swivel with Roller Bearing, also known as G80 Chain Swivel with Roller Bearing, Swivel Eye to Eye - G80 Ball Bearing Type, Tapered roller thrust bearing Swivels.

This G80 chain swivel with bearing is forged from superior alloy steel with powder coated finish and 4:1 safety factor certification, designed for use in the marine and building industries. It must be matched with slings and G80 chains that conform to the EN818-2 standard.

This g80 swivel prevents line twisting in demanding scenarios including offshore trawling net systems, vessel mooring configurations, and aquaculture cage anchoring operations where it maintains smooth rotation under full load conditions.

Available in 10mm, 13mm sizes with customizable color coding for equipment identification, all swivels come with test certificates to ensure compliance with international fishing gear standards.

Important safety note: While rated for 4:1 safety factor, never exceed the stated safe working load during operation.

To Get A Quote >

14 CLGR® Grade 80 Swivel with Roller Bearing

clgr grade 80 swivel with roller bearing suppliers

clgr grade 80 swivel with roller bearing factory

clgr grade 80 swivel with roller bearing exporter

clgr grade 80 swivel with roller bearing china

clgr grade 80 swivel with roller bearing manufacturers

 

Overview of CLGR® Grade 80 Swivel with Roller Bearing

Brand	CLGR®
Size	10mm, 13mm
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Heat Treatment
Surface Finish	Powder Coated
Note	Special Specifications and Marks Can be Customized

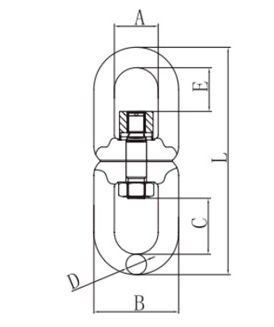

Specifications of CLGR® Grade 80 Swivel with Roller Bearing

Part No.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1	B±2	C±1.5	D±1	E±1.5	L±2
8-CR-S+B10	1.85	3.15	12.6	38	76	51	19	34.8	209
8-CR-S+B13	5.5	5.3	21.2	60	116	77	28	60	312

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
