CLGR® Grade 80 Forged Eye Swivel FO Type for Trawl

Name: CLGR® Grade 80 Forged Eye Swivel FO Type for Trawl
Brand: CLGR®

CLGR® Grade 80 Forged Eye Swivel FO Type, also known as G80 Chain Mooring Swivels, Trawling Swivel.

This G80 Eye Swivel FO Type is forged from superior alloy steel with powder coated finish and 4:1 safety factor certification, designed for use in the marine and building industries. It must be matched with slings and G80 chains that conform to the EN818-2 standard.

FO swivels are offered in two material options: regular steel and hot dip galvanized. Each unit undergoes rigorous testing and is supplied with corresponding test certificates to ensure quality compliance.

To Get A Quote >

15 CLGR® Grade 80 Forged Eye Swivel FO Type for Trawl

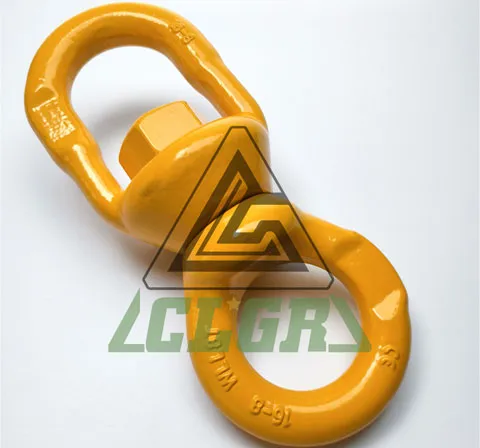

clgr grade 80 forged eye swivel fo type for trawl suppliers

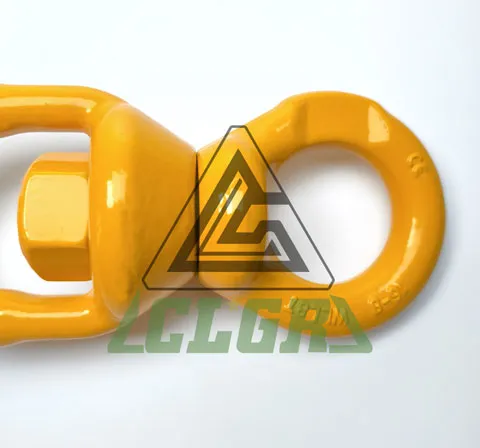

clgr grade 80 forged eye swivel fo type for trawl factory

clgr grade 80 forged eye swivel fo type for trawl exporter

clgr grade 80 forged eye swivel fo type for trawl china

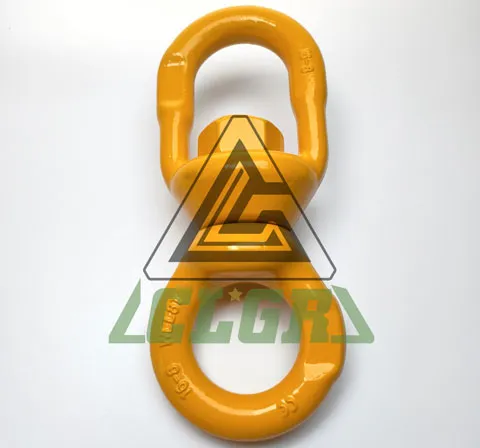

clgr grade 80 forged eye swivel fo type for trawl manufacturers

 

Overview of CLGR® Grade 80 Forged Eye Swivel FO Type for Trawl

Brand	CLGR®
Size	10mm, 13mm,16mm,19mm
Standard	European Type
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Heat Treatment
Surface Finish	Powder Coated
Note	Color Code can be Customized

Specifications of CLGR® Grade 80 Forged Eye Swivel FO Type for Trawl

Part No.	Weight (kg)	W.L.L. (T)	B.L. (T)	A±1.2	B±1.5	C±1	D±1	M	R±2.5
8-CRESFO-10	1.35	3.15	12.6	42	40	42	16	22	146
8-CRESFO-13	2.02	5.3	21.2	49	52.5	48	19	24	175
8-CRESFO-16	4.1	8.0	32	60	63	60	23	30	215
8-CRESFO-19	5.83	12.5	50	71	78	72	27	36	256

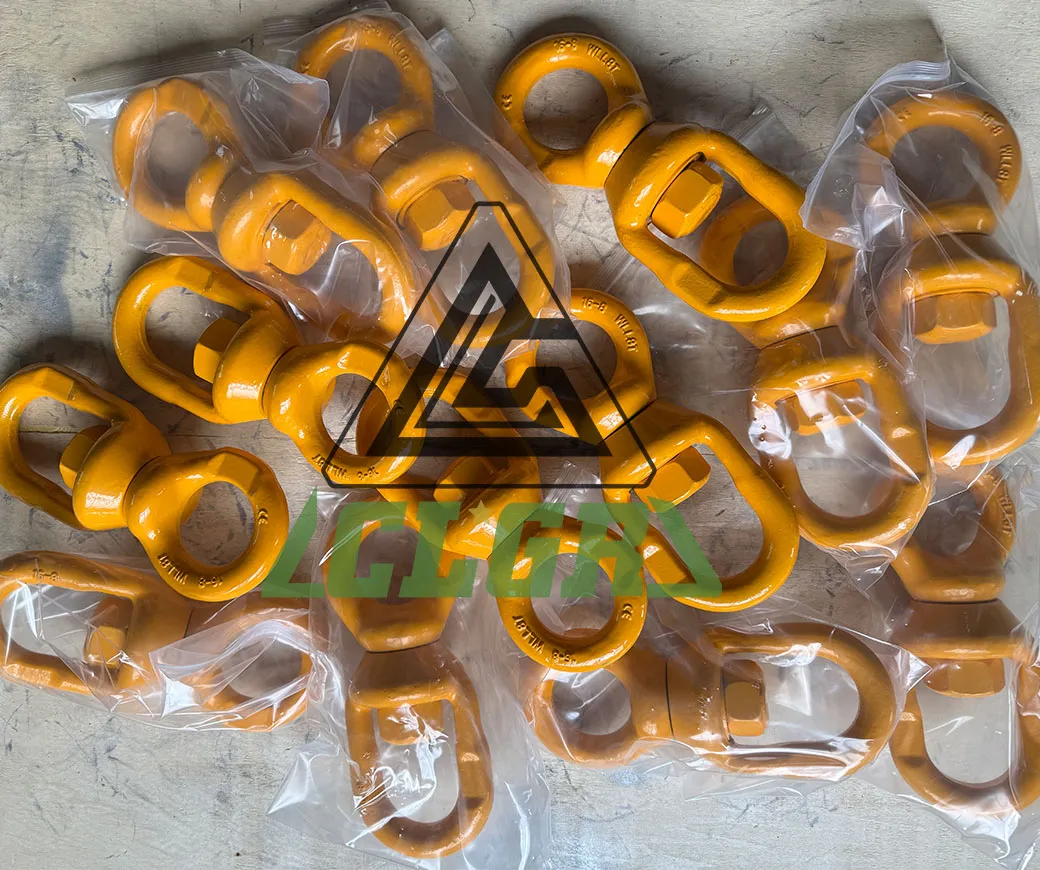

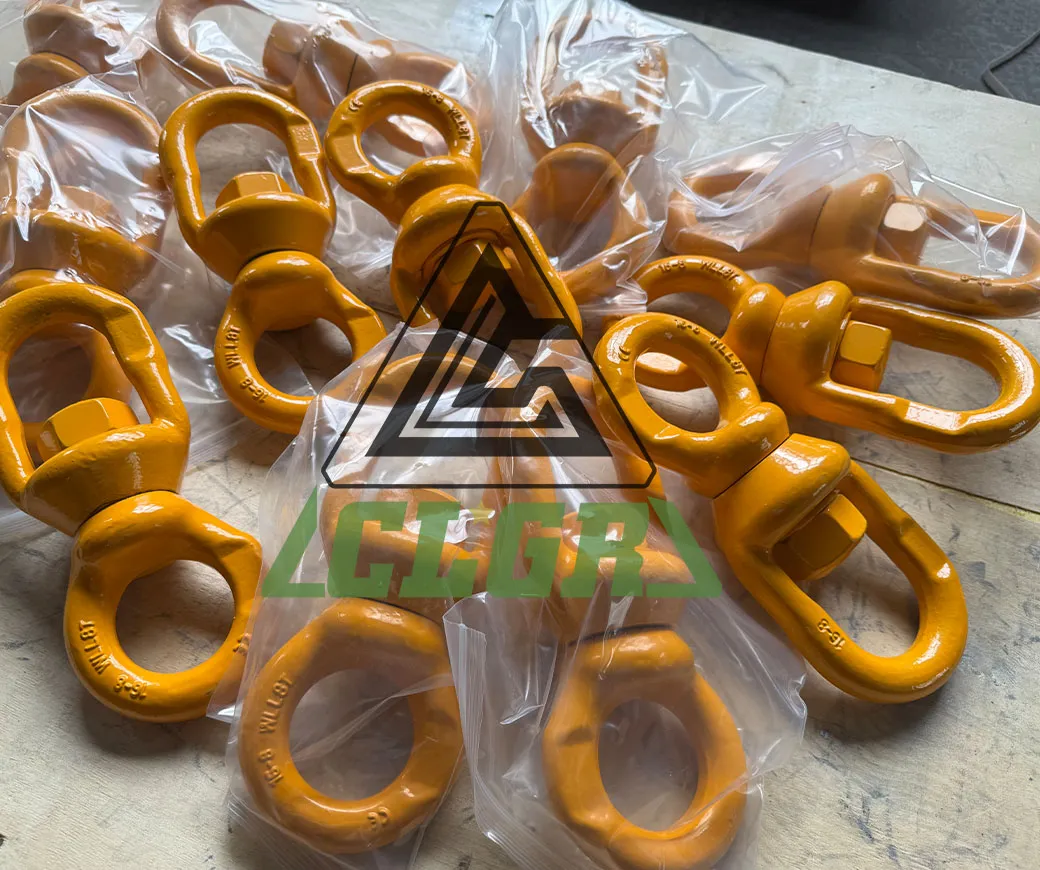

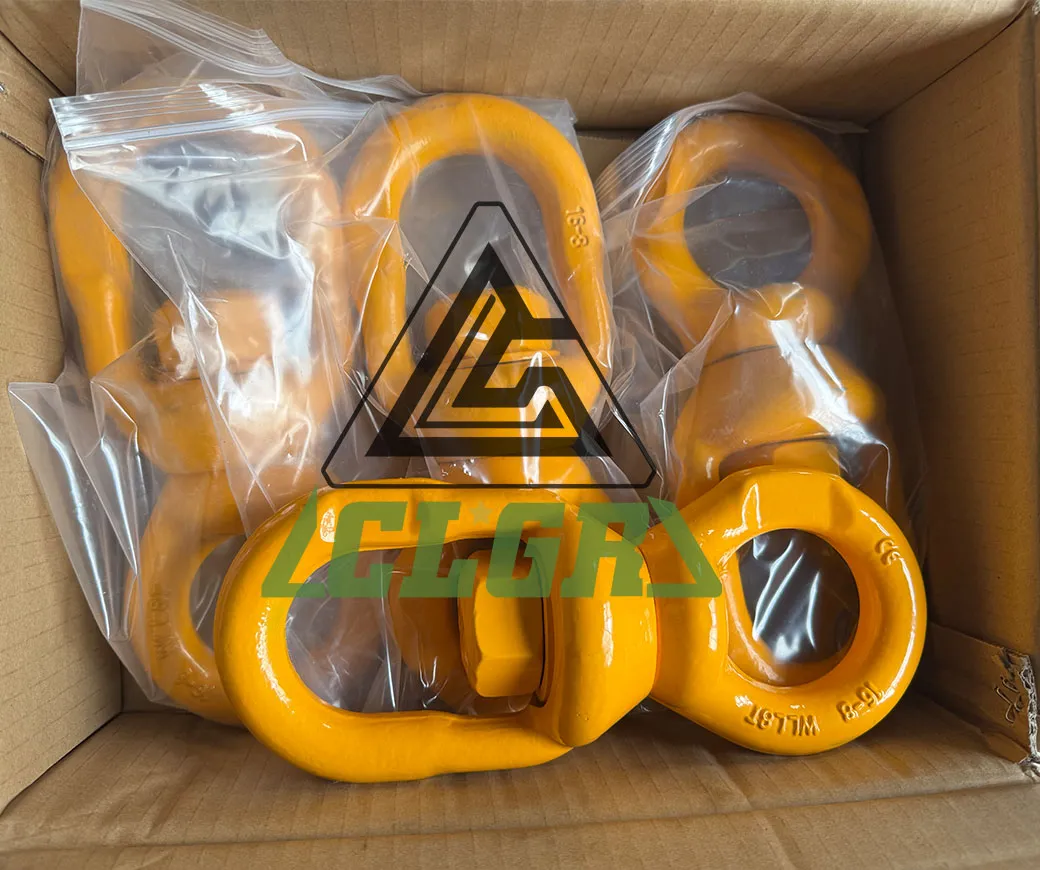

Bulk Photos of CLGR® Grade 80 Forged Eye Swivel FO Type for Trawl
