CLGR® Stainless Steel Flexible Swivel Longer - LF Type Trawling Gear

Name: CLGR® Stainless Steel Flexible Swivel Longer - LF Type Trawling Gear
Brand: CLGR®

CLGR® Trawling Gear Stainless Steel Flexible Swivel Longer LF Type, also known as Stainless Steel Swivel FLEX. and Stainless Steel Fishing Swivel.

Our Stainless Steel Flexible Swivel Longer LF Type is manufactured from grade 304 or 316 with high-polish, featuring a 5:1 safety factor for reliable performance in corrosive environments.

As the first choice for commercial fishing and trawling, our Longer-Type Stainless Steel Flexible Swivel keeps your ropes and chains twist-free for safer, smoother operations.

Available in sizes: 13mm,16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm. Special specifications and marks can be made according to customers' requirements.

To Get A Quote >

3 CLGR® Stainless Steel Flexible Swivel Longer LF Type Trawling Gear

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-cost

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-company

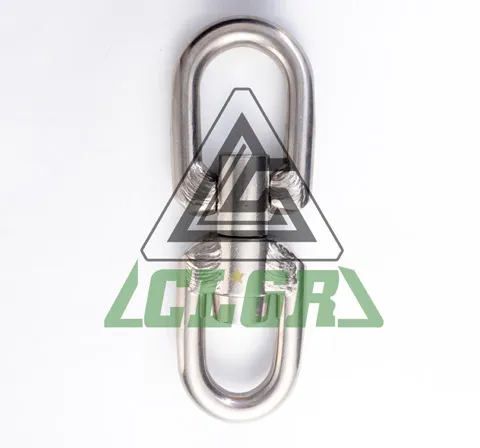

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-uses

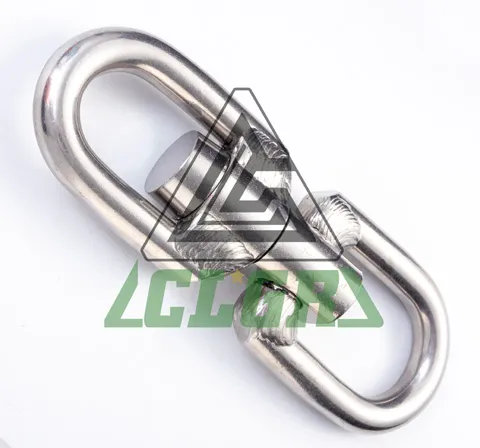

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-factories

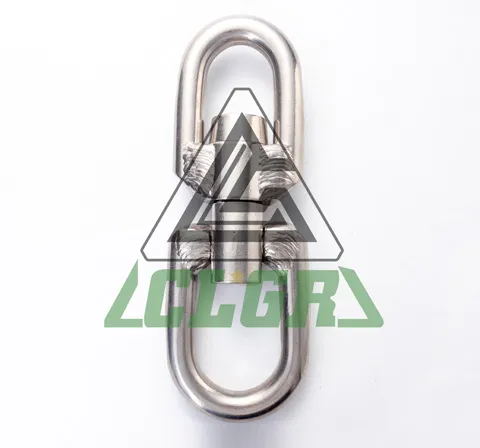

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-function

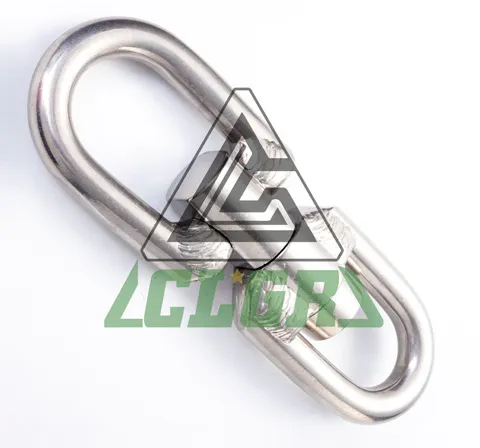

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-companies

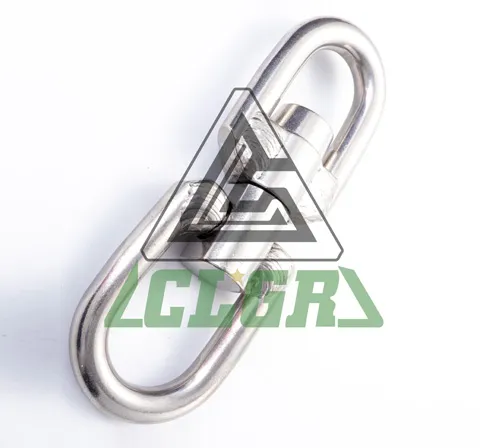

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-wholesale-supplier

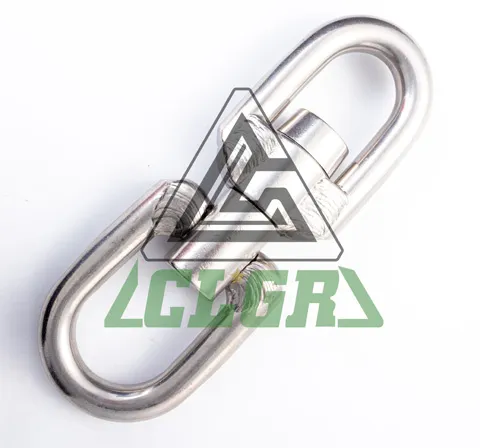

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-wholesale-manufacturer

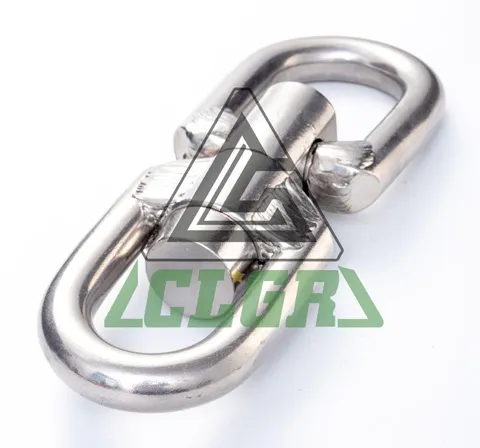

clgr-stainless-steel-flexible-swivel-longer-lf-type-trawling-gear-working-principle

 

Overview of CLGR® Stainless Steel Flexible Swivel Longer - LF Type Trawling Gear

Brand	CLGR®
Size	16mm, 19mm, 22mm, 25mm
WLL	5:1
Material	Stainless Steel grade 304 or 316
Finish	Highly Polished
Processing	Welding
Type	LF Type
Important Note	Not to be used for lifting

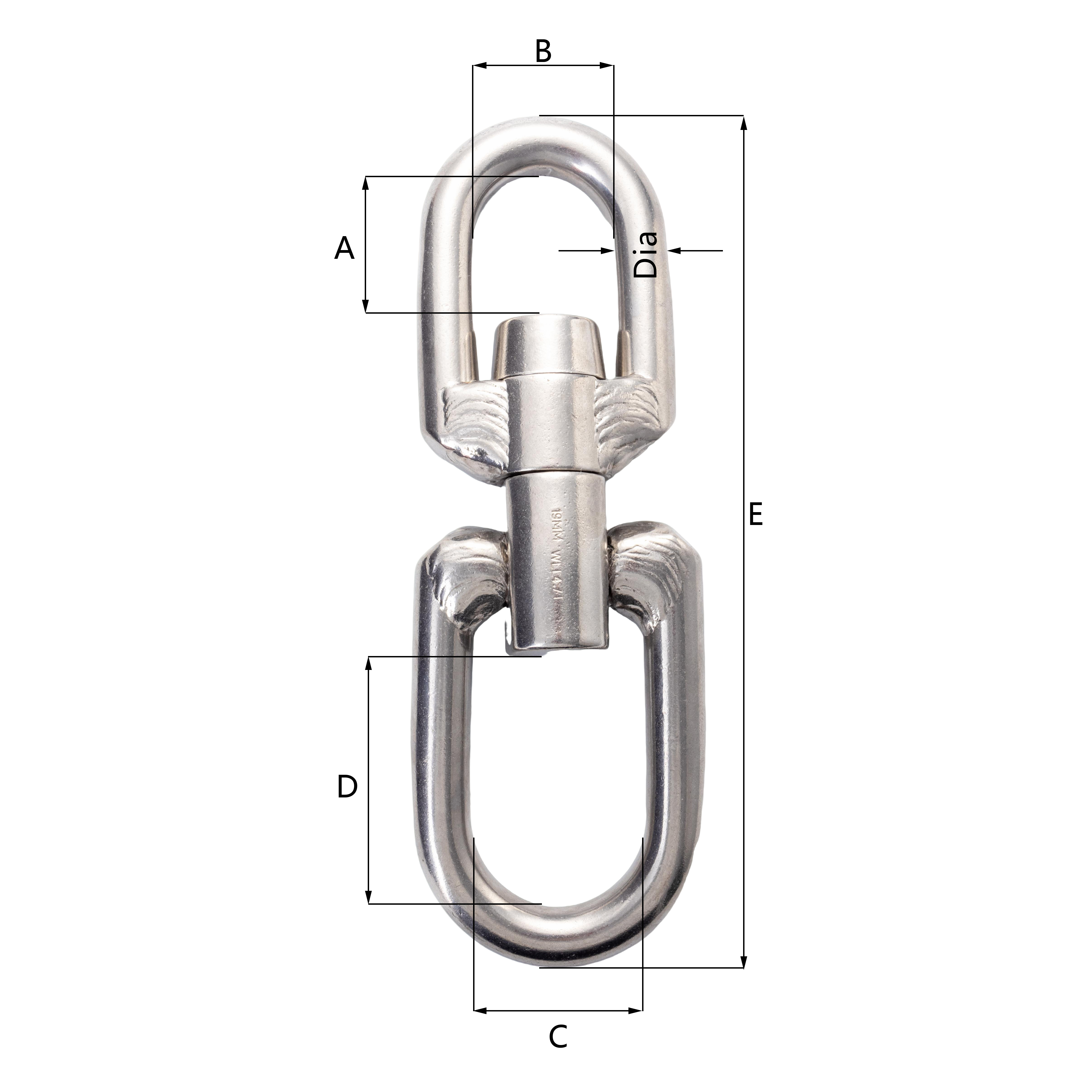

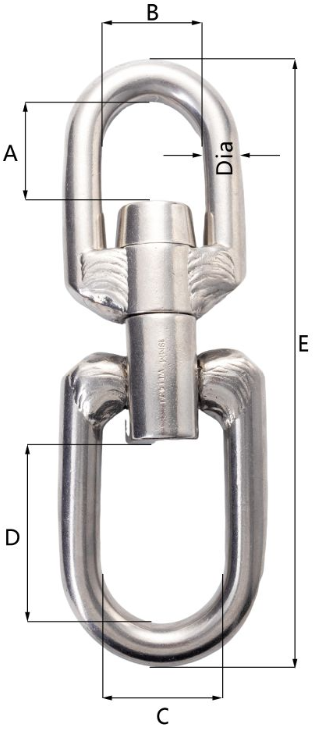

Specifications of CLGR® Stainless Steel Flexible Swivel Longer - LF Type Trawling Gear

Part No.	Dia.	WLL 5:1	A	B	C	D	E	Weight
	Dia.	WLL 5:1	A	B	C	D	E	Weight
	mm	ton	mm	mm	mm	mm	mm	kg
CRSSLF16	16	3.2	42	39	56	76	226	1.7
CRSSLF19	19	4.7	45	41	56	81	261	2.3
CRSSLF22	22	6.3	45	41	61	84	286	3.2
CRSSLF25	25	8.3	56	51	69	85	331	6
CRSSLF28	28	10,4	56	51	69	97	346	6,6
CRSSLF32	32	12	66	66	81	101	401	9,5
CRSSLF38	38	18	66	71	81	101	456	14,7

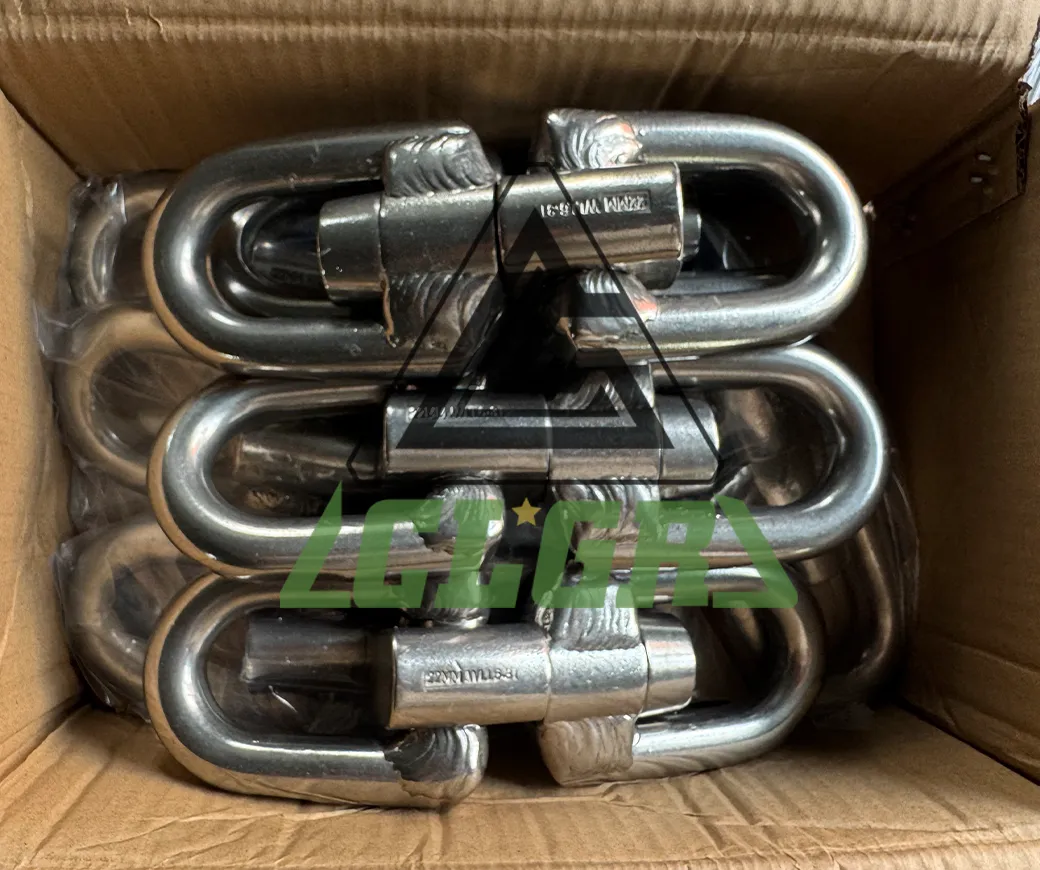

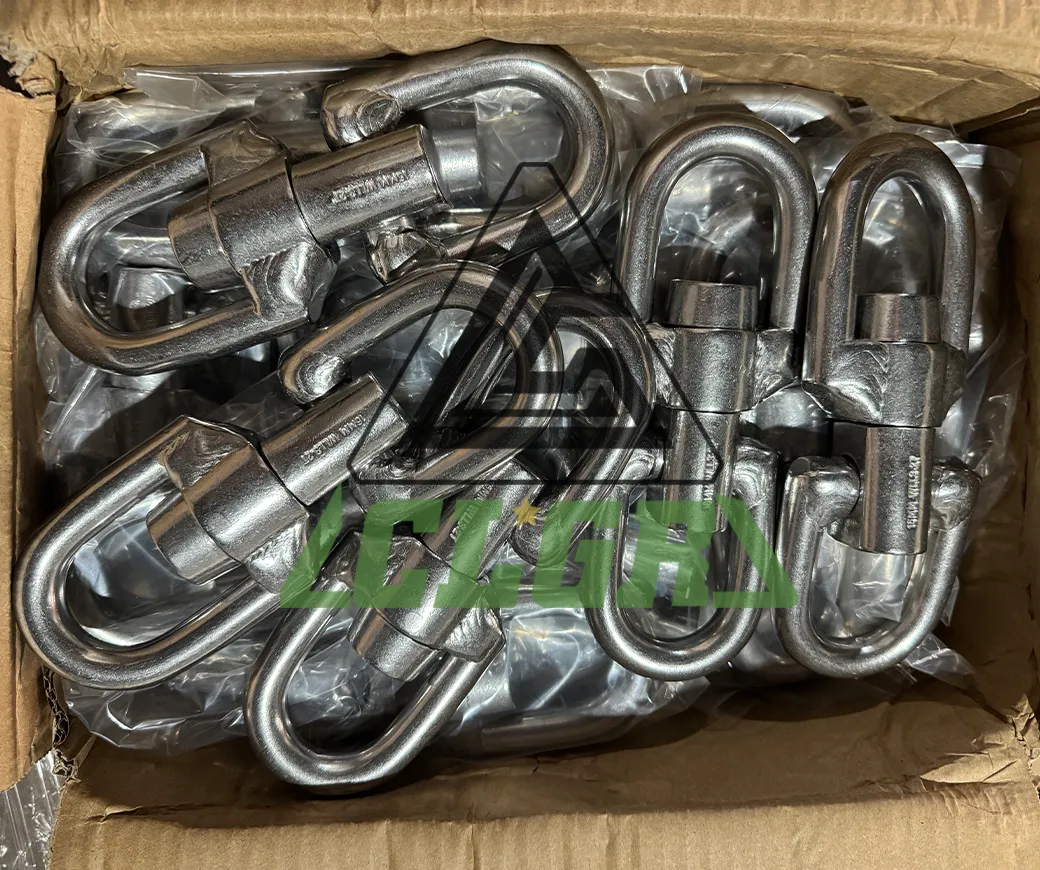

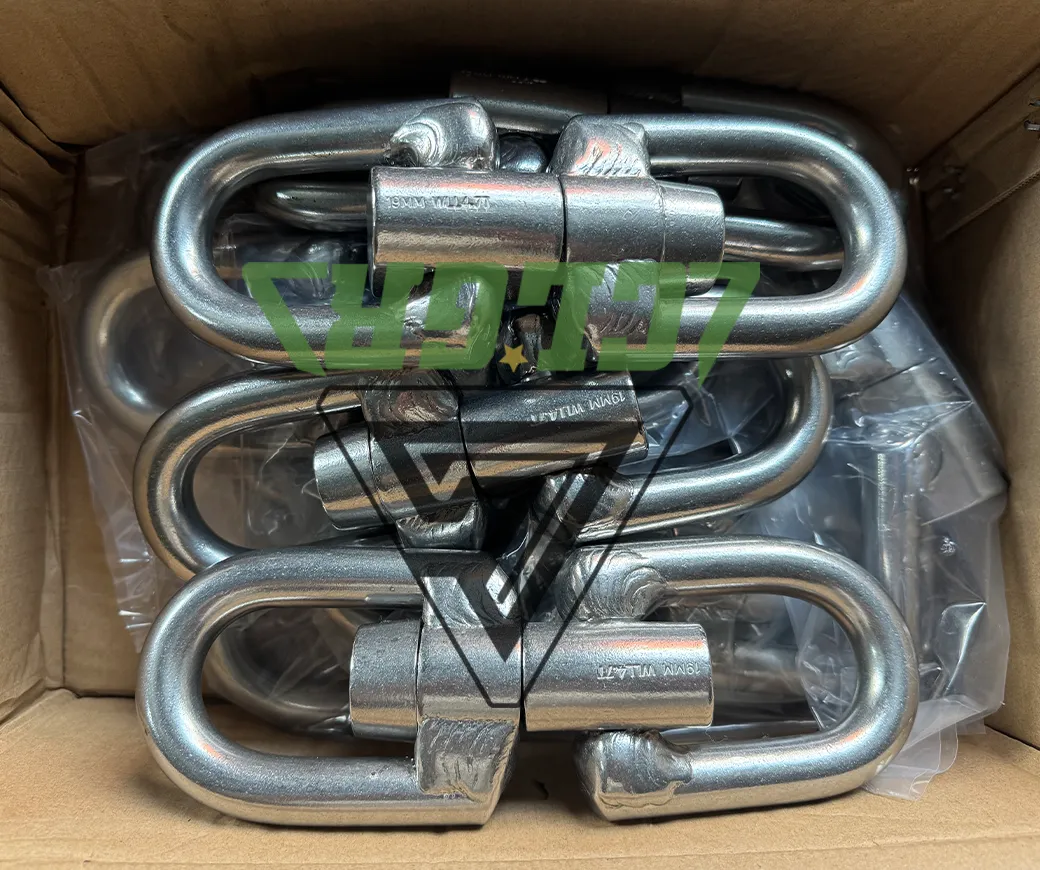

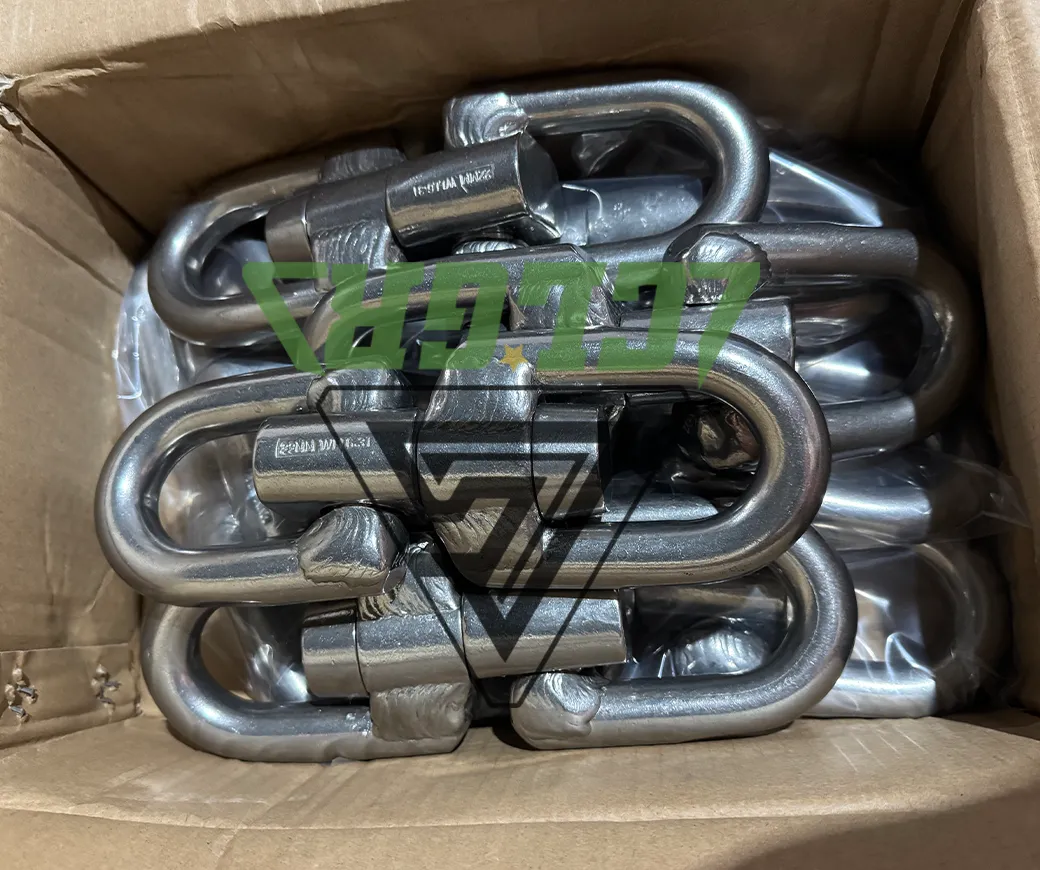

Bulk Photos of CLGR® Stainless Steel Flexible Swivel Longer - LF Type

clgr stainless steel flexible swivel longer lf type trawling gear china

clgr stainless steel flexible swivel longer lf type trawling gear china supplier
