CLGR® Chain Swivel WPD Type for Trawling, also called mooring swivel and trawling swivel.
Our Chain Swivel WPD Type is manufactured from super carbon steel. Their surface is treated with power coated ideal for highly corrosive marine environments, so it usable for fishing or rigging applications.
Its smooth rotation action reduces the risk of chain or rope knotting. Chain Swivel WPD Type is a positioning device and is not intended to swivel or rotate under load.
We offer 28mm, 32mm, 38mm sizes, also customize the size according to customer requirements.
All the swivels passed the test and come with test certificates.
| Brand | CLGR® |
Size | 28mm, 32mm, 38mm |
WLL | 5:1 |
Material | Super Carbon Steel |
Finish | Powder Coated |
Processing | Drop Forged |
Type | YFS Type |
Tips | Color Code can be Customized |

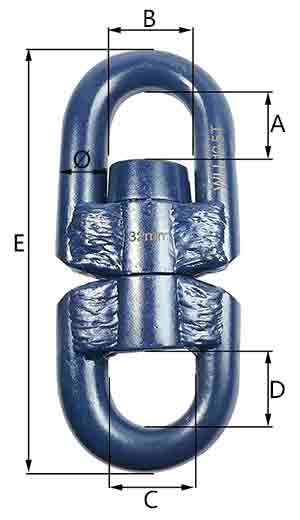

| Part No. | Size | WLL 5:1 | A | B | C | D | E | Weight |
| (mm) | (t) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| CRSWPD16 | 16mm | 3.2 | 42~44 | 38~39 | 35~36 | 37~38 | 182 | 1.05 |
| CRSWPD19 | 19mm | 4.7 | 42~45 | 39~40 | 38~39 | 40~42 | 205 | 1.8 |
| CRSWPD22 | 22mm | 6.3 | 45~48 | 40~42 | 39.5~40.5 | 42~44 | 222 | 2.3 |
| CRSWPD25 | 25mm | 8.3 | 52~55 | 52~54 | 42~44 | 51~53 | 278 | 3.8 |
| CRSWPD28 | 28mm | 10 | 52~55 | 50~52 | 50~52 | 50~55 | 288 | 5.1 |
| CRSWPD32 | 32mm | 12.5 | 60~65 | 55~60 | 55~60 | 50~55 | 320 | 7.35 |
| CRSWPD38 | 38mm | 15.3 | 78~82 | 58~62 | 55~60 | 55~60 | 350 | 10.3 |
