CLGR® Stainless Steel Chain Shackle with Square Pin, also known as D/Dee Shackle Stainless Steel with Square Head Pin.
Chain Shackle Square Pin is made of stainless steel 304 or 316 with polished surface. Marine grade 316 stainless steel resists most chemicals particular has the best corrosion resistance. Typical applications for these shackles for sale are used to connect chains, wire ropes and slings. CLGR® Stainless Steel Chain Shackle is forged for extreme strength and durability, and is easy to install and remove.
These shackles for sale are available in a range of sizes, including 1/4”, 5/16”, 3/8”, 15/32”special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
| Size | 1/4”, 5/16”, 3/8”, 15/32” |
| Standard | European Type |
| Material | Stainless Steel grade 304 or 316 |
| Surface Finish | Powder Coating, Electrophoretic coating |
| Processing | Forged, Casting, Stamping |
| Important Note | Not suitable for lifting applications |

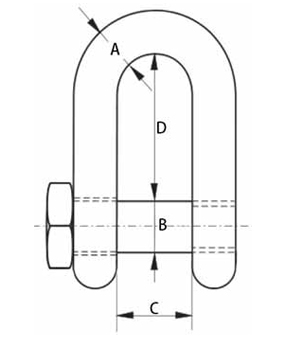

| Part No. | SIZE | D | C | A | B | MBL |
| mm | kN | |||||
| LG-SS-TDS+SHP-04 | 4 | 16 | 8 | 4 | 4 | 5.8 |
| LG-SS-TDS+SHP-05 | 5 | 20 | 10 | 5 | 5 | 9.1 |
| LG-SS-TDS+SHP-06 | 6 | 24 | 12 | 6 | 6 | 13.2 |
| LG-SS-TDS+SHP-08 | 8 | 32 | 16 | 8 | 8 | 23.7 |
| LG-SS-TDS+SHP-10 | 10 | 40 | 20 | 10 | 10 | 37.3 |
| LG-SS-TDS+SHP-12 | 12 | 48 | 24 | 12 | 12 | 54.9 |
| LG-SS-TDS+SHP-14 | 14 | 56 | 28 | 14 | 14 | 74.8 |
| LG-SS-TDS+SHP-16 | 16 | 64 | 32 | 16 | 16 | 97.7 |
| LG-SS-TDS+SHP-18 | 18 | 72 | 36 | 18 | 18 | 136.1 |
| LG-SS-TDS+SHP-20 | 20 | 76 | 40 | 20 | 20 | - |
| LG-SS-TDS+SHP-22 | 22 | 88 | 44 | 22 | 22 | 184.7 |
| LG-SS-TDS+SHP-25 | 25 | 100 | 50 | 25 | 25 | - |
| LG-SS-TDS+SHP-28 | 28 | 112 | 56 | 28 | 28 | 223.8 |
| LG-SS-TDS+SHP-32 | 32 | 128 | 64 | 32 | 32 | 353.6 |
| LG-SS-TDS+SHP-36 | 36 | 144 | 72 | 36 | 36 | - |
| LG-SS-TDS+SHP-38 | 38 | 152 | 76 | 38 | 38 | - |
