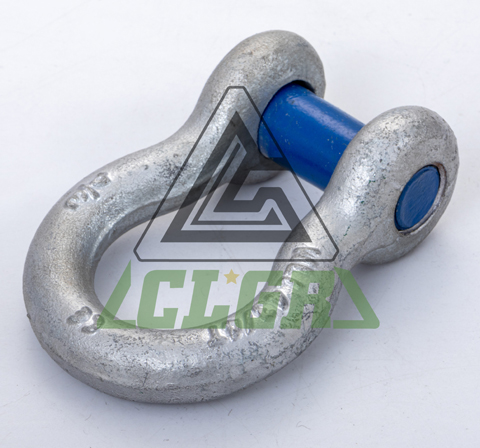

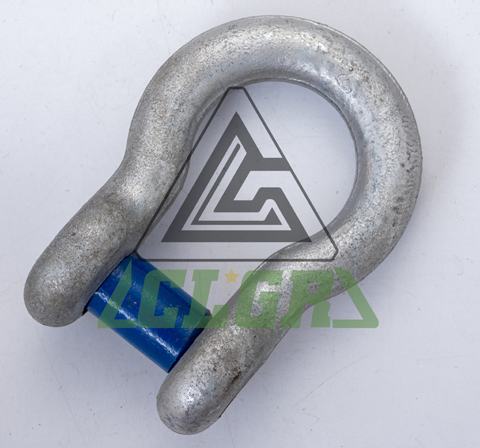

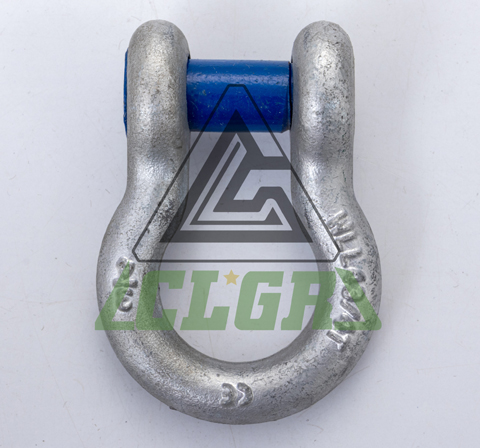

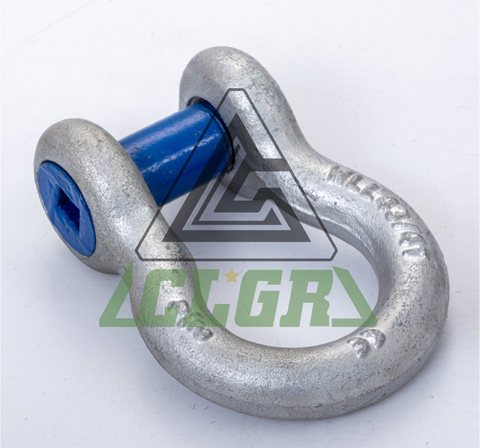

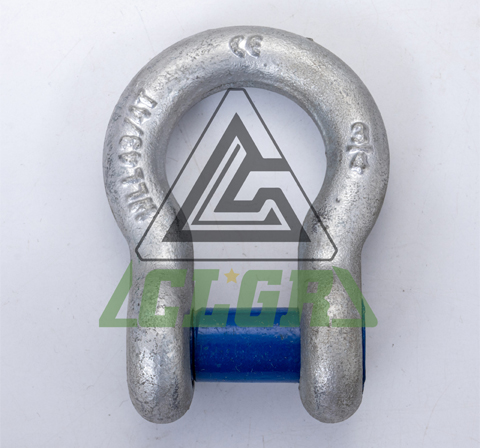

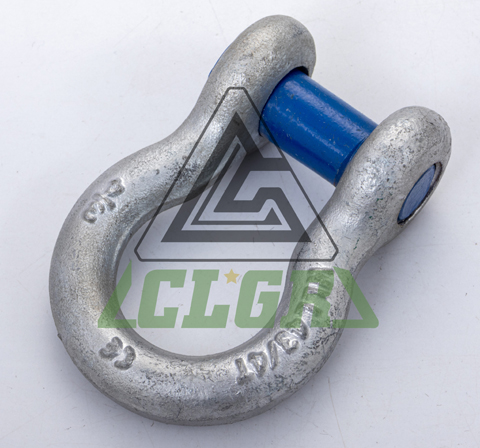

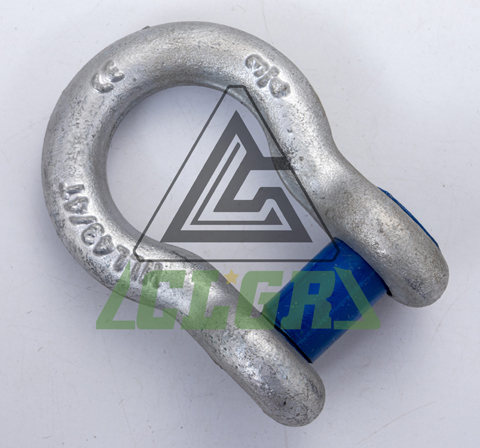

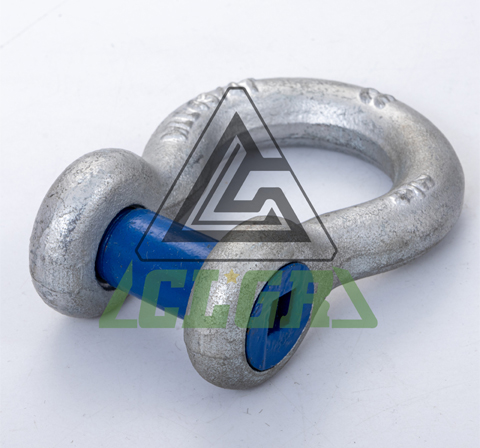

CLGR® High Tensile Bow Shackle with Square Sunken Head Pin for Trawling

Name: CLGR® High Tensile Bow Shackle with Square Sunken Head Pin for Trawling
Brand: CLGR®

CLGR® High Tensile Bow Shackle with Square Sunken Head Pin, also known as Anchor Shackle Square Sunken Head Pin, Shackles Square Sunken Hole Bow Type and Square Sunken Hole Bow Shackle.

Certified to U.S. Federal Specification, this high-tensile bow shackle is engineered for heavy-duty marine and trawling applications. Forged from 45# steel with an alloy steel square sunken hole pin, it undergoes quenching and tempering for superior strength and durability, achieving a 6:1 safety factor for reliable performance under extreme loads.

The shackle is available in self-colored, zinc-plated, or hot-dip galvanized finishes, providing excellent corrosion resistance for harsh marine environments. Its unique square sunken hole pin design ensures secure connections while preventing rope snagging and tangling during trawl operations.

Ideal for offshore fishing, marine rigging, and commercial trawling applications, this bow shackle is offered in sizes from 7/16" to 1-3/8". Custom specifications and identification marks can be provided to meet specialized project requirements.

To Get A Quote >

CLGR® High Tensile Bow Shackle with Square Sunken Head Pin for Trawling

 

Overview of High Tensile Bow Shackle with Square Sunken Head Pin for Trawling

Brand	CLGR®
Size	7/16”,1/2”,5/8”,3/4”,7/8”,1”,1-1/8”,1-1/4“,1-3/8”
Shackle Shape	Bow Shackle
Pin	Square Sunken Hole Pin
Standard	U.S. Federal Specification
Safety Factor	6:1
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel
Surface Finish	Self-colored / Zinc plated, Hot dipped galvanized
Processing	Drop Forged, Heat Treatment
Important Note	Not suitable for lifting applications

Specification of High Tensile Bow Shackle with Square Sunken Head Pin for Trawling

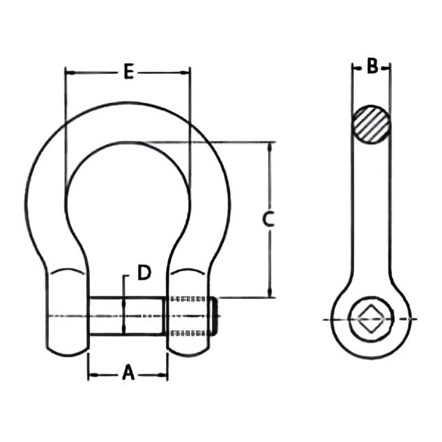

drawing-clgr-high-tensile-bow-shackle-square-sunken-head-pin-for-trawling

Part No.	Size	WILL	A mm	B mm	C mm	D mm	E mm	Weight kg
Part No.	Size	WILL	A mm	B mm	C mm	D mm	E mm	Weight kg
CR-BS-Sunken716	7/6''	1.5	18.5	11	43	12	29	0.25
CR-BS-Sunken12	1/2"	2	22	13.5	51	16	32	0.44
CR-BS-Sunken58	5/8''	3.25	27	16	64	19	43	0.79
CR-BS-Sunken34	3/4"	4.75	31	19	76	22	51	1.26
CR-BS-Sunken78	7/8"	6.5	36	22	83	25	58	1.88
CR-BS-Sunken01	1''	8.5	43	25	95	28	68	2.78
CR-BS-Sunken118	1-1/8"	9.5	47	28	108	32	75	3.88
CR-BS-Sunken114	1-1/4"	12	51	32	115	35	83	5.26
CR-BS-Sunken138	1-3/8"	13.5	57	35	133	38	92	6.94
