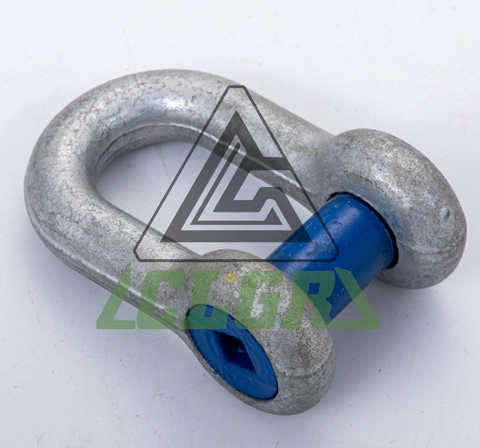

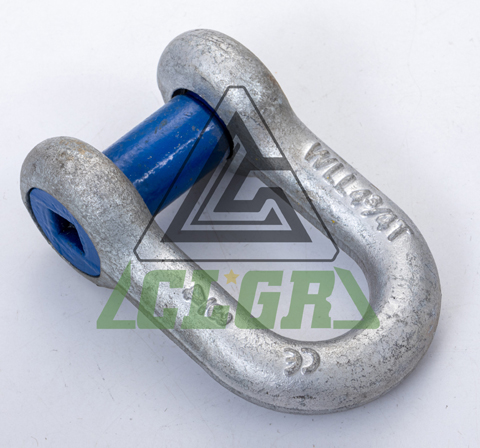

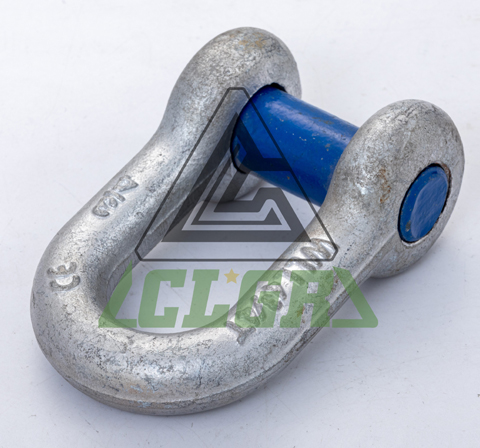

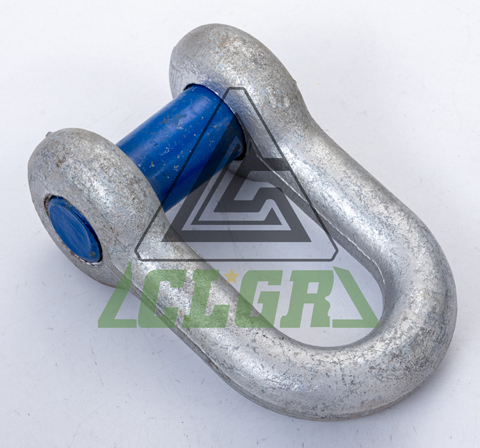

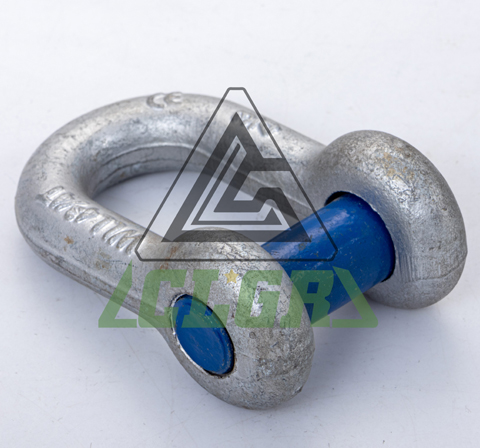

CLGR® High Tensile Chain Shackle with Square Sunken Head Pin Trawling

Name: CLGR® High Tensile Chain Shackle with Square Sunken Head Pin Trawling
Brand: CLGR®

CLGR® High Tensile Chain Shackle with Square Sunken Head Pin, also known as Shackles square sunken hole Dee type, D/Dee Shackle Square Sunken Head Pin and Square Sunken Hole Pin Shackle.

Manufactured to U.S. Federal Specifications using superior-grade materials that meet international quality standards, this high-tensile Dee shackle features a unique square sunken hole screw pin design that eliminates protruding parts to prevent damage and entanglement in fishing nets. The internal chamber hides threads and significantly reduces rope wear during operation.

Certified with a 6:1 safety factor, it is drop-forged from 45# steel with an alloy steel pin, then quenched and tempered for extreme durability in marine environments.

Available in self-colored, zinc-plated, or hot-dip galvanized finishes for superior corrosion resistance.

Specifically designed for single-leg lifting systems in trawling and marine applications, this shackle is assembled with a dedicated sunken hole key for secure connections.

Offered in standard sizes in 7/16", 1/2", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", with custom specifications and identification marks available to meet specialized requirements.

To Get A Quote >

CLGR® High Tensile Chain Shackle with Square Sunken Head Pin Trawling

 

Overview of High Tensile Chain Shackle with Square Sunken Head Pin

Brand	CLGR®
Size	7/16”,1/2”,5/8”,3/4”,7/8”,1”,1-1/8”,1-1/4“,1-3/8”
Shackle Shape	Dee Shackle (Straight Shackle)
Pin	Square Sunken Hole Pin
Standard	U.S. Federal Specification
Safety Factor	6:1
Material	Body: 45# Steel Screw Pin: Alloy Steel
Surface Finish	Self-colored / Zinc plated / Hot dipped galvanized.
Processing	Drop Forged, Quenched and Tempered
Important Note	Not suitable for lifting applications

Specification of High Tensile Chain Shackle with Square Sunken Head Pin

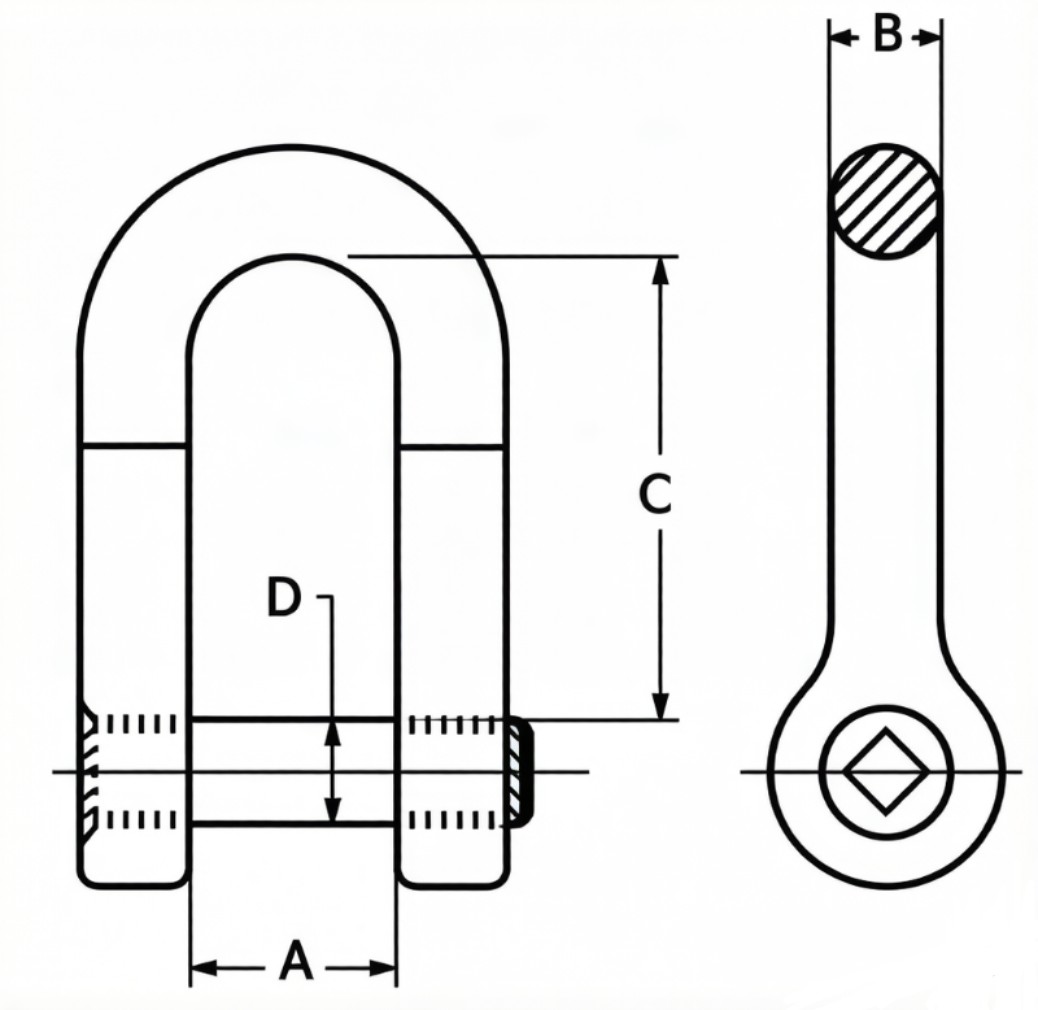

clgr-drawing-high-tensile-chain-shackle-square-sunken-head-pin-for-trawling

Part No.	Size	WILL	A	B	C	D	Weight
Part No.	Size	WILL	mm	mm	mm	mm	kg
CR-DS-Sunken716	7/16"	1.5	18.5	11	37	12	0.24
CR-DS-Sunken12	1/2”	2	22	13.5	43	16	0.39
CR-DS-Sunken58	5/8"	3.25	27	16	51	19	0.68
CR-DS-Sunken34	3/4"	4.75	31	19	59	22	1.1
CR-DS-Sunken78	7/8"	6.5	36	22	73	25	1.6
CR-DS-Sunkeno1	1"	8.5	43	25	85	28	2.35
CR-DS-Sunken118	1-1/8"	9.5	47	28	go	32	3.5
CR-DS-Sunken114	1-1/4"	12	51	32	94	35	4.6
CR-DS-Sunken138	1-3/8"	13.5	57	35	15	38	6
